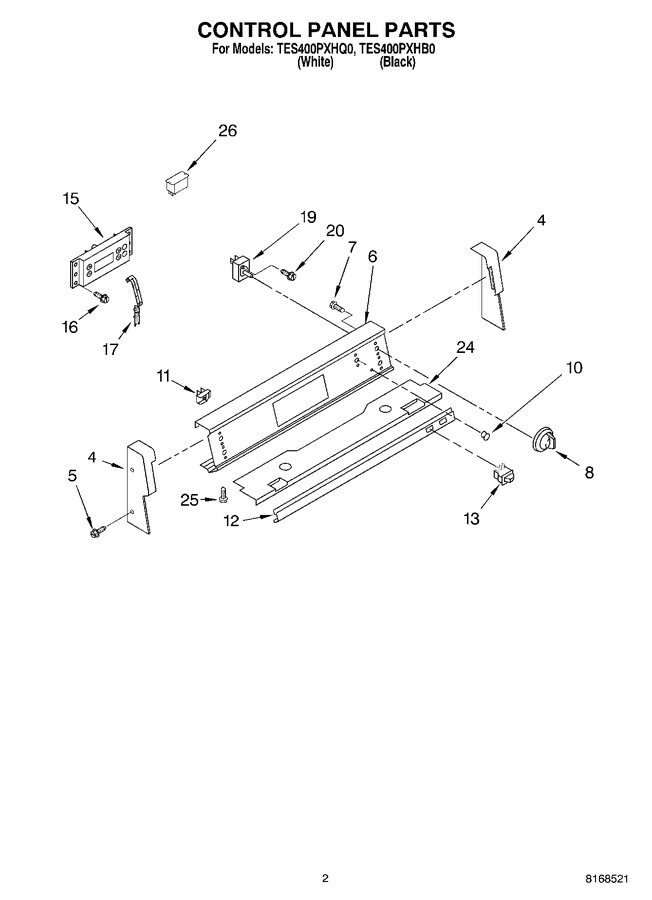

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	9752422FB		End Cap (black, Left)		Appelez-nous	-
4	9752423FB		End Cap (black, Right)		Appelez-nous	-
4	9752423FW		End Cap (white (right))		Appelez-nous	-
4	9752422FW		End Cap (white (left)		Appelez-nous	-
5	9780265		Screw, 10-16 X 3/8		Appelez-nous	-
6	9754081PB		Panel, Control (black)		Appelez-nous	-
6	9754081PW		Panel, Control (white)		Appelez-nous	-
7	9780852		Screw, 8-18 X 3/8		Appelez-nous	-
8	WP9752405FW		Knob, Control (white)   (Replaces: 9752405FW)				$ 22.20
8	9752405FB		Knob, Control (black)				$ 17.20
10	WP9750343		Lens, Indicator   (Replaces: 9752589)			Immediately	$ 5.71
11	313102		Light Indicator				$ 66.48
12	9752440PB		Trim Strip (black)		Appelez-nous	-
12	9752440PW		Trim Strip (white)		Appelez-nous	-
13	WPW10163899		Switch, Rocker Illuminated (black)   (Replaces: 9753261FB)				$ 89.39
13	9753692FW		Switch, Rocker Illuminated (white)		Appelez-nous	-
13	9753692FB		Switch, Rocker Illuminated (black On/off)		Appelez-nous	-
13	9753261FW		Switch, Rocker Illuminated (white)		Appelez-nous	-
15	9754130CB		Timer (black)		Appelez-nous	-
15	9754130CW		Timer (white)		Appelez-nous	-
16	9780272		Screw, 10-16 X 1/2		Appelez-nous	-
17	9781754		Bracket, Timer		Appelez-nous	-
19	WP9750639		Switch, Infinite (1800w)   (Replaces: 9750639)			Immediately	$ 152.66
19	WP9750641		Switch, Infinite (2400w)   (Replaces: 9750641)			Immediately	$ 103.02
19	WP9750638		Switch, Infinite (1500w)   (Replaces: 9750638)			Immediately	$ 113.89
20	WP3400882		Screw, 3-32 X 3/16   (Replaces: 3400816)			Immediately	$ 7.19
24	9752439		Base, Console		Appelez-nous	-
25	WP3400832		Screw, 8-18 X 1/2   (Replaces: 3196168)			Immediately	$ 7.75
26	9752149		Relay, Dpst		Appelez-nous	-
