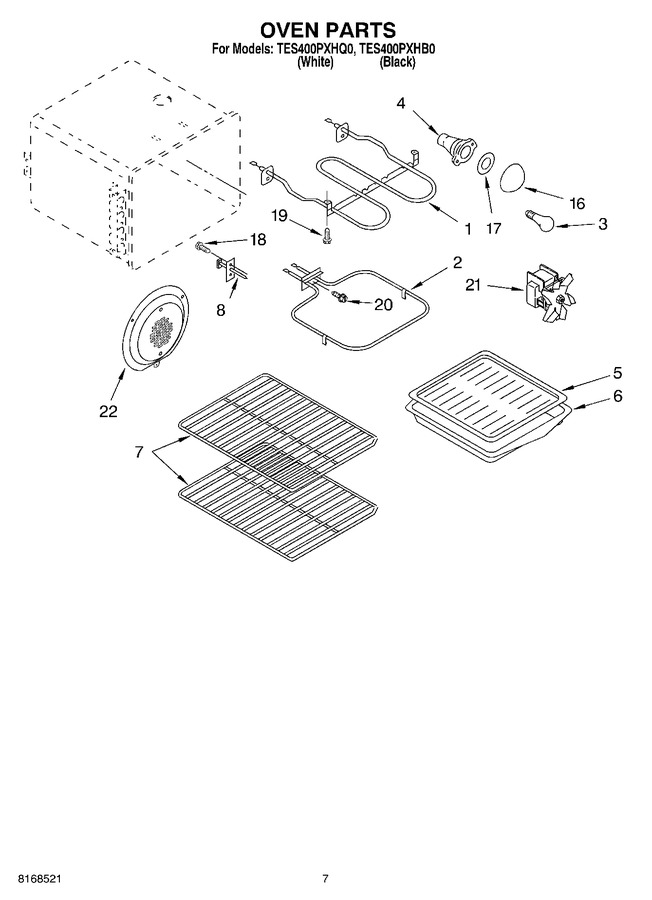

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9780993		Element, Broil		Appelez-nous	-
2	UB413		Element, Bake   (Replaces: 9750213)			Immediately	$ 52.49
3	40A15		Bulb, Light   (Replaces: 8935)			Immediately	$ 1.98
4	W11594027		Socket, Light   (Replaces: 9781050)			Immediately	$ 87.01
5	4396923		Grill, Broiler   (Replaces: 420104GM)			Immediately	$ 60.71
6	4396923		Pan, Broiler   (Replaces: 420101GM)			Immediately	$ 60.71
7	9750823		Rack, Convection		Appelez-nous	-
8	8053344		Switch, Safety				$ 58.13
16	WP9781049		Lens, Light   (Replaces: 9781049)			Immediately	$ 79.92
17	WP3184533		Gasket, Len`s   (Replaces: 3184533)			Immediately	$ 8.59
18	9780265		Screw, 10-16 X 3/8		Appelez-nous	-
19	9781509		Screw, 8-32 X 3/8		Appelez-nous	-
20	340184		Screw, 10-16 X 1.5				$ 14.11
21	9781543		Fan Assembly				$ 142.09
22	313660		Clip, Wire		Appelez-nous	-
22	WP681414		Screw, Grounding   (Replaces: 690989)			Immediately	$ 8.47
22	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
22	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
22	9754079		Harness, Wire (main)		Appelez-nous	-
22	9781933		Harness, Wire (cooktop Ceran)		Appelez-nous	-
22	9752612		Harness, Wire (door Switch)		Appelez-nous	-
22	3169573		Strap, Ground		Appelez-nous	-
22	WPW10339879		Wire Tie   (Replaces: 20082084)				$ 8.30
22	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
22	9751904G		Baffle, Convection		Appelez-nous	-
22	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
22	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
22	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
22	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
22	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
22	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
22	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
22	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
22	242831		Wire (14 Ga. 200 C Red)				$ 342.23
22	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
22	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
22	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
22	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
22	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
22	285006		Paint, Spray 13 Oz. (black)				$ 59.89
22	350942		Primer (white)   (Replaces: 206922)				$ 94.14
22	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
22	978883		Almond (uncut)		Appelez-nous	-
22	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
22	8212471		Touch-up Self-clean(1/2 Pt)   (Replaces: 242756)			Immediately	$ 87.22
22	261582		Grease		Appelez-nous	-
22	9781096		Cleaner, Cream		Appelez-nous	-
22	9752848		Anti-tip Kit		Appelez-nous	-
22	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 55.47
22	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 55.47
22	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
22	9752771		Harness, Wire (control)		Appelez-nous	-
22	350956		Paint, Spray 13 Oz. (almond)				$ 54.01
