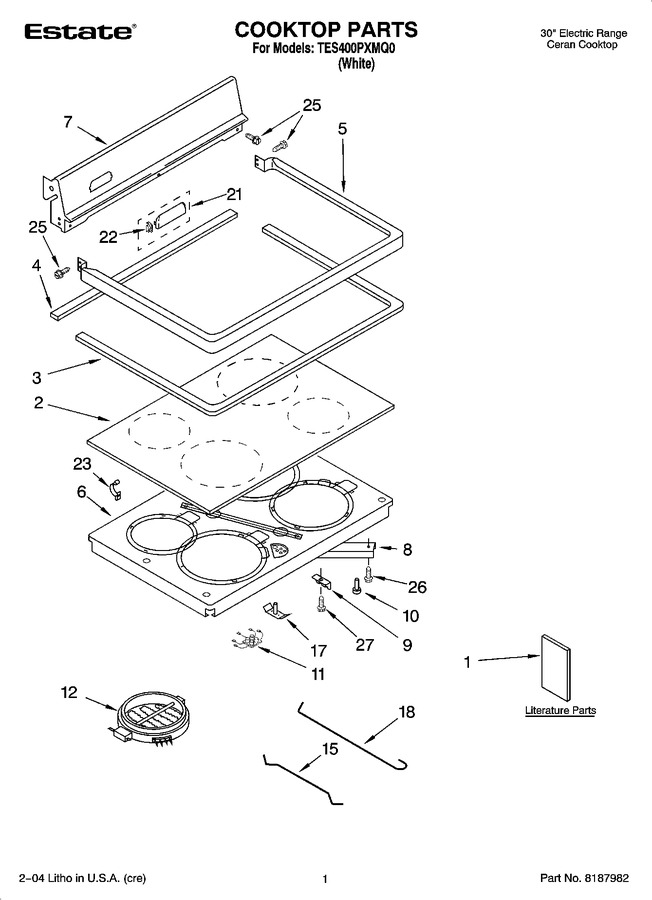

01 - Cooktop Parts


02 - Control Panel Parts


03 - Door And Drawer Parts


04 - Oven Chassis Parts


05 - Oven Parts, Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT9752776		Literature Parts (template, Anti-tip)		Appelez-nous	-
1	LIT9757097		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT9782650		Literature Parts (wiring Diagram)		Appelez-nous	-
1	LIT3191638		Safer Cooking Tips		Appelez-nous	-
1	LIT9757984		Literature Parts (installation Instructions)		Appelez-nous	-
2	9781583		Cooktop, Ceran		Appelez-nous	-
3	WP9780939		Gasket, Cooktop (front & Sides)   (Replaces: 9780939)			Immediately	$ 67.59
4	9781614		Gasket, Rear				$ 47.02
5	9750456PW		Frame, Cooktop		Appelez-nous	-
6	9781549		Support, Element		Appelez-nous	-
7	9752337GW		Back Splash		Appelez-nous	-
8	9781553		Brace, Support		Appelez-nous	-
9	9753691		Clip, Support (4)		Appelez-nous	-
10	238614		Bumper (4)   (Replaces: 9750969)				$ 84.79
11	9781937		Hot Light		Appelez-nous	-
12	W10823699		Element, Surface (1500w - Lr)   (Replaces: 8523697)			Immediately	$ 169.95
12	W10823696		Element, Surface (2500w Lf)   (Replaces: 8523692)			Immediately	$ 214.25
12	W10823698		Element, Surface (1800w - Rf)   (Replaces: 8523696)			Immediately	$ 195.12
12	W10823697		Element, Surface (2200w - Rr)   (Replaces: 8523694)				$ 380.57
15	9781460		Rod, Small (2) Ceran Element		Appelez-nous	-
17	WP9781235		Speed Nut (2)   (Replaces: 9781235)				$ 12.56
18	9781459		Rod, Large (2) Ceran Element		Appelez-nous	-
21	9753040CW		Cover Vent		Appelez-nous	-
22	3149190		Clip, Mounting		Appelez-nous	-
23	WP98997		Clip, Wire   (Replaces: 98997)				$ 11.64
25	3149333		Screw, 10-16 X 1/2				$ 5.33
26	9780272		Screw, 10-16 X 1/2		Appelez-nous	-
27	423248		Screw, 10-16 X 3/4		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
