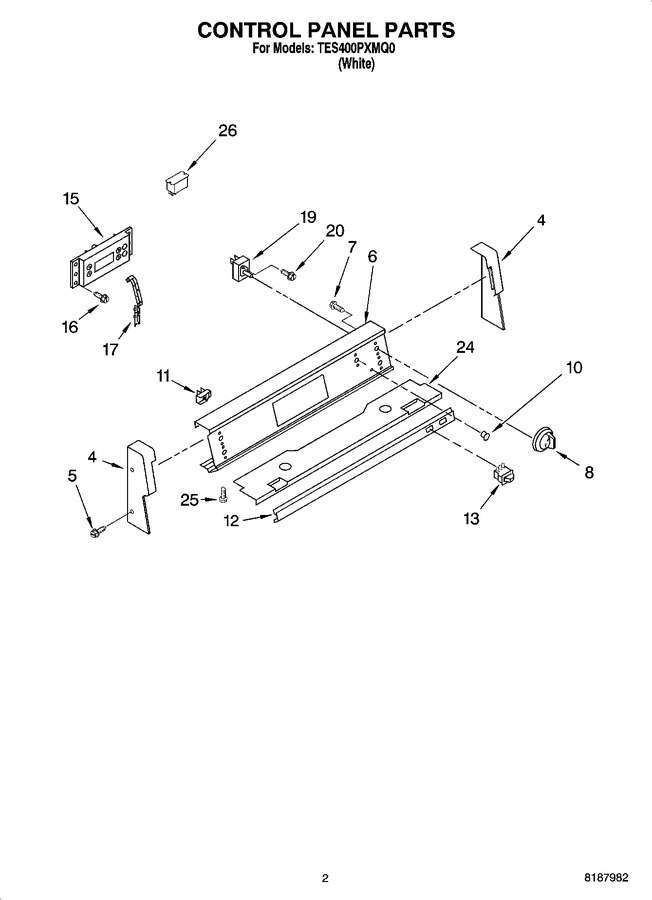

01 - Cooktop Parts
02 - Control Panel Parts
03 - Door And Drawer Parts
04 - Oven Chassis Parts
05 - Oven Parts, Miscellaneous Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 9752423FW | End Cap Right (white) |
|
- | |||||
| 4 | 9752422FW | End Cap Left (white) |
|
- | |||||
| 5 | 9780265 | Screw, 10-16 X 3/8 |
|
- | |||||
| 6 | 9754081PW | Panel, Control (white) |
|
- | |||||
| 7 | 9780852 | Screw, 8-18 X 3/8 |
|
- | |||||
| 8 | WP9752405FW | Knob, Control (white) (Replaces: 9752405FW) |
|
$ 22.20 | |||||
| 10 | WP9750343 | Lens, Indicator (Replaces: 9752589) |
|
Immediately | $ 6.00 | ||||
| 11 | 313102 | Light Indicator |
|
$ 66.48 | |||||
| 12 | 9752440PW | Trim Strip (white) |
|
- | |||||
| 13 | 9753261FW | Switch, Rocker Illuminated (white) |
|
- | |||||
| 13 | 9757138FW | Switch, Rocker Illuminated (white On/off) |
|
- | |||||
| 15 | 6610382 | Timer |
|
- | |||||
| 16 | 9780272 | Screw, 10-16 X 1/2 |
|
- | |||||
| 17 | 9781754 | Bracket, Timer |
|
- | |||||
| 19 | WP9750639 | Switch, Infinite (1800w) (Replaces: 9750639) |
|
Immediately | $ 152.66 | ||||
| 19 | WP9750638 | Switch, Infinite (1500w) (Replaces: 9750638) |
|
Immediately | $ 113.89 | ||||
| 19 | WP9750641 | Switch, Infinite (2400w) (Replaces: 9750641) |
|
Immediately | $ 103.02 | ||||
| 20 | WP3400882 | Screw, 3-32 X 3/16 (Replaces: 3400816) |
|
Immediately | $ 7.55 | ||||
| 24 | 9752439 | Base, Console |
|
- | |||||
| 25 | WP3400832 | Screw, 8-18 X 1/2 (Replaces: 3196168) |
|
Immediately | $ 8.18 | ||||
| 26 | 9752149 | Relay, Dpst |
|
- |
