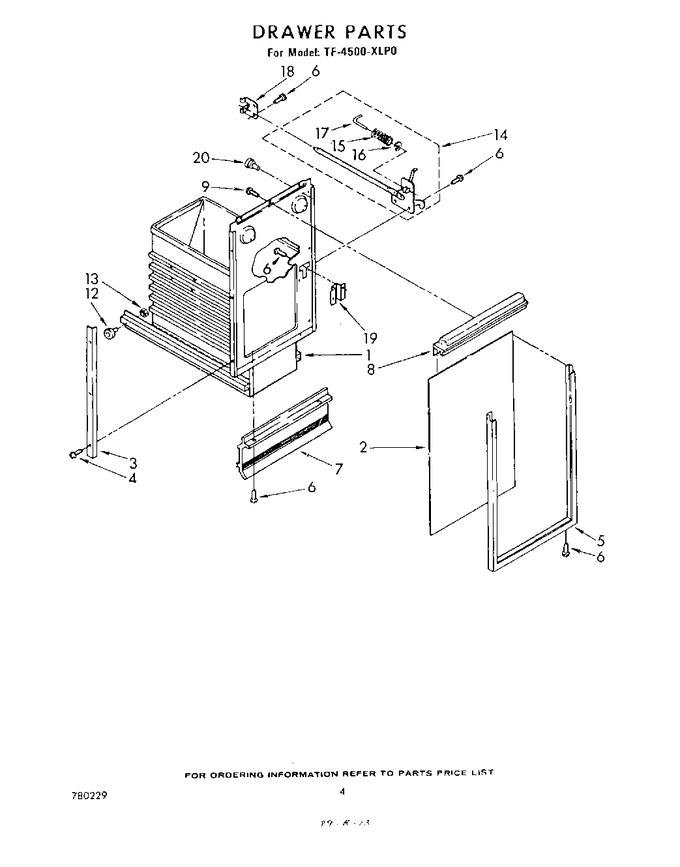

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	675296		Container Assembly		Appelez-nous	-
2	777941		Panel, Container Front (black & White)				$ 36.40
2	777762		Panel, Container Front (almond & Harvest Gold)		Appelez-nous	-
3	608051		Plate, Trim (2)				$ 26.10
4	776191		Screw, 6-20 X 3/8 Ab (4)		Appelez-nous	-
5	777345		Trim, Container (front)		Appelez-nous	-
6	WP489069		Screw, 8 X 1/2ab   (Replaces: 776076)			Immediately	$ 8.40
7	777329		Guard, Toeplate		Appelez-nous	-
8	WP608732		Handle, Container Front   (Replaces: 608769)				$ 264.39
9	WP489069		Screw, 8-18 X 1/2 (3)   (Replaces: 780230)			Immediately	$ 8.40
12	WP9871602		Bearing, Container Roller (2)   (Replaces: 776261)				$ 13.87
13	WP776356		Locknut, 3/8-24 (2)   (Replaces: 776356)				$ 8.53
14	675379		Latch Assembly   (Replaces: 775740)				$ 182.53
15	775736		Spring				$ 93.80
16	W11679168		``e`` Ring   (Replaces: 775735)		Appelez-nous	-
17	W11705836		Pin   (Replaces: 776654)		Appelez-nous	-
18	WP776395		Guide, Rear Latch   (Replaces: 776395)				$ 98.10
19	775665		Plate, Latch				$ 62.39
20	775785		Bumper, Container (2)		Appelez-nous	-
