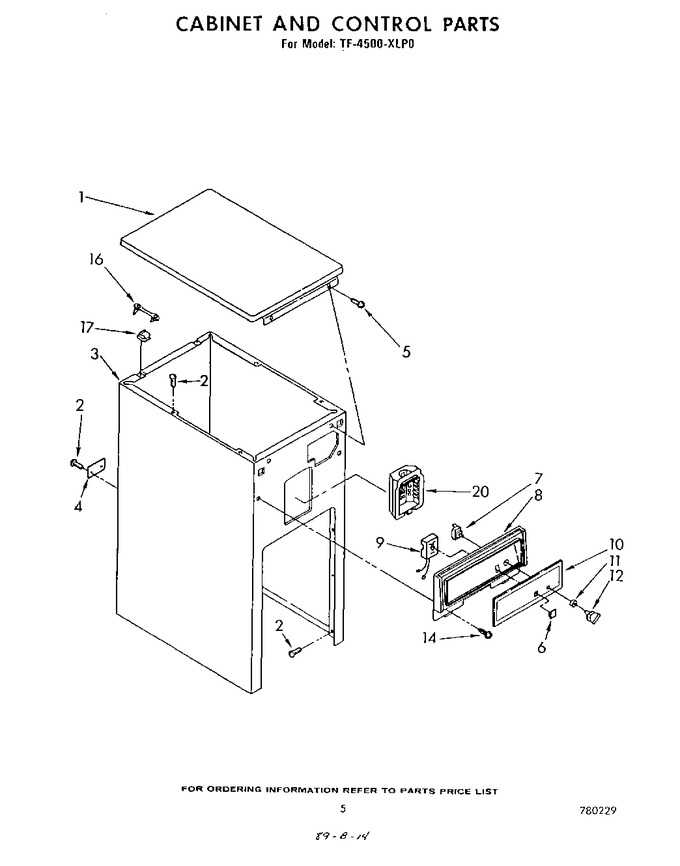

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 608630 | Top, Embossed (harrod Brown) |
|
- | |||||
| 2 | WP489069 | Screw, 8 X 1/2ab (Replaces: 776076) |
|
Immediately | $ 8.40 | ||||
| 3 | 608779 | Cabinet (stanford Brown) |
|
- | |||||
| 4 | 775676 | Plate, Power Cord |
|
- | |||||
| 5 | 776493 | Screw, Black Head |
|
- | |||||
| 6 | 777322 | Lens, Indicator |
|
- | |||||
| 7 | 675382 | Switch, Rotary Start-run (Replaces: 608452) |
|
$ 246.48 | |||||
| 8 | 608768 | Escutcheon |
|
- | |||||
| 9 | 777323 | Light, Indicator |
|
- | |||||
| 10 | 780187 | Insert, Escutcheon |
|
- | |||||
| 11 | WP777383 | Nut, Rotary Switch (Replaces: 777383) |
|
$ 12.83 | |||||
| 12 | 780191 | Knob, Rotary Switch |
|
- | |||||
| 14 | 776559 | Screw, 6-20 X 3/8 (2) |
|
- | |||||
| 16 | W11705832 | Clamp, Wire (Replaces: 777035) |
|
- | |||||
| 17 | 776017 | Clip, Top Mount (2) |
|
- | |||||
| 20 | 608533 | Holder, Deodorant Storage |
|
- |
