SELECT A DIAGRAM

01 - Motor And Drive


02 - Frame

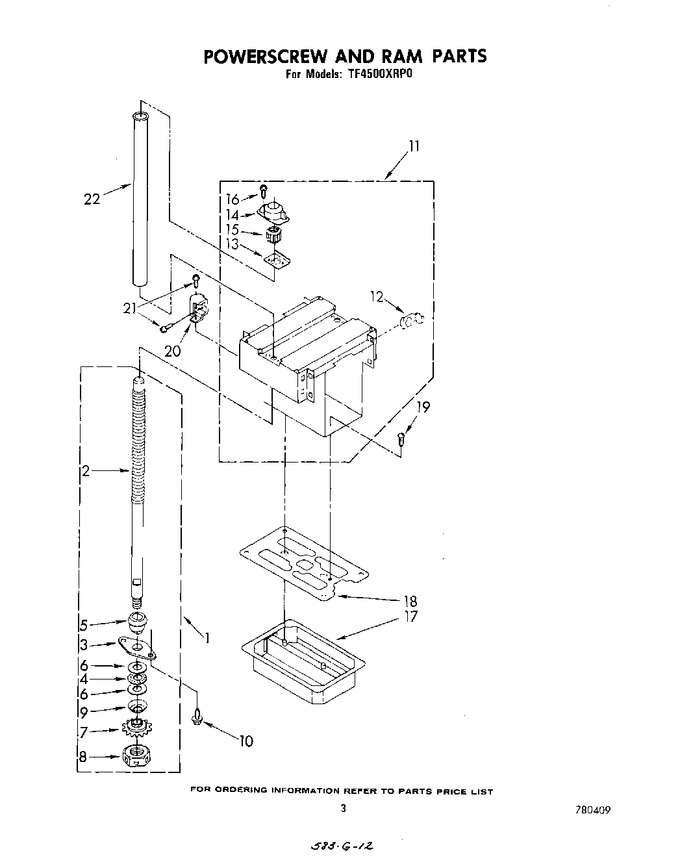

03 - Power Screw And Ram


04 - Drawer


05 - Cabinet And Control


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	777876		Screw, Power Complete Assembly (2)		Appelez-nous	-
2	N/A		Screw, Power (available Only As Complete Assembly)		Appelez-nous	-
3	779121		Plate, Bearing (2)   (Replaces: 776942)				$ 29.22
4	W10917043		Bearing, Needle (2)   (Replaces: 775482)				$ 14.47
5	776941		Hub, Power Screw (2)				$ 28.14
6	775481		Race, Thrust (4)				$ 52.61
7	W11679164		Sprocket, Washer (2)   (Replaces: 777385)		Appelez-nous	-
8	4154842		Nut, Power Screw (2)   (Replaces: 780013)		Appelez-nous	-
9	WP777332		Washer, Cone (2)   (Replaces: 777332)				$ 7.30
10	775071		Screw, 1/4-20 X 3/4 (4)		Appelez-nous	-
11	780019		Ram Assembly		Appelez-nous	-
12	777758		Pad, Ram (8)		Appelez-nous	-
13	608733		Plate, Doubler (2)		Appelez-nous	-
14	780036		Retainer, Nut (2)		Appelez-nous	-
15	WP777533		Nut, Power (2)   (Replaces: 777533)				$ 89.38
16	WP3351614		Screw, 10-24 X 3/8 (4)   (Replaces: 780034)			Immediately	$ 7.30
17	608723		Cover, Ram		Appelez-nous	-
18	780021		Wiper, Ram		Appelez-nous	-
19	WP681414		Screw, 10-16 X 1/2   (Replaces: 777595)			Immediately	$ 8.47
20	777691		Block, Container Stop		Appelez-nous	-
21	WP90767		Screw, 8-18 X 3/8 (2)   (Replaces: 777444)			Immediately	$ 8.25
22	47263		Wire, 25`` Roll (white 12 Ga.)		Appelez-nous	-
22	778604		Harness, Wiring Wire, Splicing (25 Ft.)		Appelez-nous	-
22	10875		Wire (16 Ga. 80 C Blue)			Immediately	$ 20.64
22	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
22	242826		Wire, 25`` Roll (white 14 Ga.)		Appelez-nous	-
22	247261		Black 12 Ga.		Appelez-nous	-
22	299885		Red 12 Ga.		Appelez-nous	-
22	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
22	780413		Protector, Powerscrew (2)		Appelez-nous	-
22	675351		Grease, 14 Oz. Tube (use On Power Screws & Ram Pressure Pads)   (Replaces: 675176)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
