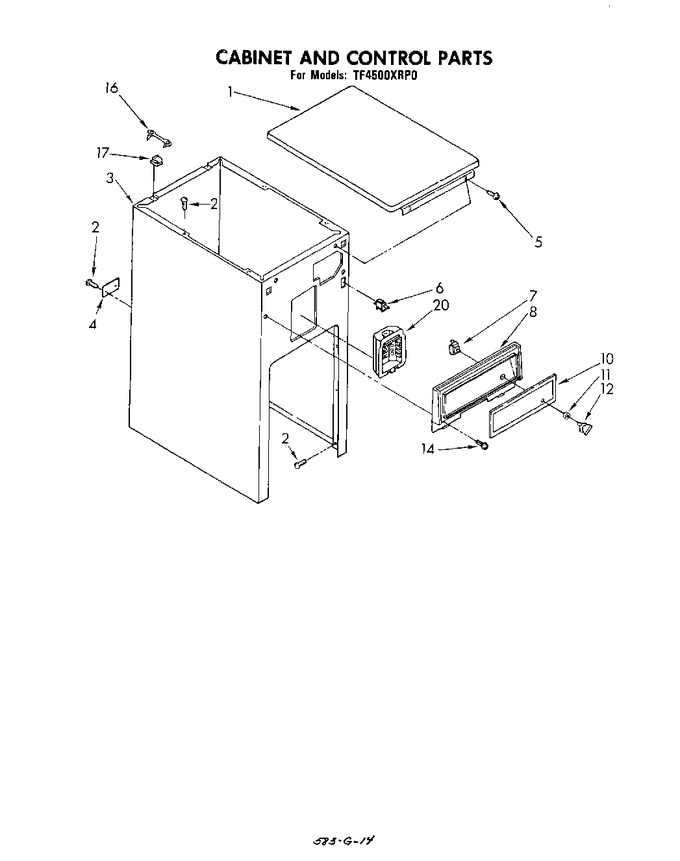

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	608630		Top, Cabinet		Appelez-nous	-
2	WP489069		Screw, 8 X 1/2ab   (Replaces: 776076)			Immediately	$ 8.40
3	780439		Cabinet		Appelez-nous	-
4	775676		Plate, Power Cord		Appelez-nous	-
5	776493		Screw, 8-18 X 1/2		Appelez-nous	-
6	780421		Switch, Drawer Tilt		Appelez-nous	-
7	675382		Switch, Rotary   (Replaces: 780379)				$ 246.48
8	608768		Escutcheon, Control		Appelez-nous	-
10	780407		Insert, Escutcheon		Appelez-nous	-
11	WP777383		Nut, Rotary Switch   (Replaces: 777383)				$ 12.83
12	780191		Knob, Rotary Switch		Appelez-nous	-
14	776559		Screw, 6-20 X 3/8 (2)		Appelez-nous	-
16	W11705832		Clamp, Wire   (Replaces: 777035)		Appelez-nous	-
17	776017		Clip, Top Mount (2)		Appelez-nous	-
20	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
20	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
20	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
20	261890		Golden Wheat		Appelez-nous	-
20	283366		Platinum		Appelez-nous	-
20	675167		Primer (tan)		Appelez-nous	-
20	978726		Standford Brown		Appelez-nous	-
20	283365		Toast		Appelez-nous	-
20	350956		Paint, Spray 13 Oz. (almond)				$ 54.01
20	608533		Holder, Deodorant Storage		Appelez-nous	-
20	777635		Deodorizer, Solid Stick-ups (2-pack)		Appelez-nous	-
20	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 60.28
20	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 109.25
20	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
20	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 117.11
20	DD81-03505A		Paint, Touch-up 1/2 Oz. (stanford Brown)   (Replaces: 72106)				$ 121.47
20	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
20	261888		Avocado		Appelez-nous	-
20	285006		Paint, Spray 13 Oz. (black)				$ 59.89
20	261886		Coffee		Appelez-nous	-
20	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
