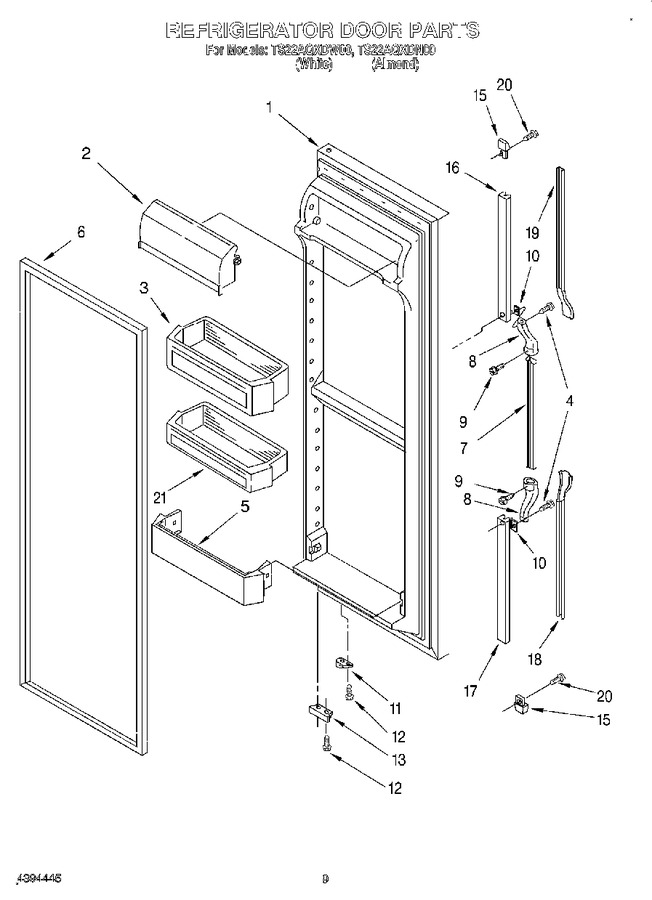

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2171083		Refrigerator Door (almond (includes Item No.6))		Appelez-nous	-
1	2171082		Refrigerator Door (white)		Appelez-nous	-
2	WP2256101		Door, Compartment   (Replaces: 2177105)			Immediately	$ 89.42
3	2177882		Shelf Bin (2)		Appelez-nous	-
4	WP489463		Screw   (Replaces: 489463)				$ 8.25
5	WP2177962K		Trivet   (Replaces: 2177962)				$ 85.14
6	2159073		Door Gasket, Magnetic (service)				$ 333.19
7	943079		Handle, Center (almond)		Appelez-nous	-
7	1124713		Handle, Center (white)		Appelez-nous	-
8	1119359		End Cap, Center Handle		Appelez-nous	-
9	489022		Screw		Appelez-nous	-
10	935075		Shim		Appelez-nous	-
11	4318165		Door Closer, Upper Cam   (Replaces: 2155312)			Immediately	$ 29.74
12	WP489483		Screw   (Replaces: 489420)				$ 11.41
13	2155332		Bracket, Door Stop		Appelez-nous	-
15	2156220		End Cap (2)		Appelez-nous	-
16	1119366		Retainer, Top		Appelez-nous	-
17	1119360		Retainer, Bottom		Appelez-nous	-
18	1119363		Extension, Bottom (almond)		Appelez-nous	-
18	1119361		Extension, Bottom (white)		Appelez-nous	-
19	1119367		Extension, Top (white)		Appelez-nous	-
19	1119369		Extension, Top (almond)		Appelez-nous	-
20	489075		Screw		Appelez-nous	-
21	2177883		Shelf Bin		Appelez-nous	-
