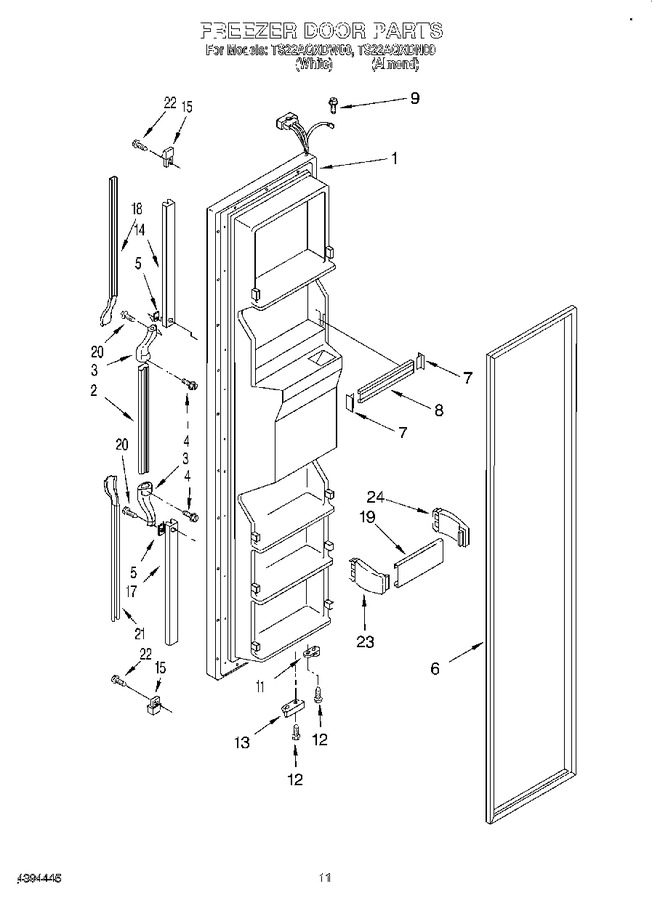

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2182914		Freezer Door (white)		Appelez-nous	-
1	2182915		Freezer Door (almond (includes Item No.6 And Dispenser Front Parts))		Appelez-nous	-
2	943079		Handle, Center (almond)		Appelez-nous	-
2	1124713		Handle, Center (white)		Appelez-nous	-
3	1119359		End Cap, Center Handle		Appelez-nous	-
4	489022		Screw		Appelez-nous	-
5	935075		Shim		Appelez-nous	-
6	2159072		Door Gasket, Magnetic (service)				$ 323.60
7	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.79
8	WPW10307490		Trim, Door Shelf   (Replaces: 2195926)			Immediately	$ 24.27
9	WP488234		Screw   (Replaces: 489422)				$ 7.08
11	4318165		Door Closer, Upper Cam   (Replaces: 2155312)			Immediately	$ 29.74
12	WP489483		Screw   (Replaces: 489420)				$ 11.41
13	2155332		Bracket, Door Stop		Appelez-nous	-
14	1119366		Retainer, Top		Appelez-nous	-
15	2156220		End Cap (2)		Appelez-nous	-
17	1119360		Retainer, Bottom		Appelez-nous	-
18	1119369		Extension, Top (almond)		Appelez-nous	-
18	1119367		Extension, Top (white)		Appelez-nous	-
19	2182786		Door, Shelf (4)		Appelez-nous	-
20	WP489463		Screw   (Replaces: 489463)				$ 8.25
21	1119363		Extension, Bottom (almond)		Appelez-nous	-
21	1119361		Extension, Bottom (white)		Appelez-nous	-
22	489075		Screw		Appelez-nous	-
23	2156005		End Cap (left)		Appelez-nous	-
24	WP2195916K		End Cap (right)   (Replaces: 2156002)			Immediately	$ 13.18
