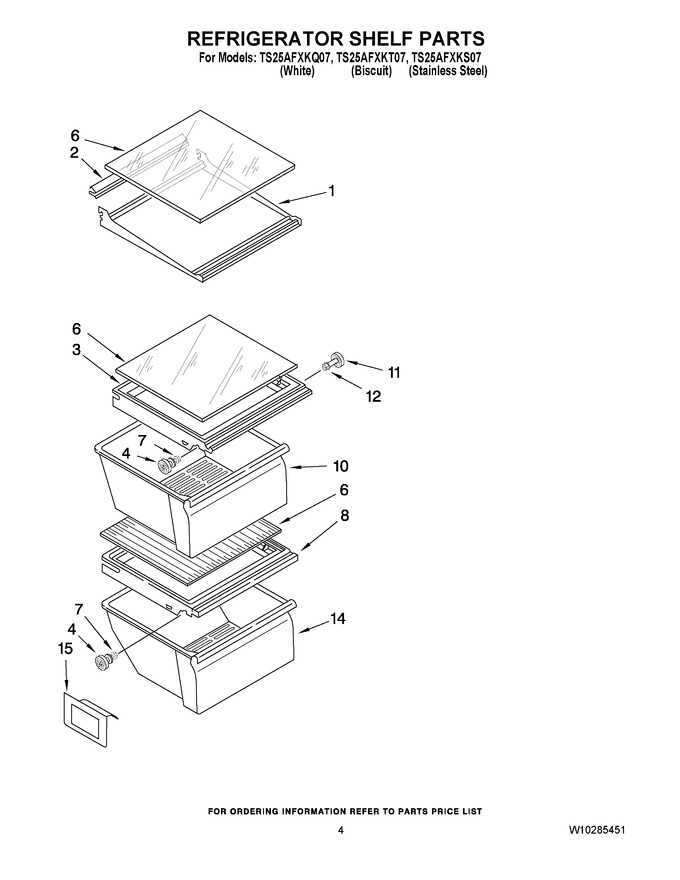

03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10141749		Shelf Assembly, Cantilever (3)		Appelez-nous	-
2	1125594		Retainer (3)		Appelez-nous	-
3	W10508993		Cover, Crisper   (Replaces: 2209698)				$ 305.85
4	W11223328		Stud Assembly   (Replaces: W10173126)			Immediately	$ 14.77
6	W10864399		Glass, Cover   (Replaces: 2179259)				$ 232.03
7	WP3-24004-109		Screw   (Replaces: W10191954)				$ 9.14
8	W10508993		Cover, Meat Pan   (Replaces: 2311726)				$ 305.85
10	WP2188661		Crisper Pan   (Replaces: 2188661)			Immediately	$ 196.47
11	W11527119		Stud Assembly   (Replaces: W10173127)		Appelez-nous	-
12	W10172289		Screw		Appelez-nous	-
14	WP2188664		Meat Pan   (Replaces: 2188654)			Immediately	$ 92.70
15	2179350		Deflector				$ 85.89
