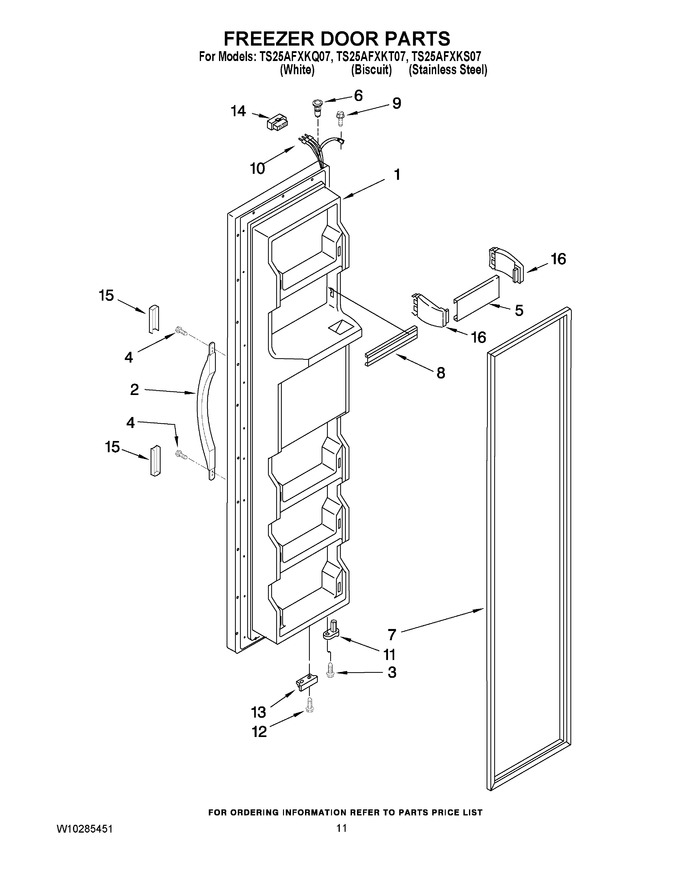

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2216829T		Freezer Door (includes Item No.7 And Dispenser Front Parts) (biscuit)		Appelez-nous	-
1	2216829S		Freezer Door (includes Item No.7 And Dispenser Front Parts) (stainless Steel)		Appelez-nous	-
1	2216829W		Freezer Door (includes Item No.7 And Dispenser Front Parts) (white)		Appelez-nous	-
2	2304413W		Handle, Center (white)		Appelez-nous	-
2	2304413T		Handle, Center (biscuit)		Appelez-nous	-
2	2304413B		Handle, Center (black)		Appelez-nous	-
3	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
4	WP489491		Screw   (Replaces: 489491)				$ 7.30
5	WP2309718		Trim, Shelf (4)   (Replaces: 2309718)				$ 61.49
6	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 8.15
7	2159082		Door Gasket, Magnetic (black)   (Replaces: 2221314)				$ 332.49
7	2159074		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221303)				$ 325.70
8	WPW10307490		Trim, Door Shelf   (Replaces: 2209681)			Immediately	$ 24.27
9	WP489128		Screw   (Replaces: 488500)				$ 11.40
10	2311641		Wiring Harness   (Replaces: 2206601)		Appelez-nous	-
11	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
12	WP489483		Screw   (Replaces: 489420)				$ 11.41
13	W10185566		Bracket, Door Stop (chrome)		Appelez-nous	-
14	WP2154473		Connector   (Replaces: 2154473)				$ 24.83
15	2194272T		Trim, Handle (biscuit)				$ 6.64
15	WP2194272B		Trim, Handle (black)   (Replaces: 2194272B)				$ 7.30
15	2194272W		Trim, Handle (white)				$ 5.85
16	2195917		End Cap (8)		Appelez-nous	-
