| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

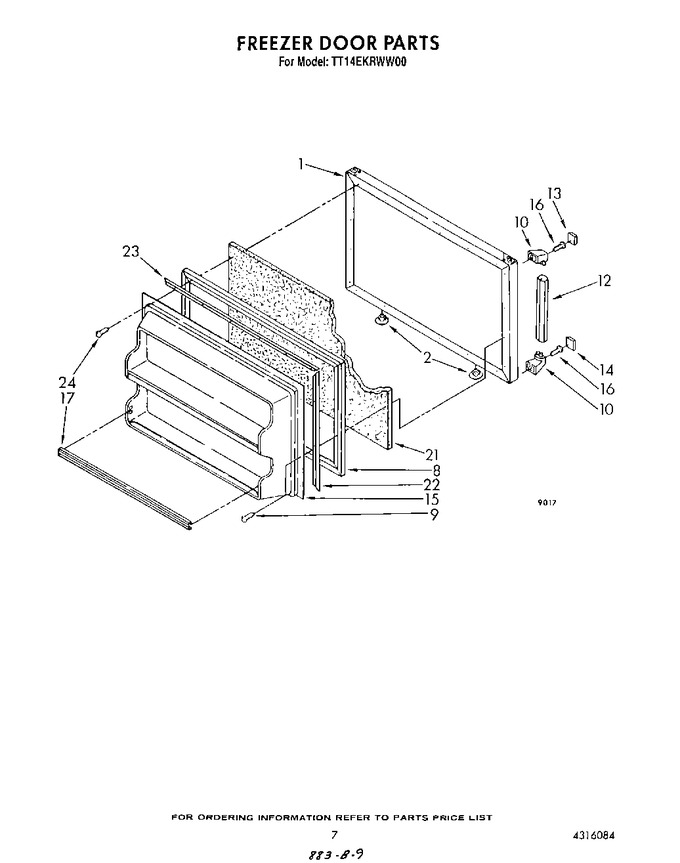

| 1 | 2151723 | Panel, Freezer Door (also Order Item 21) |
|
- | |||||
| 2 | 534927 | Hole Plug |
|
- | |||||
| 8 | WP2188456A | Door Gasket (magnetic) (Replaces: 1122829) |
|
$ 258.49 | |||||
| 9 | WP489069 | Screw, 7 X 1/2 (Replaces: 489101) |
|
Immediately | $ 8.40 | ||||
| 9 | WPW10141645 | Screw (repair) (Replaces: 489084) |
|
$ 8.05 | |||||
| 10 | 1124591 | Handle, End |
|
- | |||||
| 12 | 1100023 | Handle, Center |
|
- | |||||
| 13 | 2151726 | Insert, Screw Cover |
|
- | |||||
| 14 | 1124617 | Insert, Screw Cover |
|
- | |||||
| 15 | 1120629 | Panel, Interior Door (freezer) |
|
- | |||||
| 16 | 488987 | Screw |
|
- | |||||
| 16 | 488923 | Screw (repair) |
|
- | |||||
| 17 | 1116038 | Trim, Door Shelf |
|
- | |||||
| 21 | 876029 | Insulation Foam (required When Replacing Exterior Door) |
|
- | |||||
| 22 | 1120613 | Gasket Retainer, Side (2) |
|
- | |||||
| 23 | 1120614 | Gasket Retainer, Top & Bottom (2) |
|
$ 27.51 | |||||
| 24 | WP488729 | Corner Screw (8) (Replaces: 489287) |
|
Immediately | $ 8.28 |
