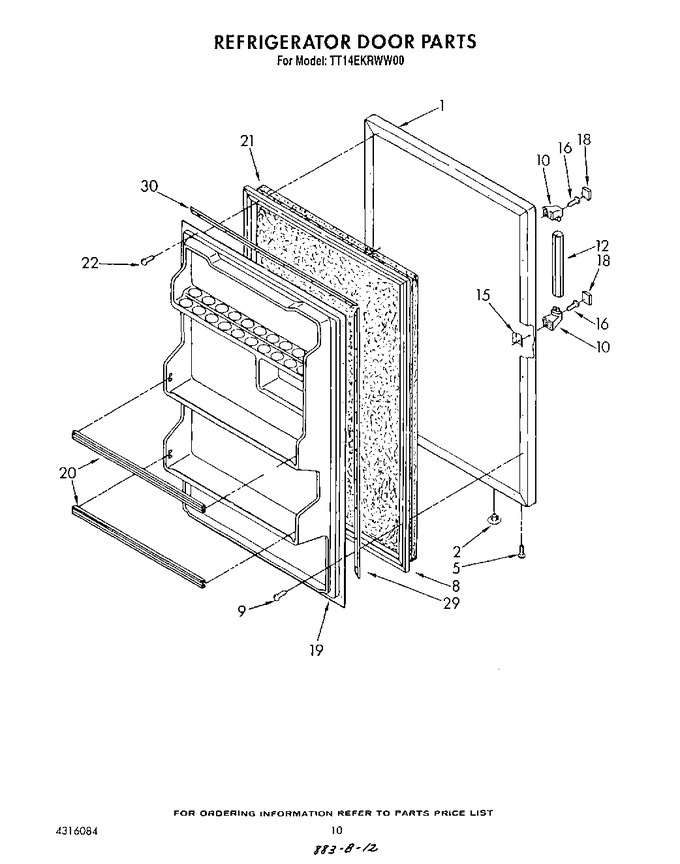

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2151719		Panel, Refrigerator Door (also Order Item 21)		Appelez-nous	-
2	534927		Hole Plug		Appelez-nous	-
8	2188445A		Door Gasket, Magnetic   (Replaces: 1122826)				$ 177.62
9	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 7.56
9	WPW10141645		Screw (repair)   (Replaces: 489084)				$ 7.25
10	1124591		Handle, End		Appelez-nous	-
12	1100023		Handle, Center		Appelez-nous	-
15	WP939101		Screw Anchor (2)   (Replaces: 939101)				$ 7.09
16	488987		Screw		Appelez-nous	-
16	488923		Screw (repair)		Appelez-nous	-
18	934724		Screw Cover		Appelez-nous	-
19	1120628		Interior Door Panel		Appelez-nous	-
20	1116031		Trim, Door Shelf (2)		Appelez-nous	-
21	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
22	WP488729		Corner Screw (8)   (Replaces: 489287)			Immediately	$ 7.45
29	1120615		Gasket Retainer, Side (2)		Appelez-nous	-
30	1120614		Gasket Retainer, Top & Bottom (2)				$ 27.51
30	212643		Sealer, Gum (4 Feet)			Immediately	$ 86.78
30	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
30	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 218.83
30	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
30	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 46.58
30	606755		Bag, Insulation (36-5/8`` X 46``)				$ 74.13
30	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
30	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
30	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
30	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
30	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 11.50
30	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
30	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
30	833938		Kit, Terminal Connector				$ 7.62
30	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 164.39
30	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 111.46
30	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 218.83
30	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 218.83
	1117510		Torx Key				$ 5.84
	1129316		Eckmf90			Immediately	$ 134.20
	LIT4316084		Parts List		Appelez-nous	-
	LIT2149681		Service & Wiring Sheet		Appelez-nous	-
	LIT2151759		Energy Label		Appelez-nous	-
	LIT2151712		Care & Use Guide		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 36.11
	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 53.90
	350941		Xleveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
	350942		Primer White (13 Oz. Spray Can)				$ 84.73

    View Diagram in Separate Window       Print Part List
