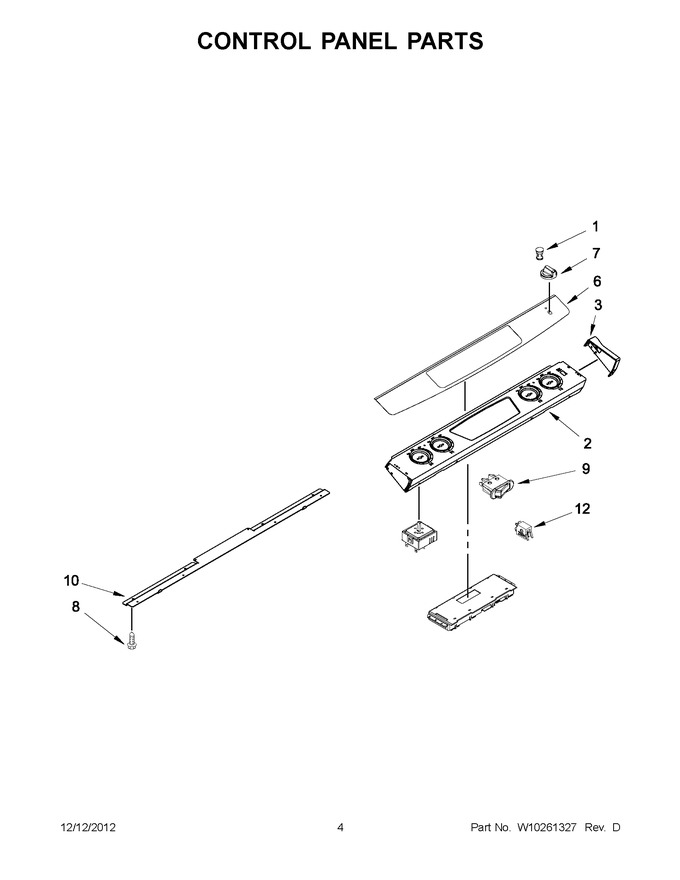

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP7730P011-60 | Lens, Indicator (Replaces: 7730P011-60) |
|
$ 6.02 | |||||
| 2 | W10159606 | Panel, Control (white) |
|
- | |||||
| 3 | 7726P332-60 | Endcap, Right |
|
$ 30.59 | |||||
| 3 | 7726P333-60 | Endcap, Left |
|
$ 17.04 | |||||
| 4 | WP7403P239-60 | Switch, Infinite (left Rear & Right Front) (Replaces: 7403P372-60) |
|
Immediately | $ 39.00 | ||||
| 4 | WP7403P238-60 | Switch, Infinite (left Front & Right Rear) (Replaces: 7403P373-60) |
|
Immediately | $ 64.20 | ||||
| 5 | WP74004153 | Light, Indicator (Replaces: 74004153) |
|
Immediately | $ 8.91 | ||||
| 6 | W10178992 | Overlay |
|
- | |||||
| 7 | 7737P415-60 | Knobs (white) |
|
$ 21.78 | |||||
| 8 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 9 | 74008717 | White (Replaces: 7403P799-60) |
|
$ 84.80 | |||||
| 10 | 3807F601-51 | Support, Control Panel |
|
- |
