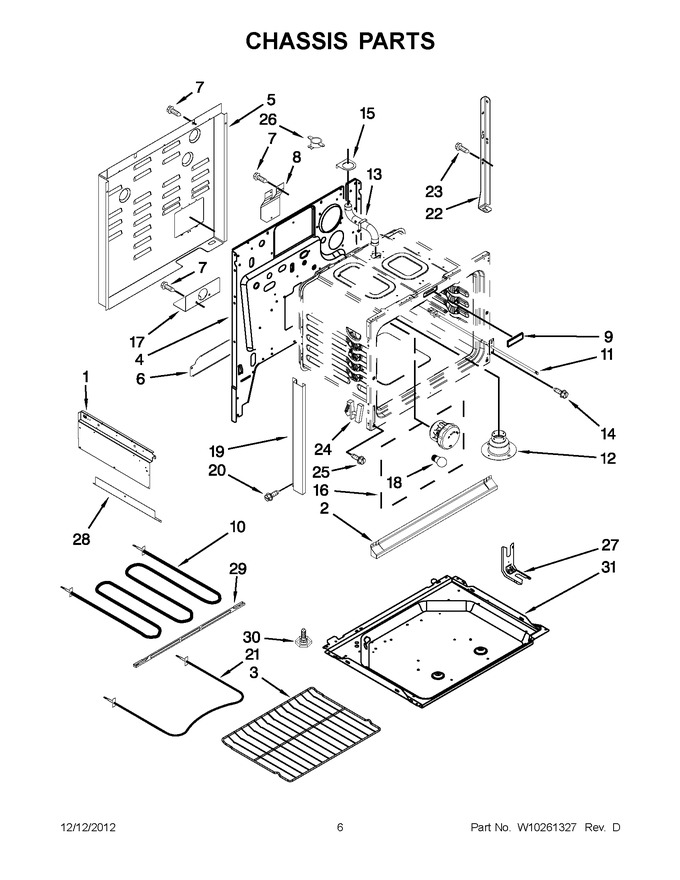

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts
05 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2618F206-51 | Panel, Shield (right) |
|
$ 135.68 | |||||
| 1 | 2618F201-51 | Panel, Shield (left) |
|
$ 32.51 | |||||
| 2 | 3604W156-71 | Shield, Vent |
|
$ 67.89 | |||||
| 3 | WPW10282492 | Rack, Oven (Replaces: 7801P054-60) |
|
Immediately | $ 78.38 | ||||
| 4 | 3804F313-51 | Back, Main |
|
- | |||||
| 5 | 4005F810-51 | Cover, Rear Wire |
|
$ 248.98 | |||||
| 6 | 3826F066-51 | Extension, Main Back |
|
$ 7.82 | |||||
| 7 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 7.30 | |||||
| 8 | 7003P101-60 | Insulator, Cord |
|
$ 15.60 | |||||
| 9 | 7718P027-60 | Plug, Lock |
|
- | |||||
| 10 | WPW10310249 | Element, Broil (Replaces: 7406P205-60) |
|
Immediately | $ 124.81 | ||||
| 11 | 12001656 | Sensor, Oven (Replaces: 7430P042-60) |
|
Immediately | $ 50.14 | ||||
| 12 | 8026P096-60 | Tube, Vent Lower |
|
- | |||||
| 13 | 8026P085-60 | Vent Tube |
|
- | |||||
| 14 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 7.30 | |||||
| 15 | 3605F345-51 | Holder, Vent Tube |
|
$ 7.82 | |||||
| 16 | WP7407P182-60 | Light Assembly (Replaces: 7407P182-60) |
|
Immediately | $ 73.44 | ||||
| 17 | W10190166 | Bracket, Power Supply (Replaces: 3801F574-51) |
|
$ 9.70 | |||||
| 18 | 8009 | Bulb, Light (Replaces: 7407P103-60) |
|
Immediately | $ 18.67 | ||||
| 19 | 3608F128-71 | Trim, Side Right |
|
$ 103.82 | |||||
| 19 | 3608F130-71 | Trim, Side Left |
|
- | |||||
| 20 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 7.30 | |||||
| 21 | WPW10310274 | Element, Bake (Replaces: 7406P439-60) |
|
Immediately | $ 149.38 | ||||
| 22 | 3807F732-51 | Support, Oven (rear) |
|
- | |||||
| 23 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 7.30 | |||||
| 24 | 7106P131-60 | Hinge |
|
- | |||||
| 25 | WP4159193 | Screw (Replaces: 7101P282-60) |
|
$ 5.07 | |||||
| 26 | WP7450P034-60 | Switch, Hi-limit (Replaces: 7450P034-60) |
|
$ 228.46 | |||||
| 27 | WP3801F656-51 | Bracket, Anti-tip (Replaces: 3801F656-51) |
|
Immediately | $ 6.11 | ||||
| 28 | 3826F064-51 | Extension, Heat Shield |
|
- | |||||
| 29 | 3807F494-45 | Support, Broil Element |
|
- | |||||
| 30 | W11665456 | Foot, Leveler (Replaces: 7101P507-60) |
|
Immediately | $ 29.52 | ||||
| 31 | 4003F067-51 | Retainer, Bottom |
|
- | |||||
| NI | 7002P456-60 | Insulation, Back |
|
- | |||||
| NI | 7002P471-60 | Insulation, Oven Wrap |
|
- |
