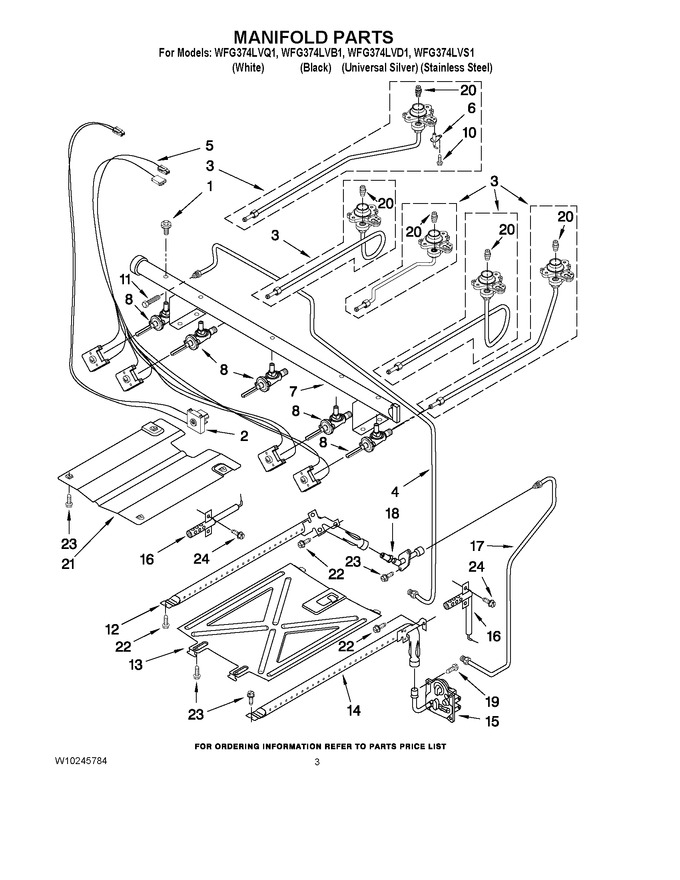

03 - Manifold Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer & Broiler Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8273096 | Screw, Valve |
|
$ 5.27 | |||||
| 2 | W10170130 | Harness (includes Center Switch) |
|
$ 163.47 | |||||
| 3 | W10157416 | Tubing, Burner W/orifice (right Front) |
|
- | |||||
| 3 | W10157418 | Tubing, Burner W/orifice (left Rear) |
|
$ 49.23 | |||||
| 3 | W10216417 | Tubing, Burner W/orifice (left Front) |
|
- | |||||
| 3 | WPW10157419 | Tubing, Burner W/orifice (center) (Replaces: W10157419) |
|
$ 109.31 | |||||
| 3 | WPW10157415 | Tubing, Burner W/orifice (right Rear) (Replaces: W10157415) |
|
$ 109.96 | |||||
| 4 | W10157928 | Tubing (manifold To Regulator) |
|
$ 94.01 | |||||
| 5 | WPW10295998 | Harness, Igniter (w/switches) (Replaces: 8523406) |
|
$ 217.36 | |||||
| 6 | WPW10216419 | Electrode (4) (Replaces: W10216419) |
|
Immediately | $ 34.97 | ||||
| 7 | W10166786 | Pipe, Manifold |
|
- | |||||
| 8 | WP9757218 | Valve (center) (Replaces: 8523819) |
|
$ 256.34 | |||||
| 8 | WP9757218 | Valve (right Rear) (Replaces: 9757218) |
|
$ 256.34 | |||||
| 8 | 8273004 | Valve (left Rear) |
|
$ 122.16 | |||||
| 8 | WPW10170204 | Valve (left & Right Front) (Replaces: W10170204) |
|
$ 278.28 | |||||
| 10 | WP8273062 | Screw (4) (Replaces: 8273062) |
|
Immediately | $ 7.91 | ||||
| 11 | 3400228 | Bolt |
|
$ 36.76 | |||||
| 12 | WP8054078 | Burner, Broiler (Replaces: 8054078) |
|
$ 227.96 | |||||
| 13 | WPW10184491 | Spreader, Flame (oven) (Replaces: W10184491) |
|
$ 241.45 | |||||
| 14 | WP9758078 | Burner, Bake (Replaces: 9758078) |
|
$ 215.30 | |||||
| 15 | WPW10293048 | Valve, Regulator (Replaces: 9761959) |
|
Immediately | $ 442.66 | ||||
| 16 | WP9758079 | Igniter (bake) (Replaces: 9758079) |
|
Immediately | $ 41.01 | ||||
| 16 | WP8054129 | Igniter (broil) (Replaces: 8054129) |
|
Immediately | $ 137.14 | ||||
| 17 | 8272222 | Tubing (broiler Fitting To Valve) |
|
$ 97.58 | |||||
| 18 | 3186489 | Fitting, Broiler |
|
$ 64.58 | |||||
| 19 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 7.95 | |||||
| 20 | WPW10170509 | Orifice, Burner (left & Right Front) (Replaces: W10170509) |
|
$ 98.67 | |||||
| 20 | WPW10170506 | Orifice, Burner (right Rear) (Replaces: W10170506) |
|
$ 93.19 | |||||
| 20 | WPW10170508 | Orifice, Burner (left Rear) (Replaces: W10170508) |
|
$ 90.68 | |||||
| 20 | WPW10170507 | Orifice, Burner (center) (Replaces: W10170507) |
|
$ 93.19 | |||||
| 21 | W10137062 | Spreader, Flame (broiler) |
|
- | |||||
| 22 | 3196265 | Screw |
|
- | |||||
| 23 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 14.02 | ||||
| 24 | W11684507 | Screw (Replaces: 3196385) |
|
$ 13.59 | |||||
| NI | WPW10170516 | Spuds, Lp Gas (kit Of 4) (Replaces: W10170516) |
|
$ 106.21 |
