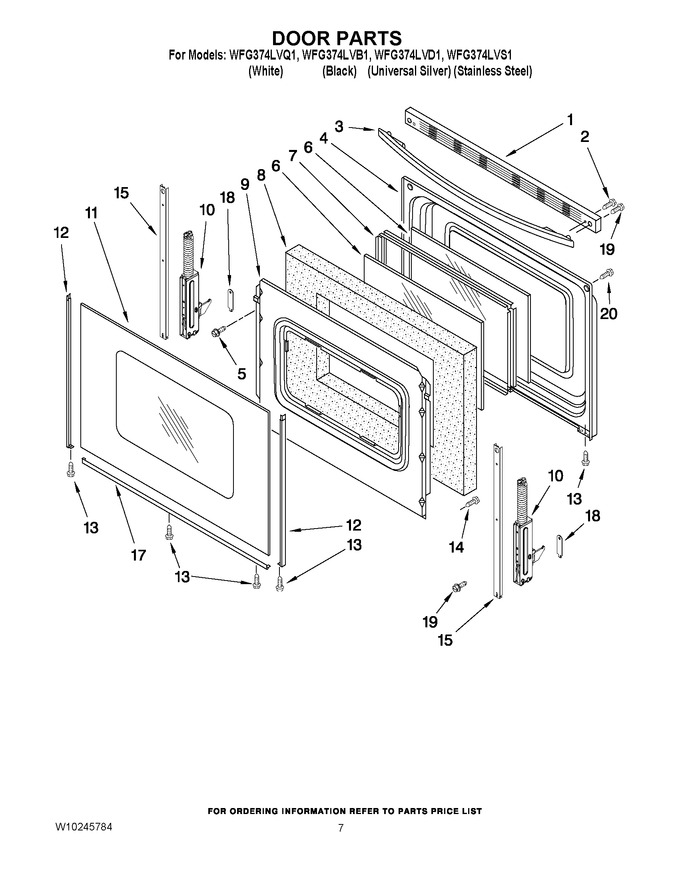

05 - Door Parts
06 - Drawer & Broiler Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10817433 | Trim, Top (white) (Replaces: W10118390) |
|
Immediately | $ 103.27 | ||||
| 1 | WPW10310922 | Trim, Top (black) (Replaces: W10118391) |
|
Immediately | $ 175.37 | ||||
| 2 | W10817436 | Screw (Replaces: W10168559) |
|
Immediately | $ 7.74 | ||||
| 3 | W10817434 | Handle, Door (white) (Replaces: W10118384) |
|
Immediately | $ 223.64 | ||||
| 3 | WPW10323589 | Handle, Door (black) (Replaces: W10118385) |
|
Immediately | $ 238.78 | ||||
| 3 | WPW10144883 | Handle, Door (stainless Model) (Replaces: W10144883) |
|
$ 240.63 | |||||
| 4 | WP9761344 | Liner, Door (Replaces: 9761344) |
|
Immediately | $ 355.13 | ||||
| 5 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 8.74 | ||||
| 6 | WP8053948 | Glass, Inner (2) (Replaces: 9758162) |
|
$ 178.28 | |||||
| 7 | WPW10316950 | Frame, Glass (Replaces: 3186289) |
|
Immediately | $ 84.86 | ||||
| 8 | WPW10278991 | Insulation, Door (Replaces: 8272618) |
|
Immediately | $ 96.54 | ||||
| 9 | W11539580 | Retainer, Insul. (Replaces: 9761357) |
|
$ 221.30 | |||||
| 10 | W10347466 | Hinge, Door (Replaces: 9761493) |
|
Immediately | $ 209.37 | ||||
| 11 | WPW10118454 | Glass, Outer Door (white) (Replaces: W10118454) |
|
$ 309.44 | |||||
| 11 | WPW10118455 | Glass, Outer Door (black) (Replaces: W10118455) |
|
Immediately | $ 316.86 | ||||
| 12 | W10761014 | Trim, Door Side (black Right Hand) (Replaces: 8523165) |
|
Immediately | $ 72.96 | ||||
| 12 | 8184858 | Trim, Door Side (stainless Lh) (Replaces: W10113925) |
|
$ 160.81 | |||||
| 12 | W10761018 | Trim, Door Side (black Left Hand) (Replaces: 8523171) |
|
Immediately | $ 53.77 | ||||
| 12 | WP8523166 | Trim, Door Side (white Right Hand) (Replaces: 8523166) |
|
Immediately | $ 84.23 | ||||
| 12 | WP8523172 | Trim, Door Side (white Left Hand) (Replaces: 8523172) |
|
Immediately | $ 69.93 | ||||
| 12 | 8184858 | Trim, Door Side (stainless Rh) (Replaces: W10113926) |
|
$ 160.81 | |||||
| 13 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 7.19 | ||||
| 14 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.19 | ||||
| 15 | W11502236 | Strap, Door (Replaces: W10113759) |
|
Immediately | $ 26.36 | ||||
| 17 | WP8523177 | Trim, Bottom (black) (Replaces: 8523177) |
|
Immediately | $ 157.96 | ||||
| 17 | W10067550 | Trim, Bottom (universal Silver) |
|
- | |||||
| 17 | W11594186 | Trim, Bottom (white) (Replaces: 8523175) |
|
Immediately | $ 58.45 | ||||
| 18 | 9761517 | Clip, Door Mntg |
|
$ 45.82 | |||||
| 19 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.82 | ||||
| 20 | WPW10200660 | Screw, 10-16 X 3/4 (Replaces: W10200660) |
|
Immediately | $ 7.78 |
