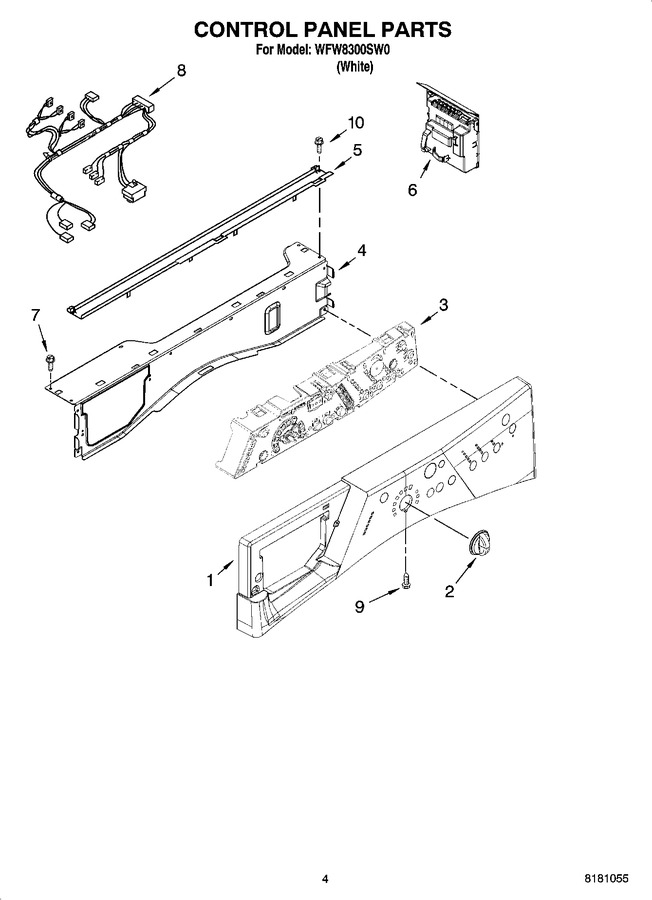

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 8574927 Panel, Control Appelez-nous -
2 8571944 Knob, Control Appelez-nous -
3 8571903 User Interface Special Order $ 275.47

4 W10846488 Brace, Top Front   (Replaces: 8540558) Special Order $ 92.31

5 8540839 Channel, Water Special Order $ 27.81

6 WPW10525351 Microcomputer, Machine Control   (Replaces: 8541000) Special Order $ 343.38

7 WP488729 Screw, 8-18 X 1/2   (Replaces: 3390647) In-Stock Immediately $ 8.28

8 WPW10169929 Harness, Wiring (main)   (Replaces: 8540703) Special Order $ 279.31

9 WP8540282 Screw   (Replaces: 8540282) Special Order $ 12.14

10 WP489442 Screw, 8-18 X 5/8   (Replaces: W10015090) In-Stock Immediately $ 11.49


    View Diagram in Separate Window     Print Icon   Print Part List
