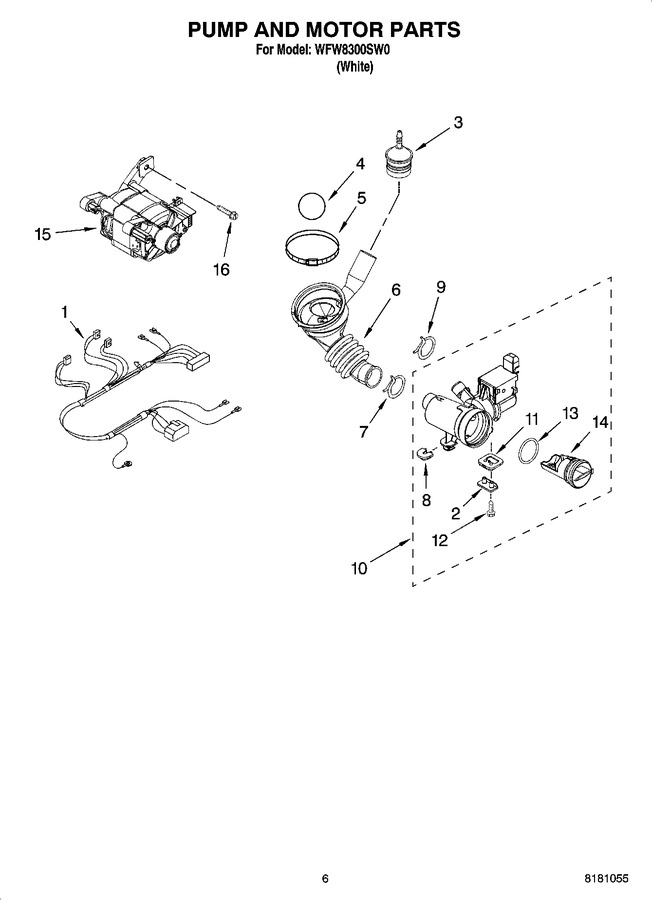

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10166995 | Harness, Motor (Replaces: 8540704) |
|
$ 170.24 | |||||
| 2 | 8540033 | Cap, Right Foot |
|
$ 17.98 | |||||
| 3 | WPW10405608 | Air Trap (Replaces: 8540180) |
|
Immediately | $ 7.91 | ||||
| 4 | 8540013 | Ball |
|
$ 20.12 | |||||
| 5 | WP696392 | Clamp (Replaces: 8540008) |
|
$ 8.12 | |||||
| 6 | W11366249 | Hose, Tub To Pump (Replaces: 8540012) |
|
Immediately | $ 51.94 | ||||
| 7 | WP616099 | Clamp (Replaces: 370448) |
|
Immediately | $ 7.81 | ||||
| 8 | W10034820 | Damper, Rubber (left Foot) (Replaces: 8540032) |
|
$ 12.79 | |||||
| 9 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 8.52 | ||||
| 10 | WPW10730972 | Pump (complete) (Replaces: 8540024) |
|
Immediately | $ 177.38 | ||||
| 11 | 8540031 | Damper, Rubber (right Foot) |
|
$ 33.36 | |||||
| 12 | 8533964 | Screw, 10-16 X 1.25 (2) |
|
$ 12.00 | |||||
| 13 | WPW10730972 | Seal, Filter Cap (Replaces: 8540025) |
|
Immediately | $ 177.38 | ||||
| 14 | WPW10730972 | Filter Assembly (includes Item 13) (Replaces: 8540996) |
|
Immediately | $ 177.38 | ||||
| 15 | 8540133 | Motor, Drive |
|
- | |||||
| 16 | 8540134 | Bolt, Motor |
|
$ 13.45 |
