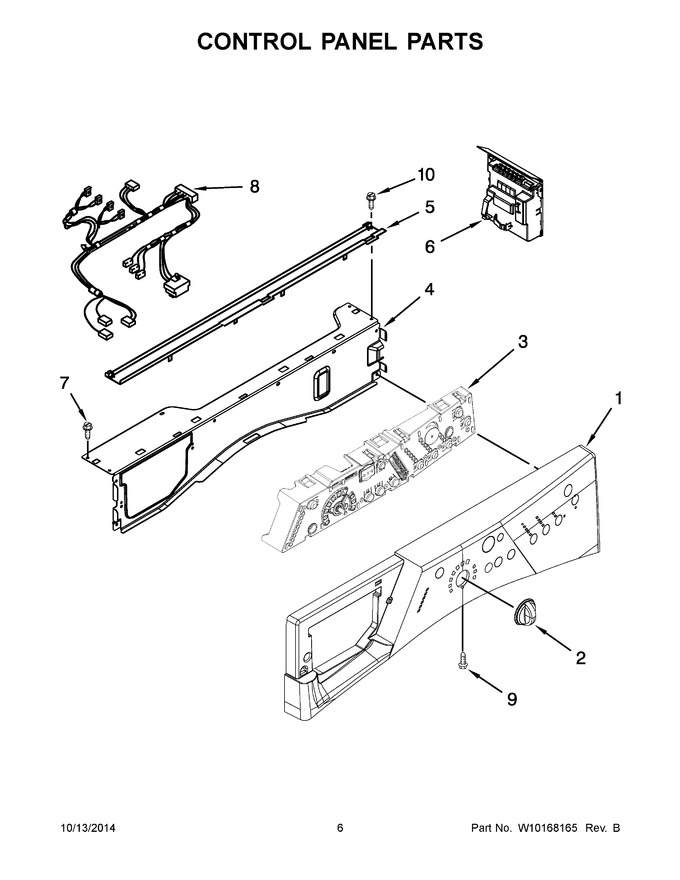

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10099593 | Panel, Control |
|
$ 256.98 | |||||
| 2 | 8574963 | Assembly, Knob |
|
$ 26.78 | |||||
| 3 | 8571903 | User Interface |
|
$ 275.47 | |||||
| 4 | W10846488 | Brace, Top Front (Replaces: 8540558) |
|
$ 92.31 | |||||
| 5 | 8540839 | Channel, Water |
|
$ 27.81 | |||||
| 6 | WPW10525351 | Microcomputer, Machine Control (Replaces: W10160252) |
|
$ 343.38 | |||||
| 7 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 8 | WPW10169929 | Harness, Wiring (main) (Replaces: W10118622) |
|
$ 279.31 | |||||
| 9 | WP8540282 | Screw (Replaces: 8540282) |
|
$ 12.14 | |||||
| 10 | WP489442 | Screw (Replaces: W10015090) |
|
Immediately | $ 11.49 |
