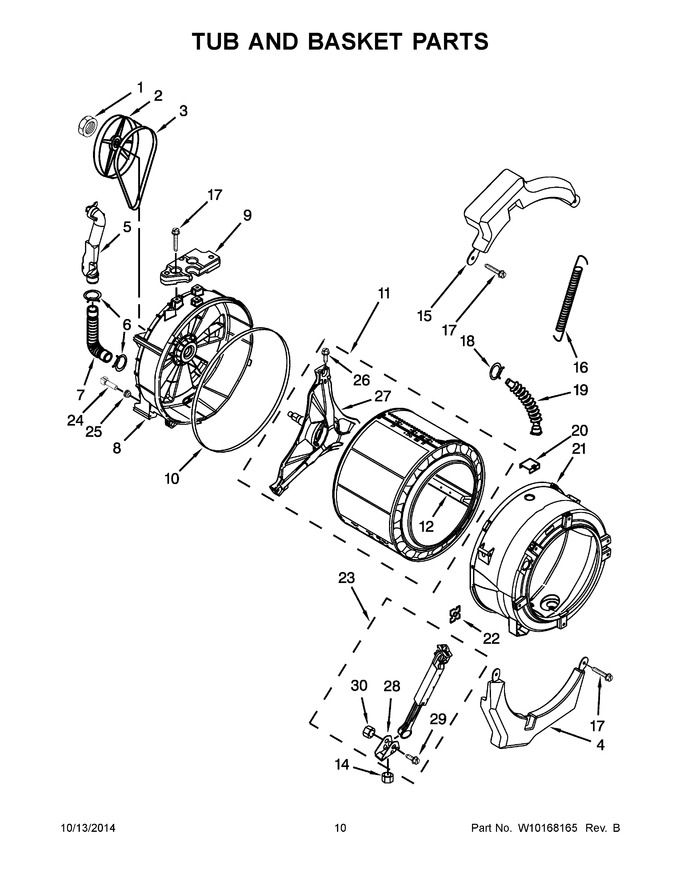

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10283361 | Nut, Pulley (Replaces: 8533999) |
|
Immediately | $ 83.07 | ||||
| 2 | WP8540088C | Pulley (Replaces: 8540088C) |
|
$ 206.14 | |||||
| 3 | WP8540101 | Belt, Drive (Replaces: 8540101) |
|
Immediately | $ 42.79 | ||||
| 4 | W10200297 | Counterweight, Front Lower (Replaces: 8540600) |
|
$ 353.59 | |||||
| 5 | W10112169 | Pipe, Ventilation |
|
$ 187.87 | |||||
| 6 | 8540010 | Clamp, Vent Hose |
|
$ 11.74 | |||||
| 7 | W11398765 | Hose, Exhaust (Replaces: 8540019) |
|
$ 31.69 | |||||
| 8 | 280251 | Tub, Rear (Replaces: W10112658) |
|
Immediately | $ 428.58 | ||||
| 9 | 8540602 | Counterweight, Rear |
|
- | |||||
| 10 | WPW10111158 | Gasket, Tub (Replaces: 8540090) |
|
Immediately | $ 104.09 | ||||
| 11 | 8540451 | Basket, Complete |
|
$ 381.84 | |||||
| 12 | WP8540456 | Baffle, Tub (Replaces: 8540456) |
|
$ 110.22 | |||||
| 14 | 8534084 | Nut, Shock Absorber Mounting |
|
$ 12.14 | |||||
| 15 | 8540598 | Counterweight, Front Upper |
|
- | |||||
| 16 | 280159 | Spring, Suspension (Replaces: W10010360) |
|
$ 112.10 | |||||
| 17 | W11685857 | Screw (Replaces: W10094780) |
|
$ 14.81 | |||||
| 18 | 3363365 | Clamp, Hose |
|
$ 11.29 | |||||
| 19 | WP8540015 | Hose, Exhaust (Replaces: 8540015) |
|
Immediately | $ 43.94 | ||||
| 20 | WP8540092 | Clamp, Tub (Replaces: 8540092) |
|
$ 7.97 | |||||
| 21 | 280251 | Tub, Front (Replaces: W10112659) |
|
Immediately | $ 428.58 | ||||
| 22 | WP8182512 | Nut, Push-in (Replaces: 8540072) |
|
Immediately | $ 7.30 | ||||
| 23 | W10739670 | Shock Absorber (Replaces: W10084740) |
|
$ 367.10 | |||||
| 24 | WPW10467289 | Negative Thermistor Control (Replaces: 8540226) |
|
Immediately | $ 47.80 | ||||
| 25 | W11590578 | Seal, Rubber (Replaces: 8540766) |
|
Immediately | $ 8.37 | ||||
| 26 | WP8540382 | Screw (Replaces: 8540382) |
|
$ 7.30 | |||||
| 27 | 8540457 | Crosspiece Assembly |
|
- | |||||
| 28 | 8540940 | Bracket, Shock Absorber Mounting |
|
$ 11.48 | |||||
| 29 | 8540841 | Bolt, Shock Bracket |
|
- | |||||
| 30 | 8540842 | Nut, Shock Brkt. |
|
- |
