01 - Top And Cabinet Parts

Diagram for 02 - Door And Latch Parts

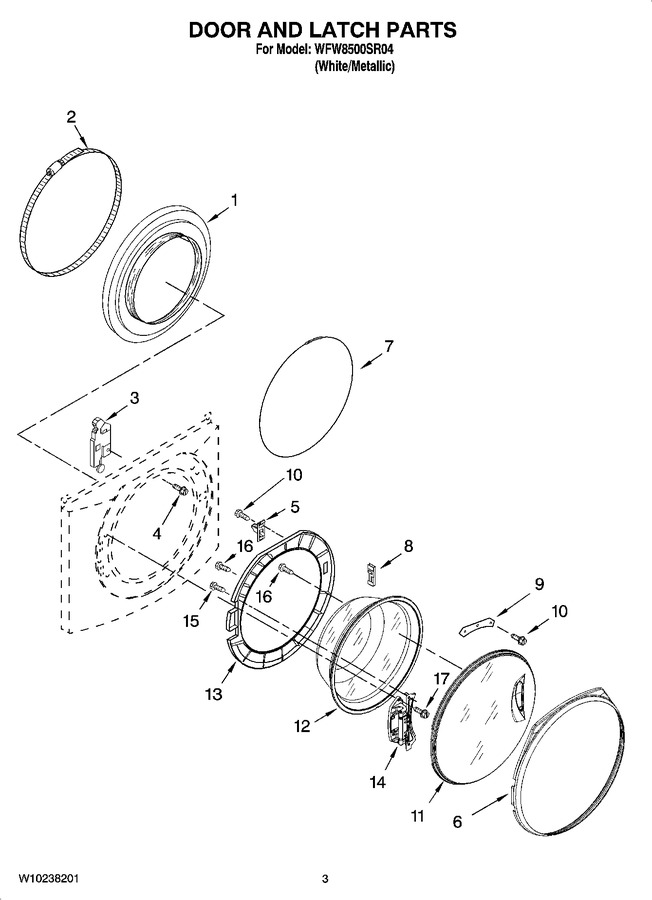

02 - Door And Latch Parts

Diagram for 03 - Control Panel Parts
03 - Control Panel Parts

Diagram for 04 - Dispenser Parts
04 - Dispenser Parts

Diagram for 05 - Pump And Motor Parts
05 - Pump And Motor Parts

Diagram for 06 - Tub And Basket Parts, Optional Parts (not Included)
06 - Tub And Basket Parts, Optional Parts (not Included)


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WPW10111435 Bellow   (Replaces: 8540952) In-Stock Immediately $ 194.57

2 WP8540108 Clamp, Bellow To Tub   (Replaces: 8540108) In-Stock Immediately $ 25.64

3 WPW10253483 Lock, Door   (Replaces: 8540772) In-Stock Immediately $ 222.33

4 WP8540725 Screw   (Replaces: 8540725) Special Order $ 7.68

5 WP8540221 Hook, Door   (Replaces: 8540221) In-Stock Immediately $ 11.80

6 8540859 Trim Ring, Outer Door Appelez-nous -
7 W11032829 Clamp, Bellow To Front Panel   (Replaces: 8540107) In-Stock Immediately $ 21.24

8 WP8540115 Clamp, Support   (Replaces: 8540115) Special Order $ 6.95

9 W11665946 Clamp, Glass (2)   (Replaces: 8540114) Special Order $ 20.86

10 W11230114 Screw   (Replaces: 8540513) Special Order $ 13.28

11 8540896 Frame, Door Front Assembly Appelez-nous -
12 WPW10388315 Glass, Door   (Replaces: W10112078) Special Order $ 328.84

13 WPW10138523 Frame, Door Back Support   (Replaces: W10138523) Special Order $ 224.82

14 8540416 Hinge, Door Appelez-nous -
15 WP8181660 Screw   (Replaces: 8540284) Special Order $ 6.95

16 WP8540282 Screw   (Replaces: 8540282) Special Order $ 11.56

17 WP489442 Screw   (Replaces: W10015090) In-Stock Immediately $ 10.94


    View Diagram in Separate Window     Print Icon   Print Part List
