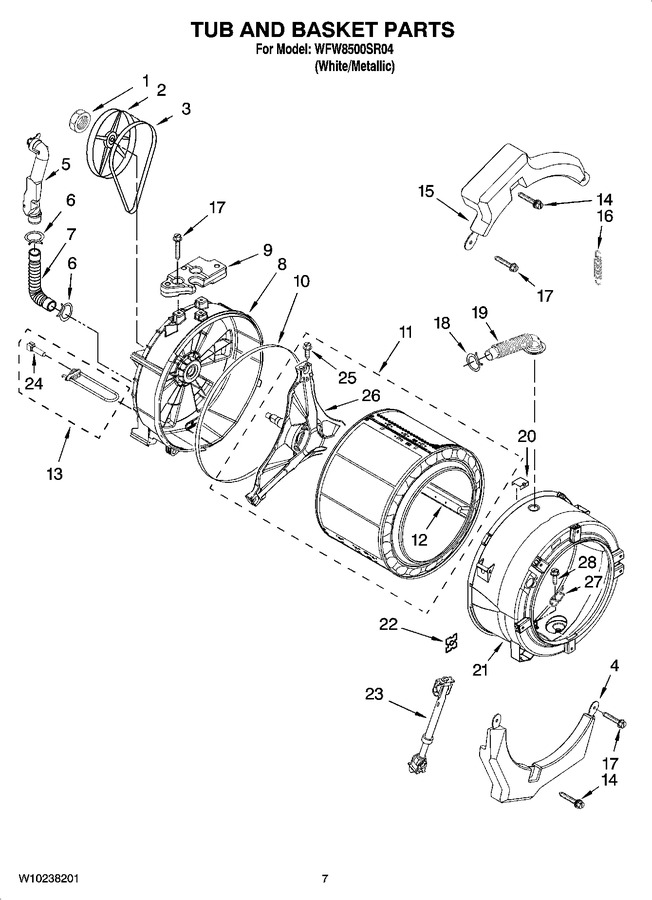

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10283361 | Nut, Pulley (Replaces: 8533999) |
|
Immediately | $ 79.11 | ||||
| 2 | WP8540088C | Pulley (Replaces: 8540088C) |
|
$ 196.32 | |||||
| 3 | WP8540101 | Belt, Drive (Replaces: 8540101) |
|
Immediately | $ 42.79 | ||||
| 4 | W10200297 | Counterweight, Front Lower (Replaces: W10151304) |
|
$ 336.76 | |||||
| 5 | W10112169 | Pipe, Ventilation |
|
$ 178.92 | |||||
| 6 | 8540010 | Clamp, Vent Hose |
|
$ 11.18 | |||||
| 7 | W11398765 | Hose, Exhaust (Replaces: 8540019) |
|
$ 30.18 | |||||
| 8 | W10274605 | Tub, Rear (includes Items 10, 21 & 22) (Replaces: W10202944) |
|
$ 428.62 | |||||
| 9 | W10132097 | Counterweight, Rear |
|
$ 71.27 | |||||
| 10 | WPW10111158 | Gasket, Tub (Replaces: 8540090) |
|
Immediately | $ 99.13 | ||||
| 11 | WP8540357 | Basket, Complete (Replaces: 8540357) |
|
$ 527.28 | |||||
| 12 | WP8540360 | Baffle, Tub (Replaces: 8540360) |
|
Immediately | $ 84.43 | ||||
| 13 | WPW10426377 | Element, Heating (Replaces: W10155115) |
|
$ 303.81 | |||||
| 14 | W10174473 | Bolt Assembly Counterweight Center Hole |
|
- | |||||
| 15 | W10151303 | Counterweight, Front Upper |
|
- | |||||
| 16 | 280159 | Spring, Suspension (set Of 2) (Replaces: W10010360) |
|
$ 106.76 | |||||
| 17 | W11685857 | Bolt, Counterweight Mtg. (Replaces: W10094780) |
|
$ 14.10 | |||||
| 18 | 3363365 | Clamp, Hose |
|
$ 10.75 | |||||
| 19 | WP8540015 | Hose, Exhaust (Replaces: 8540015) |
|
Immediately | $ 41.85 | ||||
| 20 | WP8540092 | Clamp, Tub (Replaces: 8540092) |
|
$ 7.59 | |||||
| 21 | 280255 | Tub, Front (includes Items 8, 10, 22, 27 & 28) (Replaces: W10112664) |
|
Immediately | $ 424.91 | ||||
| 22 | WP8182512 | Nut, Push-in (Replaces: 8540072) |
|
Immediately | $ 6.95 | ||||
| 23 | WPW10163171 | Shock Absorber (4) (Replaces: W10159465) |
|
Immediately | $ 120.09 | ||||
| 24 | WPW10467289 | Negative Thermistor Control (Replaces: 8540226) |
|
Immediately | $ 47.80 | ||||
| 25 | WP8540382 | Screw (Replaces: 8540382) |
|
$ 6.95 | |||||
| 26 | 8540342 | Crosspiece Asm |
|
- | |||||
| 27 | 8540322 | Bracket, Heating Element |
|
- | |||||
| 28 | W11230114 | Screw (Replaces: 8540880) |
|
$ 13.28 | |||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| 350938 | Paint, Pressurized Spray(12 Oz.) (primer, Gray) |
|
- | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 38.21 | |||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 285863 | Drain Extension |
|
Immediately | $ 32.43 | |||||
| W10135699 | Affresh Odor Remover |
|
Immediately | $ 20.92 |
