SELECT A DIAGRAM

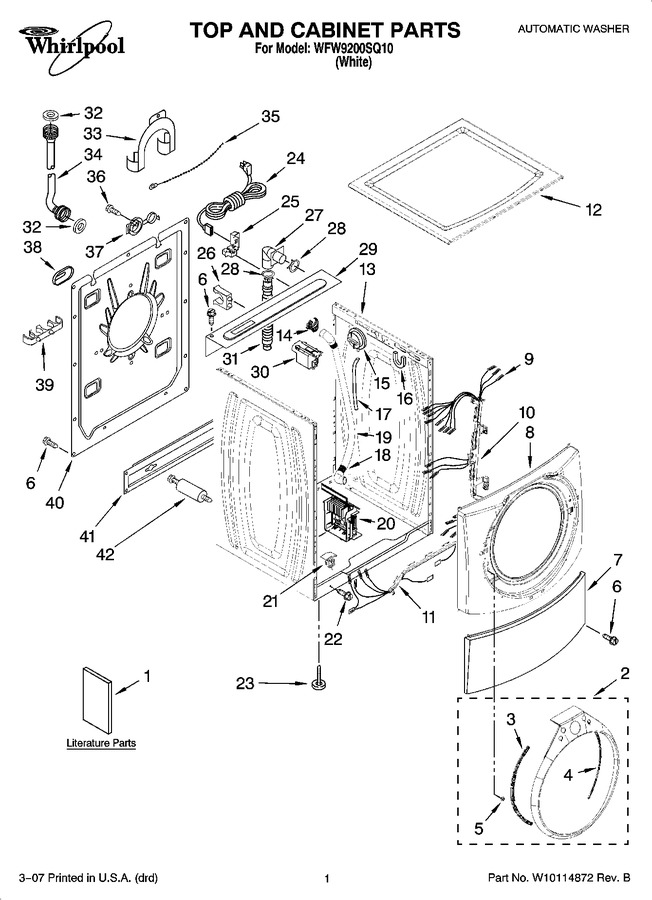

01 - Top And Cabinet Parts


02 - Door And Latch Parts


03 - Control Panel Parts


04 - Dispenser Parts


05 - Tub And Basket Parts


06 - Pump And Motor Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10015910		Energy Guide		Appelez-nous	-
1	8183017		Quick Start Guide		Appelez-nous	-
1	8183011		Use & Care Guide		Appelez-nous	-
1	8183018		Tech Sheet		Appelez-nous	-
2	W10015850		Trim Ring, Teardrop Assembly		Appelez-nous	-
3	W10015770		Bracket, Trim Fixation (left)		Appelez-nous	-
4	W10015780		Bracket, Trim Fixation (right)		Appelez-nous	-
5	WP8183210		Clip, Trim   (Replaces: W10029650)				$ 7.30
6	WP489442		Screw, 8-18 X 5/8   (Replaces: W10015090)			Immediately	$ 11.49
7	W10003640		Toe Panel		Appelez-nous	-
8	W10015580		Panel, Front		Appelez-nous	-
9	W10116562		Harness, Wiring (lower Main) (includes Items 10 & 11)				$ 315.51
10	W10216383		Channel, Harness (side)   (Replaces: W10003460)				$ 141.78
11	W10047920		Channel, Harness (bottom)		Appelez-nous	-
12	W10003900		Top		Appelez-nous	-
13	W10002880		Cabinet				$ 238.73
14	8182209		Retainer, Drain Hose   (Replaces: W10003290)				$ 21.60
15	W11417622		Switch, Pressure   (Replaces: W10065150)			Immediately	$ 163.14
16	WP8181763		Bracket, Spring   (Replaces: W10008890)				$ 83.99
17	WPW10004260		Hose, Pressure Switch   (Replaces: W10004260)			Immediately	$ 7.00
18	WPW10003250		Hose, Drain-inner (includes Item 19)   (Replaces: W10003250)			Immediately	$ 34.59
19	W10004320		Sleeve, Drain Hose		Appelez-nous	-
20	WP8183196		Motor Control Unit   (Replaces: 8183196)				$ 499.77
21	WPW10085220		Microswitch (2)   (Replaces: 8540210)				$ 34.91
22	8540479		Screw, Gounding				$ 9.22
23	W10862938		Foot, Leveling (4)   (Replaces: W10064810)			Immediately	$ 13.22
24	WP8183009		Cord, Power   (Replaces: W10110674)				$ 155.04
25	8182635		Strain Relief, Power Cord   (Replaces: W10110676)				$ 17.56
26	W10022290		Clip, Outer Hose Holder		Appelez-nous	-
27	W11757170		Connector, Drain Hose   (Replaces: W10003260)			Immediately	$ 6.71
28	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 8.52
29	W10110677		Brace, Rear				$ 33.11
30	WPW10367632		Filter, Interference   (Replaces: 8540230)				$ 128.33
31	WP8181737		Hose, Drain (outer)   (Replaces: W10003280)			Immediately	$ 62.50
32	WP16123		Washer, Water Inlet Hose (4) (1-1/16 X 5/8)   (Replaces: 16123)				$ 8.16
33	WPW10280024		U-bend, Drain Hose   (Replaces: 8540021)				$ 83.51
34	WP89503		Hose, Water Inlet (red Coupler)   (Replaces: 8571378)			Immediately	$ 24.09
34	WP89503		Hose, Water Inlet (blue Coupler)   (Replaces: 8571377)			Immediately	$ 24.09
35	WPW10339879		Cable Tie   (Replaces: 3347868)				$ 8.30
36	8182201		Screw, 3 X 8 Mm   (Replaces: 8540727)				$ 14.08
37	W11116978		Sleeve, Cord Support (2)   (Replaces: 8540728)				$ 23.94
38	WP8540268		Cover, Transport   (Replaces: 8540268)				$ 7.30
39	W10003270		Clip, Outer Hose Holder		Appelez-nous	-
40	W10003030		Panel, Rear				$ 156.27
41	WPW10003040		Brace, Transport   (Replaces: W10003040)				$ 101.61
42	W10289554A		Bolt, Shipping (lower (2))   (Replaces: W10003350)				$ 68.21
42	W10289554A		Bolt, Shipping (upper (2))   (Replaces: W10003340)				$ 68.21

    View Diagram in Separate Window       Print Part List
