01 - Top And Cabinet Parts


02 - Door And Latch Parts

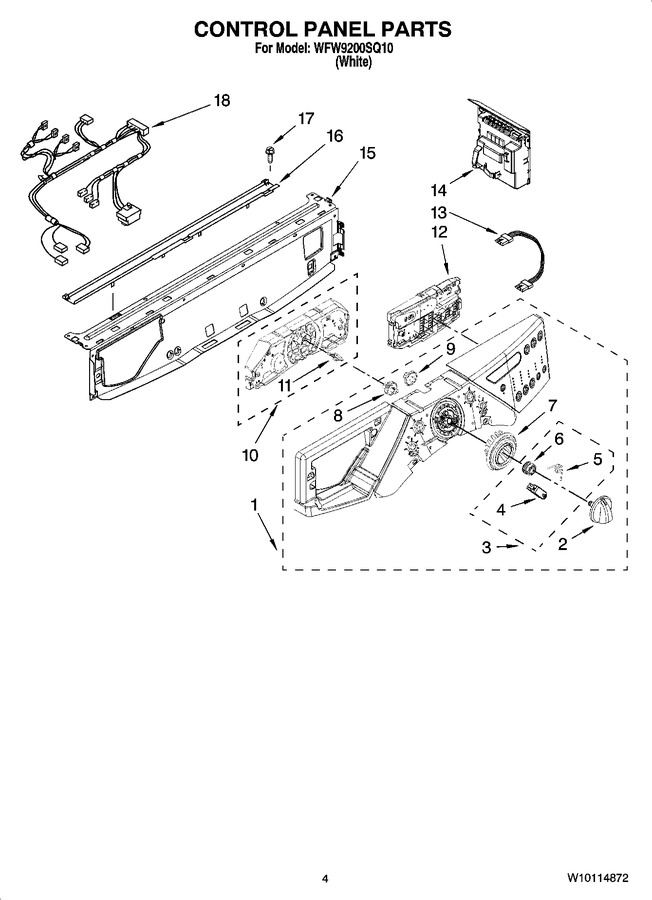

03 - Control Panel Parts


04 - Dispenser Parts


05 - Tub And Basket Parts


06 - Pump And Motor Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8183228		Panel, Control				$ 258.42
2	W10131368		Knob, Control (includes Item 9)				$ 24.28
3	W10133927		Wheel, Detent Kit (includes Item 9)				$ 145.30
4	W10131661		Wheel, Rast (2) (service In Kit Only)		Appelez-nous	-
5	W10131377		Spring, Knob (2) (service In Kit Only)		Appelez-nous	-
6	W10131378		Wheel, Detent (service In Kit Only)		Appelez-nous	-
7	W10131376		Ring, Knob Light (includes Item 9)		Appelez-nous	-
8	W10131381		Wheel, Encoder				$ 80.55
9	W10131382		Retainer, Snap		Appelez-nous	-
10	8183260		User Interface, Center		Appelez-nous	-
11	8183177		Adapter, Encoder Wheel		Appelez-nous	-
12	8183261		User Interface, Right		Appelez-nous	-
13	8183254		Harness, Wiring (user Interface)				$ 176.73
14	W10015490		Microcomputer, Machine Control		Appelez-nous	-
15	W10059240		Brace, Front Top				$ 194.85
16	W10003700		Channel, Water		Appelez-nous	-
17	WP489442		Screw, 8-18 X 5/8   (Replaces: W10015090)			Immediately	$ 10.94
18	W10003450		Harness, Wiring (upper Main)				$ 54.56
