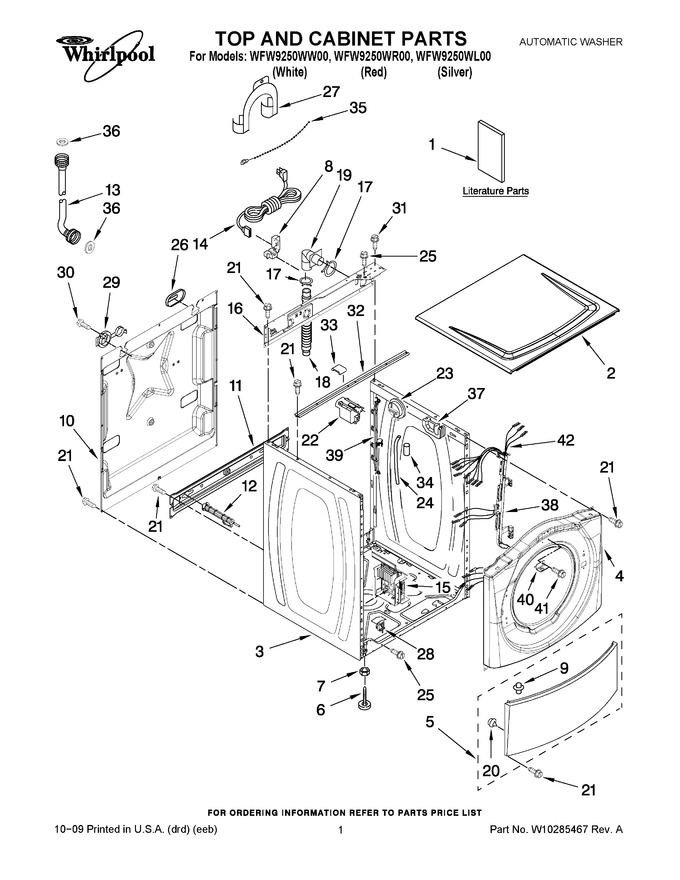

01 - Top And Cabinet Parts


02 - Door And Latch Parts


03 - Control Panel Parts


04 - Dispenser Parts


05 - Pump And Motor Parts


06 - Tub And Basket Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10275729		Use & Care Guide		Appelez-nous	-
1	W10252711		Tech Sheet		Appelez-nous	-
1	W10252712		Energy Guide		Appelez-nous	-
2	W10255320		Top (silver)		Appelez-nous	-
2	WPW10303996		Top (red)   (Replaces: W10255321)				$ 309.78
2	WPW10303994		Top (white)   (Replaces: 8540716)				$ 328.61
3	W10410294		Cabinet (white)   (Replaces: W10245758)				$ 367.09
3	WPW10410323		Cabinet (silver)   (Replaces: W10251611)				$ 323.78
3	W10251612		Cabinet (red)		Appelez-nous	-
4	W10255252		Panel, Front (red)		Appelez-nous	-
4	W10255251		Panel, Front (silver)				$ 155.67
4	8540572		Panel, Front (white)		Appelez-nous	-
5	W10254153		Toe Panel (silver)				$ 176.76
5	WP8540664		Toe Panel (white)   (Replaces: 8540813)				$ 377.11
5	W10254154		Toe Panel (red)		Appelez-nous	-
6	W10862938		Foot, Leveling (4)   (Replaces: W10245373)			Immediately	$ 13.22
7	WP3359452		Nut, Lock (4)   (Replaces: 3359452)			Immediately	$ 7.55
8	8182635		Strain Relief, Power Cord   (Replaces: W10110676)				$ 17.56
9	8518891		Rivet (2)				$ 14.07
10	WPW10258341		Panel, Rear   (Replaces: W10258341)				$ 313.95
11	W10189657		Brace, Transport				$ 91.64
12	W10763471		Bolt, Shipping (4)   (Replaces: W10251449)				$ 42.13
13	WP89503		Hose, Water Inlet (cold Water)   (Replaces: W10194208)			Immediately	$ 24.09
13	WP89503		Hose, Water Inlet (hot Water)   (Replaces: 8571378)			Immediately	$ 24.09
14	W11764783		Cord, Power   (Replaces: W10205499)				$ 43.66
15	WPW10384843		Motor Control Unit   (Replaces: W10289776)			Immediately	$ 309.75
16	W10244560		Brace, Rear				$ 94.10
17	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 8.52
18	WP8181737		Hose, Drain (outer)   (Replaces: W10003280)			Immediately	$ 62.50
19	W11757170		Connector, Drain Hose   (Replaces: W10003260)			Immediately	$ 6.71
20	238614		Bumper (2)				$ 84.79
21	WP489442		Screw, 8-18 X 5/8   (Replaces: W10015090)			Immediately	$ 11.49
22	WPW10367632		Filter, Interference   (Replaces: 8540230)				$ 128.33
23	W10163980		Switch, Pressure				$ 87.59
24	W11252474		Hose, Pressure Switch   (Replaces: 8540294)			Immediately	$ 35.23
25	8540479		Screw, Grounding				$ 9.22
26	WP8540268		Cover, Transport   (Replaces: 8540268)				$ 7.30
27	WPW10280024		U-bend, Drain Hose   (Replaces: 8540021)				$ 83.51
28	WPW10085220		Microswitch (2)   (Replaces: W10085220)				$ 34.91
29	W11116978		Sleeve, Cord Support (2)   (Replaces: 8540728)				$ 23.94
30	8182201		Screw, 3 X 8 Mm   (Replaces: 8540727)				$ 14.08
31	8540329		Screw		Appelez-nous	-
32	WP8540720		Brace, Top (includes Item 33)   (Replaces: 8540720)				$ 85.84
33	WP8283273		Damper, Brace   (Replaces: 8283273)				$ 28.40
34	W11751592		Sleeve, Pressure Switch Hose   (Replaces: 2161302)			Immediately	$ 21.32
35	WPW10339879		Cable Tie   (Replaces: 3347868)				$ 8.30
36	WP16123		Washer, Water Inlet Hose (4) 1-1/16 X 5/8   (Replaces: 3976300)				$ 8.16
37	8540644		Bracket-suspension Spring (2)				$ 85.72
38	W10200785		Harness Channel, Side Front   (Replaces: W10168546)				$ 9.54
39	W10168547		Harness Channel, Side Rear				$ 19.56
40	8540669		Bracket, Console Retainer		Appelez-nous	-
41	WP98006631		Screw   (Replaces: 8533954)				$ 7.30
42	W10239821		Harness, Wiring (lower Main) (includes Item 38)				$ 108.31
