Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WPW10253387 Console (red)   (Replaces: W10253387) Special Order $ 617.78

1 WPW10325314 Console (silver)   (Replaces: W10253386) Special Order $ 509.76

1 W10212726 Console (white) Appelez-nous -
2 W10272152 Cover, Center (red) Appelez-nous -
2 W10272146 Cover, Center (silver) Appelez-nous -
2 W10237305 Cover, Center (white) Appelez-nous -
3 WPW10215781 Knob, Control (white)   (Replaces: W10215781) Special Order $ 59.12

3 WPW10247262 Knob, Control (silver)   (Replaces: W10247262) Special Order $ 56.36

4 W10237301 Light Guide, Cycle Appelez-nous -
5 W10212769 User Interface Appelez-nous -
6 8572039 Seal, User Interface Appelez-nous -
7 W10846488 Brace, Top Front   (Replaces: W10240776) Special Order $ 92.31

8 8540839 Channel, Water Special Order $ 27.81

9 WPW10525362 Microcomputer, Machine Control   (Replaces: W10299981) In-Stock Immediately $ 341.28

10 W10233003 Harness, Wiring (upper Main) (includes Item 39 On Page 1 Special Order $ 110.94

11 WP8540282 Screw   (Replaces: 8540282) Special Order $ 12.14

12 WP489442 Screw, 8-18 X 5/8   (Replaces: W10015090) In-Stock Immediately $ 11.49


    View Diagram in Separate Window     Print Icon   Print Part List

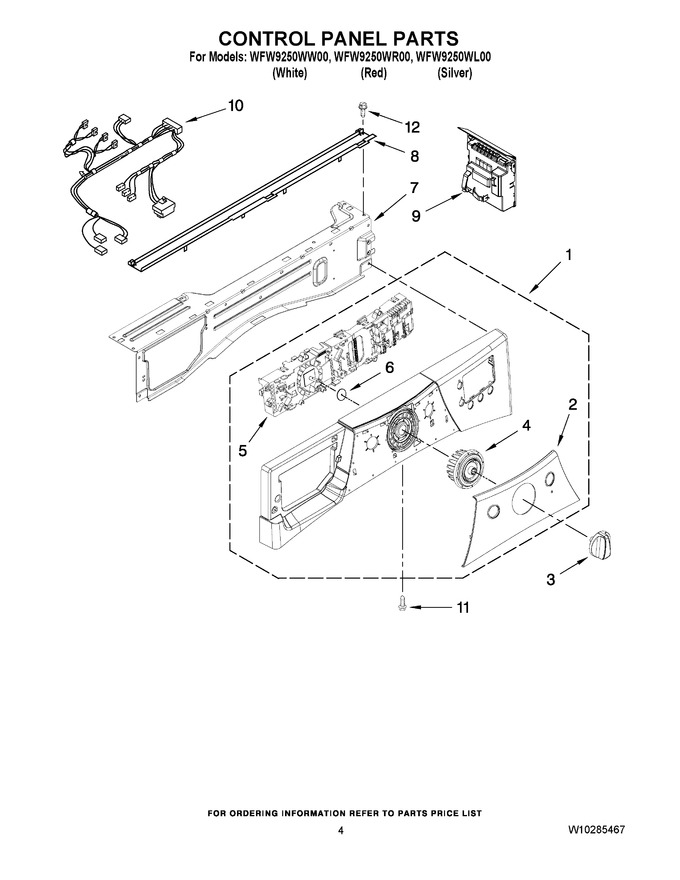

Diagram for WFW9250WL00
