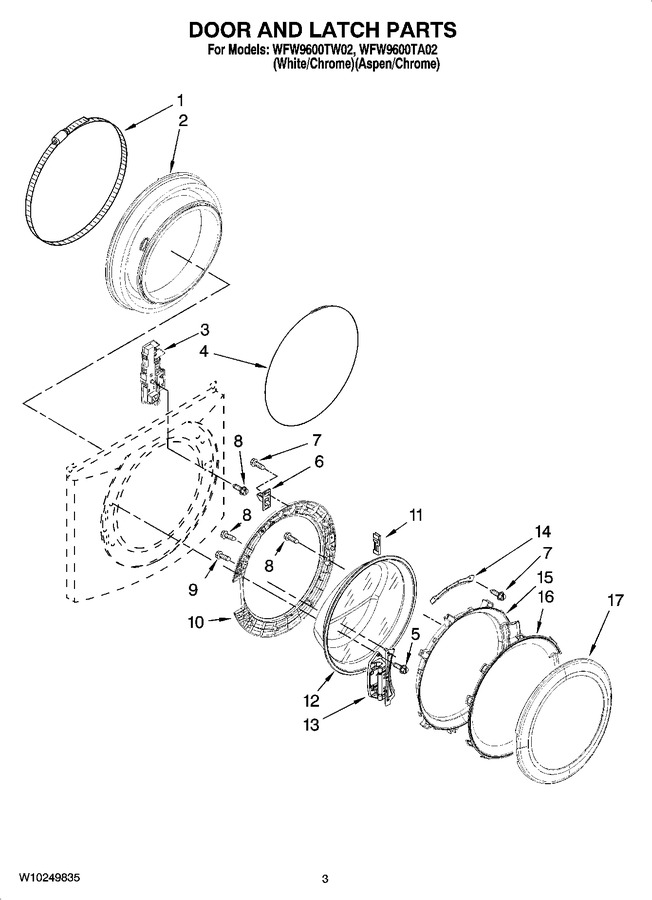

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP8182210 | Clamp, Bellow To Tub (Replaces: 8182210) |
|
Immediately | $ 36.79 | ||||
| 2 | WP8182119 | Bellow (Replaces: 8182119) |
|
Immediately | $ 187.27 | ||||
| 3 | WP8183270 | Lock, Door (Replaces: 8183270) |
|
Immediately | $ 211.98 | ||||
| 4 | W10902779 | Clamp, Bellow To Front Panel (Replaces: 8182211) |
|
Immediately | $ 32.94 | ||||
| 5 | WP8540725 | Screw (Replaces: 8181760) |
|
$ 8.52 | |||||
| 6 | WPW10488048 | Hook, Door (Replaces: 8183198) |
|
Immediately | $ 8.28 | ||||
| 7 | W11230114 | Screw (Replaces: 8181758) |
|
$ 13.94 | |||||
| 8 | WP8540282 | Screw (Replaces: 8181661) |
|
$ 12.14 | |||||
| 9 | WP8181660 | Screw (Replaces: 8181660) |
|
$ 7.30 | |||||
| 10 | WPW10003370 | Frame, Door Back Support (Replaces: 8183195) |
|
$ 231.38 | |||||
| 11 | 8181659 | Clamp, Glass Support |
|
- | |||||
| 12 | 8181655 | Glass, Door |
|
- | |||||
| 13 | WP8183202 | Hinge, Door (Replaces: 8183202) |
|
Immediately | $ 169.21 | ||||
| 14 | W10295703 | Clamp, Glass (2) (Replaces: 8183199) |
|
$ 19.85 | |||||
| 15 | WP8183256 | Frame, Door Front Support (Replaces: 8183256) |
|
$ 306.86 | |||||
| 16 | 8183255 | Screen, Door |
|
$ 165.69 | |||||
| 17 | W10189784 | Trim Ring, Outer Door |
|
- |
