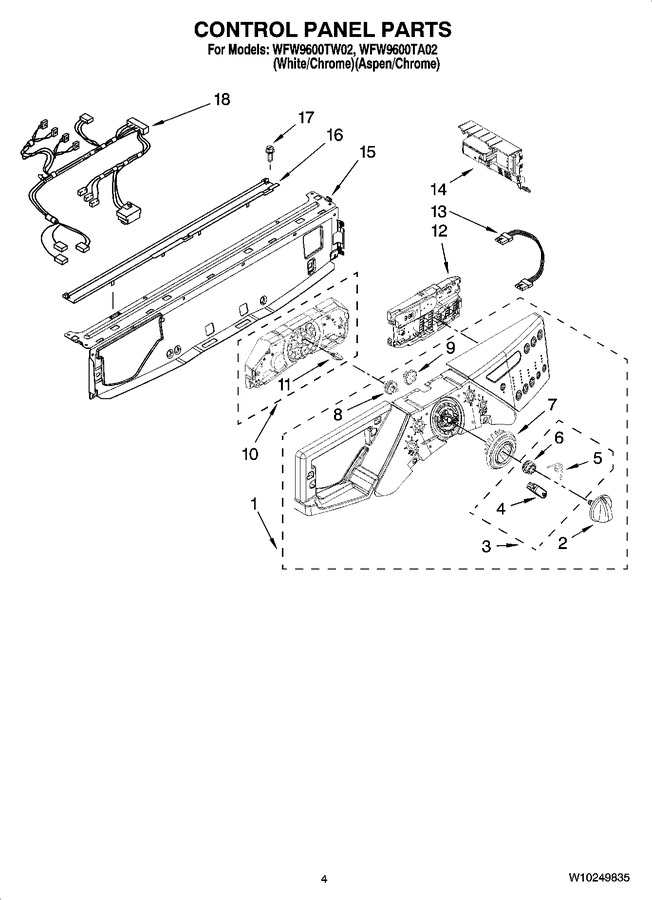

03 - Control Panel Parts


04 - Dispenser Parts


05 - Tub And Basket Parts


06 - Pump And Motor Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10157776		Panel, Control (white)		Appelez-nous	-
1	W10157801		Panel, Control (aspen)				$ 353.86
2	W10131369		Knob, Control (includes Item 9) (white)				$ 24.15
2	W10166961		Knob, Control (includes Item 9) (aspen)				$ 92.28
3	W10133927		Wheel, Detent Kit (includes Item 9)				$ 145.30
4	W10131661		Wheel, Rast (2) (service In Kit Only)		Appelez-nous	-
5	W10131377		Spring, Knob (2) (service In Kit Only)		Appelez-nous	-
6	W10131378		Wheel, Detent (service In Kit Only)		Appelez-nous	-
7	W10131376		Ring, Knob Light (includes Item 9)		Appelez-nous	-
8	W10131381		Wheel, Encoder				$ 84.58
9	W10131382		Retainer, Snap		Appelez-nous	-
10	W10164402		User Interface, Center				$ 271.19
11	8183177		Adapter, Encoder Wheel		Appelez-nous	-
12	W10191963		User Interface, Right		Appelez-nous	-
13	W10250574		Harness, Wiring (user Interface)		Appelez-nous	-
14	W10249839		Microcomputer, Machine Control		Appelez-nous	-
15	W10059240		Brace, Front Top   (Replaces: 8183203)				$ 204.59
16	WP8183204		Channel, Water   (Replaces: 8183204)				$ 171.96
17	WP488729		Screw   (Replaces: 8181756)			Immediately	$ 8.28
18	W10250575		Harness, Wiring (upper Main)		Appelez-nous	-
