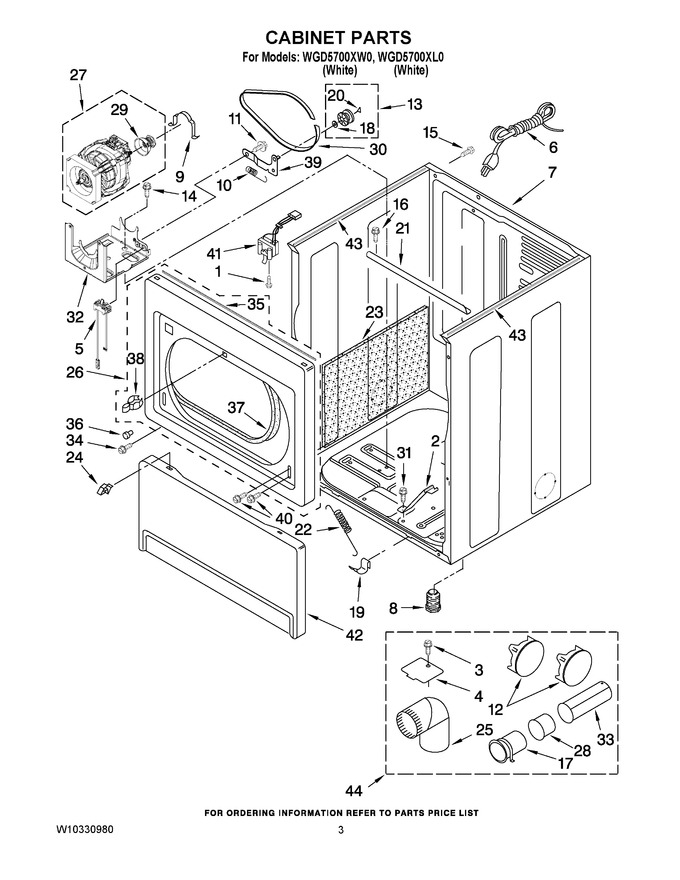

02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8576353 Burner Assembly


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3395530		Screw, 6-20 X 7/8   (Replaces: 697773)				$ 8.57
2	W10181903		Bracket, Burner   (Replaces: 8529757)		Appelez-nous	-
3	WP488729		Screw   (Replaces: 488729)			Immediately	$ 8.28
4	WPW10354249		Plate, Cover   (Replaces: 3394331)				$ 9.41
5	WPW10411937		Switch, Broken (belt)   (Replaces: W10246525)			Immediately	$ 36.06
6	W11222083		Cord, Power   (Replaces: 344020)				$ 126.62
7	W10292891		Cabinet (silver)		Appelez-nous	-
7	W11417441		Cabinet (white)   (Replaces: 8310656)				$ 440.17
8	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 8.55
9	WP660658		Clamp, Motor (2)   (Replaces: 660658)				$ 8.22
10	WPW10446781		Spring, Idler   (Replaces: 3387374)			Immediately	$ 25.80
11	WP3389420		Retainer, Idler   (Replaces: 3389420)				$ 8.62
12	WPW10404617		Plug, Multivent (white)   (Replaces: 49252)				$ 75.58
12	WPW10404617		Plug, Multivent (midnight Grey)   (Replaces: W10151499)				$ 75.58
13	279640		Pulley Assembly   (Replaces: 3388672)			Immediately	$ 32.51
14	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
15	W10850756		Screw Ground   (Replaces: 8533974)				$ 8.20
16	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 8.28
17	WP8563747		Exhaust Pipe & Bracket   (Replaces: 8563747)				$ 95.95
18	WPW10121334		Washer Thrust   (Replaces: W10121334)			Immediately	$ 7.55
19	WPW10291934		Clip (2)   (Replaces: W10291934)				$ 8.14
20	WPW10512946		Tri-ring   (Replaces: 690997)			Immediately	$ 8.80
21	8541400		Bracket, Cabinet		Appelez-nous	-
22	WP3387565		Spring, Door (2)   (Replaces: 3387565)				$ 41.32
23	W10123956		Sound Panel		Appelez-nous	-
24	WP3388229		Retainer   (Replaces: 3388229)			Immediately	$ 8.45
25	WPW10416072		4`` - 90 Elbow   (Replaces: 49026)				$ 28.16
26	697227		Upper Front Panel (white)		Appelez-nous	-
26	W10292893		Upper Front Panel (silver)		Appelez-nous	-
27	279787		Motor, Assembly   (Replaces: 8538263)			Immediately	$ 235.65
28	WPW10331278		Exhaust Pipe (short)   (Replaces: 8563750)				$ 82.90
29	W10837625		Pulley, Motor   (Replaces: 8578220)			Immediately	$ 12.77
30	661570V		Belt, Drive   (Replaces: 3387610)			Immediately	$ 32.81
31	WP693995		Screw 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 7.55
32	W11481730		Bracket, Motor   (Replaces: W10242878)			Immediately	$ 94.84
33	WP8563749		Exhaust Pipe (long)   (Replaces: 8563749)				$ 93.24
34	W10891954		Screw, 8-18 X 3/8   (Replaces: 8281212)		Appelez-nous	-
35	W10312811		Foam Seal				$ 67.73
36	693152		Bumper				$ 11.51
37	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
38	279570		Strike, Door   (Replaces: 696144)			Immediately	$ 8.89
39	W10837240		Idler Bracket   (Replaces: 3388674)			Immediately	$ 35.78
40	WP308685		Screw, 10-16 X 1/2   (Replaces: 3357011)			Immediately	$ 7.87
41	WP3406107		Door Switch Assembly   (Replaces: 3406107)			Immediately	$ 31.20
42	W10292896		Toe Panel (includes. Illus. 36 ) (silver)		Appelez-nous	-
42	WP3406797		Toe Panel (includes. Illus. 36 ) (white)   (Replaces: 697215)				$ 250.25
43	W10336128		Foam, Cabinet   (Replaces: W10307570)				$ 15.08
44	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting) White   (Replaces: 279818)			Immediately	$ 76.65
44	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting) (midnight Grey)   (Replaces: W10186596)			Immediately	$ 76.65
NI	49621		Foot-optional (extended Length Package Of 2) (not Included)   (Replaces: 279810)			Immediately	$ 8.55
