01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8576353 Burner Assembly


05 - Door Parts


06 - Optional Parts (not Included)

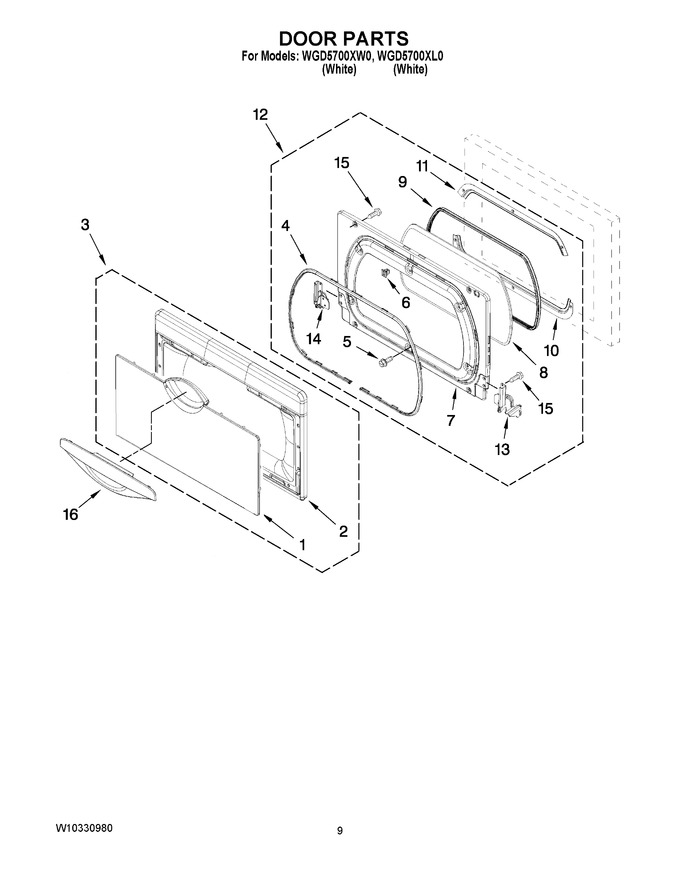

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10284116		Window, Outer Window		Appelez-nous	-
2	W10284117		Door, Outer		Appelez-nous	-
3	W10284142		Assembly, Outer Door (silver)		Appelez-nous	-
3	W10284124		Assembly, Outer Door (white)		Appelez-nous	-
4	WPW10354795		Seal, Door   (Replaces: W10284123)				$ 130.12
5	WP3373329		Screw, 10-16 X 1/2   (Replaces: 3393258)				$ 8.52
6	279570		Assembly, Door Catch   (Replaces: 3398175)			Immediately	$ 8.89
7	W10284133		Door, Inner		Appelez-nous	-
8	WPW10284121		Door, Glass   (Replaces: W10284121)				$ 263.61
9	W11676508		Seal, Window   (Replaces: W10284122)				$ 28.37
10	W10284120		Retainer, Lower Glass		Appelez-nous	-
11	W10284119		Retainer, Upper, Glass		Appelez-nous	-
12	W11376676		Assembly, Inner Door (silver)   (Replaces: W10330870)		Appelez-nous	-
12	W11376676		Assembly, Inner Door (white)   (Replaces: W10284179)		Appelez-nous	-
13	W11371722		Hinge, Door (r.h.)   (Replaces: W10284141)				$ 106.42
14	W11376139		Hinge, Door (l.h.)   (Replaces: W10284140)				$ 106.42
15	WP308685		Screw, 10-16 X 1/2   (Replaces: 3357011)			Immediately	$ 7.87
16	WPW10284093		Handle (silver)   (Replaces: W10284094)				$ 105.29

    View Diagram in Separate Window       Print Part List
