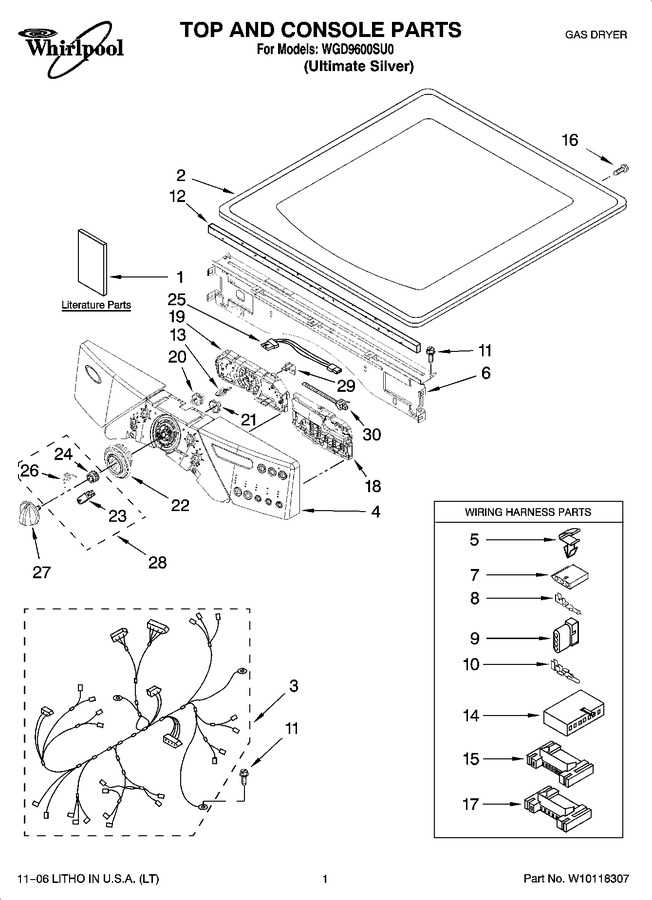

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8576353 Burner Assembly


05 - Door Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10110851		Use & Care Guide		Appelez-nous	-
1	W10110638		Tech Sheet		Appelez-nous	-
1	W10111226		Guide, Quick Start		Appelez-nous	-
2	W10114785		Top				$ 122.15
3	8579737		Harness, Main				$ 123.10
4	W10116697		Panel, Console (includes Illus: 20,21,22,27,28.)		Appelez-nous	-
5	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
6	W10006840		Bracket, Console (includes No.12)		Appelez-nous	-
7	353424		Connector, Sensor				$ 18.95
8	WP94614		Terminal (female)   (Replaces: 94614)				$ 8.05
9	3936144		Plug, Terminal				$ 21.22
10	94613		Terminal		Appelez-nous	-
11	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 8.28
12	W10112267		Foam-seal				$ 97.53
13	W10012480		Array-power   (Replaces: W10030070)				$ 17.15
14	3936150		Connector, 7-circuit				$ 77.60
15	3395683		Connector (motor)			Immediately	$ 54.45
16	8281225		Screw, 8-18 X 1/2		Appelez-nous	-
17	2203186		Connector, 5-circuit				$ 13.18
18	W10031430		User Interface (right)		Appelez-nous	-
19	W10048210		User Interface (center) (includes Illus: 13.)		Appelez-nous	-
20	W10012430		Encoder-wheel				$ 21.85
21	W10012440		Retainer-snap				$ 12.36
22	W10012410		Knob, Light Ring (includes: Item 21)				$ 21.84
23	W10012810		Rast, Wheel Assy. (service Only With Item. 28)		Appelez-nous	-
24	W10012460		Detent Wheel (service Only With Illus. 28)		Appelez-nous	-
25	W10095960		Harness, Communication				$ 142.18
26	W10012820		Knob, Spring (service Only With Item 28)		Appelez-nous	-
27	W10116704		Knob, Control (includes: Item 21)				$ 36.33
28	280230		Encoder, Wheel Kit (includes Items: 23, 24, & 26)				$ 141.57
29	W10112268		Clip, Harness		Appelez-nous	-
30	WP3391018		Tie, Cable   (Replaces: 3391018)				$ 33.43
