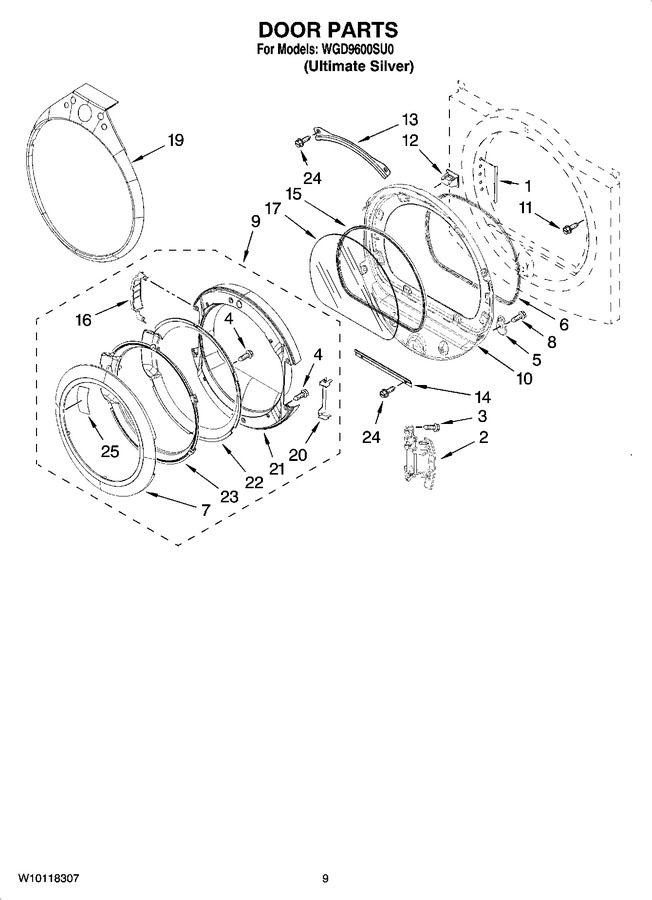

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10085210		Label, Hinge Hole				$ 80.98
2	WPW10310366		Door Hinge Assembly   (Replaces: 8577250)			Immediately	$ 246.11
3	W10017850		Screw, 10-24 X 3/64		Appelez-nous	-
4	W10850046		Screw, 8-18 X 5/8   (Replaces: 9742177)			Immediately	$ 7.19
5	W10048910		Screw-plug		Appelez-nous	-
6	WPW10139457		Seal-door   (Replaces: 8577821)				$ 127.89
7	W10048070		Handle-ring & Pad Assembly		Appelez-nous	-
8	WP308685		Screw, 10-16 X 1/2   (Replaces: 3393008)			Immediately	$ 7.87
9	8579520		Door Assembly (outer)		Appelez-nous	-
10	8578229		Door Assembly (inner) (includes Illus. 12)				$ 75.57
11	WP355515		Screw, 8-18 X 11/16   (Replaces: 355515)				$ 7.67
12	279570		Door Catch Assembly   (Replaces: 3398175)			Immediately	$ 8.89
13	8519356		Retainer-window (upper)		Appelez-nous	-
14	W10822054		Retainer-window (lower)   (Replaces: 8519354)			Immediately	$ 17.15
15	8579662		Gasket, Window				$ 106.25
16	8578152		Cover-hinge, Stationary (rh)		Appelez-nous	-
16	8578153		Cover-hinge, Stationary (lh)		Appelez-nous	-
17	8566254		Window				$ 127.75
19	W10099330		Tear-drop Trim & Clip Assembly		Appelez-nous	-
20	W10074630		Door Shield		Appelez-nous	-
21	8578157		Door-intermediate		Appelez-nous	-
22	8578156		Door Mask				$ 50.53
23	8578155		Door Screen		Appelez-nous	-
24	WP3373329		Screw, 10-16 X 3/8   (Replaces: 3393258)				$ 7.68
25	8580116		Pad-handle		Appelez-nous	-
	72302		Paint, Touch-up (1/2oz.) (black)		Appelez-nous	-
	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
	8212605		Paint, Pressurized Spray (12 Oz.) (ultimate Silver)				$ 16.01
	786020		Paint, Pressurized Spray (12 Oz.) (black)		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
	4392899		Paint, Touch-up (1/2oz.) (biscuit)			Immediately	$ 26.45
	8212450A		Dry Rack Assembly   (Replaces: 8521957)			Immediately	$ 83.99
	4392067		Kit, Dryer Repair   (Replaces: 80047)			Immediately	$ 62.25
	8541503		Kit, Stack Assembly			Immediately	$ 43.18
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	8579666ARP		Kit, Door Reversing   (Replaces: 8579666A)				$ 61.65
	8529894		Kit, Hold Down		Appelez-nous	-
	786032		Paint, Bulk (1 Qt.) (black (uncut))		Appelez-nous	-
	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
