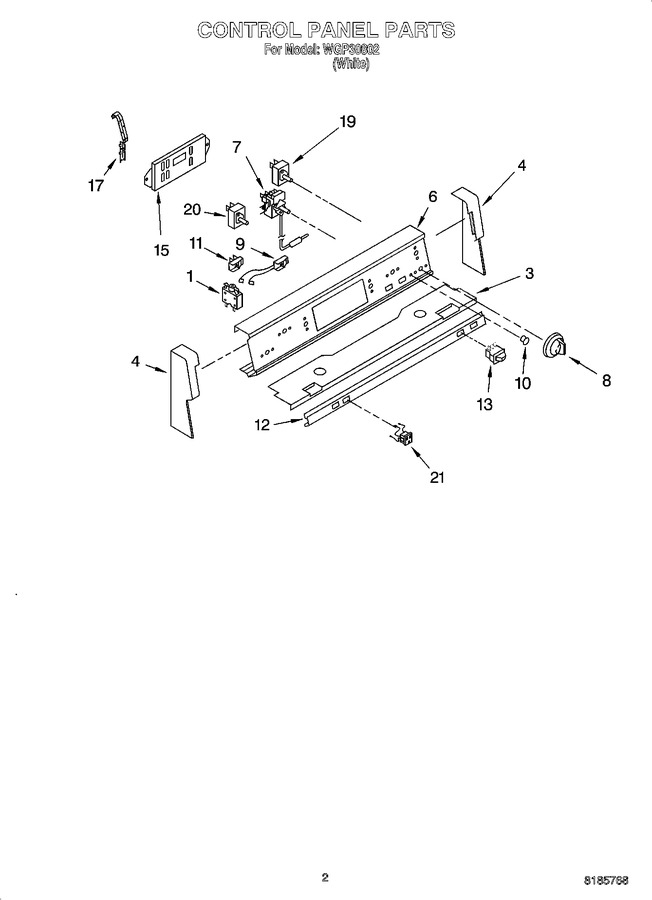

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3191073 | Breaker, 15 Amp |
|
- | |||||
| 3 | WP3400832 | Screw (3) 8 X 3/8 (Replaces: 3196168) |
|
Immediately | $ 8.18 | ||||
| 3 | 9780265 | Screw (2) 10-16 X 3/8 |
|
- | |||||
| 3 | 9752439 | Base, Console |
|
- | |||||
| 4 | 9752423FW | End Cap (right) |
|
- | |||||
| 4 | 9752422FW | End Cap (left) |
|
- | |||||
| 4 | 9780265 | Screw (2) 10 X 3/8 |
|
- | |||||
| 6 | 9780852 | Screw, (2) 8 X 3/8 |
|
- | |||||
| 6 | 9753904 | Panel, Control |
|
- | |||||
| 7 | 9781315 | Thermostat |
|
$ 238.09 | |||||
| 8 | WP9752405FW | Knobs, Control (6) (Replaces: 9752405FW) |
|
$ 23.05 | |||||
| 9 | 9780801 | Light, Indicator (oven) |
|
- | |||||
| 9 | 9780802 | Light, Indicator (thermostat) |
|
- | |||||
| 10 | WP9750343 | Lens, Indicator (4) (Replaces: 9752589) |
|
Immediately | $ 6.00 | ||||
| 11 | 313102 | Light, Indicator (burners) (2) |
|
$ 66.48 | |||||
| 12 | 9752442PW | Trim Strip |
|
- | |||||
| 13 | 3191100FW | Switch, Oven Light |
|
- | |||||
| 15 | 9780265 | Screw (2) 10 X 3/8 |
|
- | |||||
| 15 | 9781716 | Timer |
|
- | |||||
| 17 | 9781754 | Bracket, Timer |
|
- | |||||
| 19 | WP9750641 | Infinite Switch (2400w (2)) (Replaces: 9750641) |
|
Immediately | $ 125.00 | ||||
| 19 | WP3400882 | Screw (10) (Replaces: 3400816) |
|
Immediately | $ 7.55 | ||||
| 19 | WP9750638 | Infinite Switch (1400w (2)) (Replaces: 9750638) |
|
Immediately | $ 170.81 | ||||
| 20 | W11245710 | Screw , (2) 8-18 X 3/8 (Replaces: 9780274) |
|
Immediately | $ 14.75 | ||||
| 20 | 9781313 | Switch, Selector |
|
- | |||||
| 21 | 9751480FW | Outlet, Untimed |
|
- |
