01 - Cooktop Parts


02 - Control Panel Parts

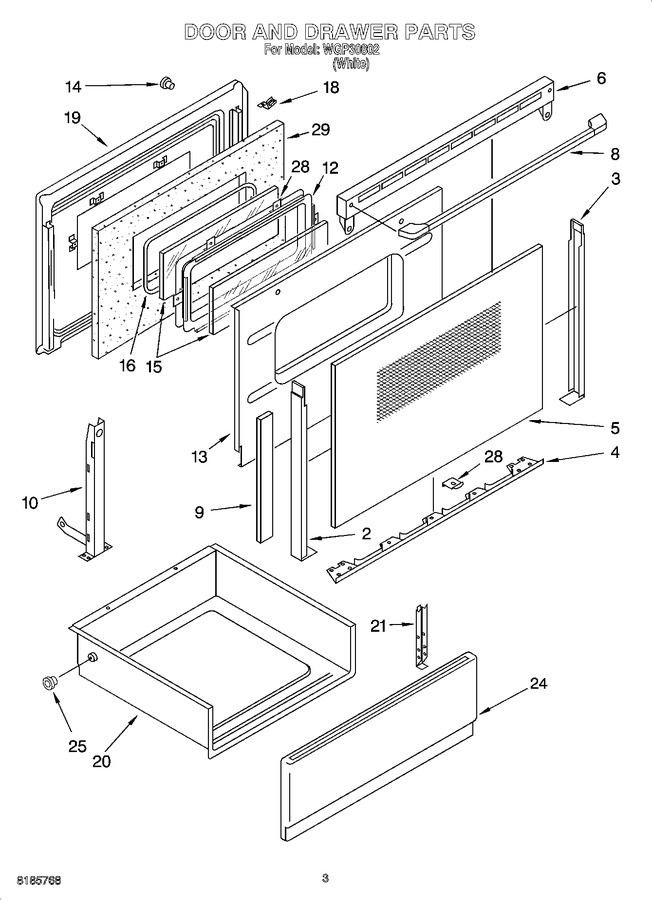

03 - Door And Drawer Parts


04 - Oven Chassis Parts


05 - Oven Parts, Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	9782003PW		Trim, Door-left		Appelez-nous	-
3	9782004PW		Trim, Door-right		Appelez-nous	-
4	9781209PW		Trim, Door Bottom		Appelez-nous	-
4	9780265		Screw (4) 10-16 X 3/8		Appelez-nous	-
5	9781781PW		Glass, Door Front		Appelez-nous	-
6	9753498GW		Vent, Door		Appelez-nous	-
6	9780265		Screw (2) 10-16 X 3/8		Appelez-nous	-
6	9781659		Gasket, Door Vent		Appelez-nous	-
8	WPW10001180		Screw, (4)   (Replaces: 9781072)				$ 8.94
8	9751136PW		Handle, Door		Appelez-nous	-
9	9781449		Gasket, Door (4)		Appelez-nous	-
10	WP9782033		Hinge, Door R Or L   (Replaces: 9782033)			Immediately	$ 259.99
10	9780265		Screw, (4)		Appelez-nous	-
12	9781601		Frame, Window		Appelez-nous	-
13	9781588		Shield Door		Appelez-nous	-
14	238614		Bumper, Door   (Replaces: 9780771)				$ 84.79
15	WP9781654		Glass, Pyro Door   (Replaces: 9781654)			Immediately	$ 125.10
16	9781591		Seal, Window		Appelez-nous	-
18	9780265		Screw (2)		Appelez-nous	-
18	9750676		Retainer, Door Pnl		Appelez-nous	-
19	9781599GM		Liner, Door		Appelez-nous	-
20	9780583		Drawer & Roller		Appelez-nous	-
21	WP90296		Clip   (Replaces: 90296)				$ 8.24
21	9750169		Bracket, Drawer		Appelez-nous	-
21	9780272		Screw (4)		Appelez-nous	-
24	9782108PW		Front, Drawer		Appelez-nous	-
25	814229		Roller, Support   (Replaces: 423713)			Immediately	$ 70.47
28	9781502		Spacer, Door (8)		Appelez-nous	-
28	9780265		Screw, (8) 10 X 3/8		Appelez-nous	-
29	9754007		Insulation, Door		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
