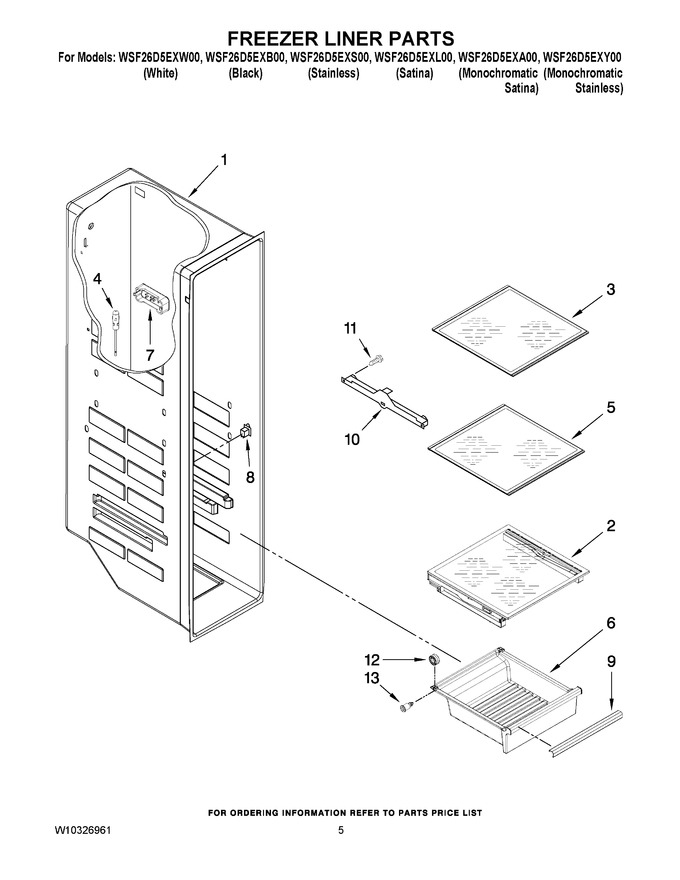

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not Aseviceable Part)		Appelez-nous	-
2	WPW10269181		Cover Assy   (Replaces: W10269181)				$ 266.97
3	W10256768		Shelf, Glass Upper				$ 80.97
4	W11724692		Thermistor   (Replaces: W10280386)			Immediately	$ 33.60
5	W10261035		Shelf, Glass Lower				$ 81.49
6	WPW10260985		Pan, Freezer (also Order 9, 12, & 13)   (Replaces: W10260985)				$ 156.89
7	W10425253		Cover, Thermistor   (Replaces: W10323643)		Appelez-nous	-
8	W11457217		Switch, Rocker Arm   (Replaces: 1115373)				$ 40.09
9	W11236850		Trim, Handle   (Replaces: W10260986)		Appelez-nous	-
10	W10845583		Slide, Container (right Side)   (Replaces: 1119293)				$ 130.12
10	W10845585		Slide, Container (left Side)   (Replaces: 1119237)				$ 139.41
11	718257		Screw   (Replaces: 489100)		Appelez-nous	-
12	W11164152		Roller   (Replaces: W10278139)			Immediately	$ 15.74
13	WPW10257246		Axle, Roller   (Replaces: W10257246)				$ 36.54
