SELECT A DIAGRAM
New Model Search:

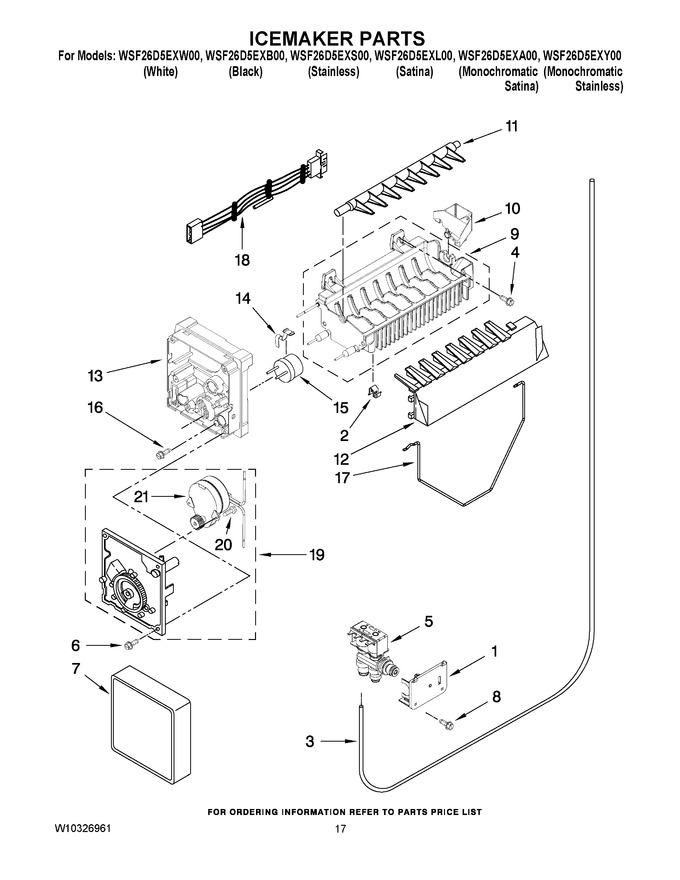

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10847867 | Bracket, Valve (Replaces: W10237915) |
|
$ 80.75 | |||||
| 2 | WP628379 | Clip, Fuse (Replaces: 628379) |
|
$ 11.10 | |||||
| 3 | W10823511 | Water Tube (Replaces: W10175644) |
|
Immediately | $ 32.41 | ||||
| 4 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 5 | WPW10238102 | Filter Valve Asm (Replaces: W10238102) |
|
$ 276.58 | |||||
| 6 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 7 | WPW10289690 | Cover (Replaces: W10289690) |
|
Immediately | $ 8.82 | ||||
| 8 | WPW10141625 | Screw (2) (Replaces: W10141625) |
|
$ 22.22 | |||||
| 9 | WPW10300025 | Mold & Heater Assembly (also Order 542638 (Replaces: W10136595) |
|
Immediately | $ 201.92 | ||||
| 10 | W10122561 | Cup, Water Fill |
|
$ 29.16 | |||||
| 11 | W10318914 | Ejector (Replaces: 2323524) |
|
$ 38.08 | |||||
| 12 | WPW10122563 | Ice Striper (Replaces: W10122563) |
|
$ 99.42 | |||||
| 13 | WP2195914 | Support (Replaces: 2195914) |
|
$ 109.80 | |||||
| 14 | WP2315522 | Retainer, Thermostat (Replaces: 2315522) |
|
$ 11.60 | |||||
| 15 | WP2321258 | Thermostat (also Order 542369 Cement Alumilastic) (Replaces: 2321258) |
|
$ 103.93 | |||||
| 16 | 8533917 | Screw |
|
$ 14.04 | |||||
| 17 | W11807379 | Shut Off Arm (Replaces: 2304352) |
|
Immediately | $ 63.21 | ||||
| 18 | W10242433 | Harness, Wiring |
|
$ 137.22 | |||||
| 19 | 8201515 | Module Assembly (Replaces: 626691) |
|
Immediately | $ 141.64 | ||||
| 20 | 489136 | Screw |
|
$ 10.80 | |||||
| 21 | N/P | Motor (not Serviced, Order No.19) |
|
- | |||||
| 100 | WPW10300022 | Complete Icemaker Assembly (Replaces: W10122556) |
|
Immediately | $ 259.86 |
