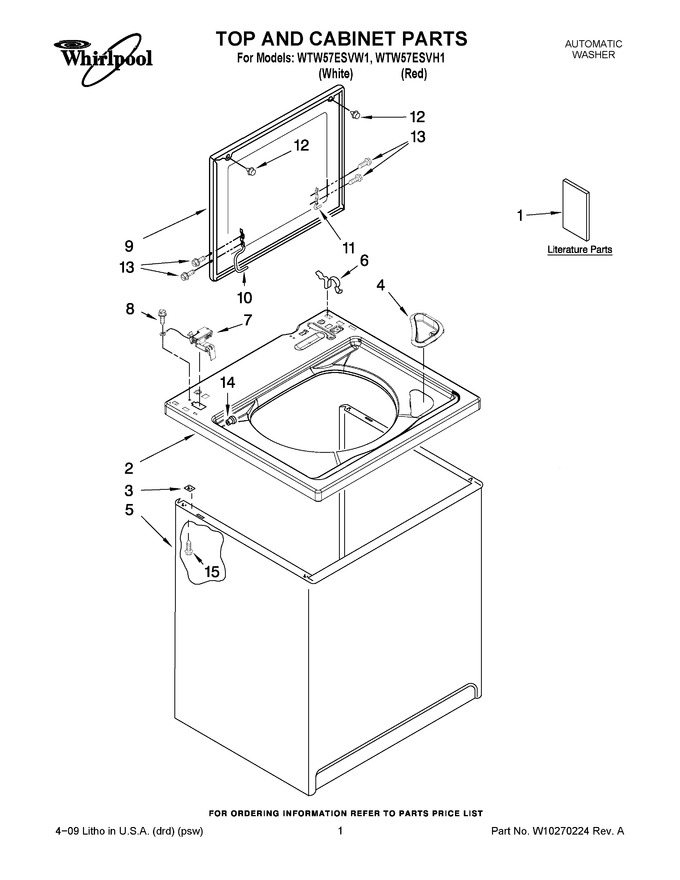

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4313896 | Manual, Washer |
|
$ 33.26 | |||||
| 1 | W10248227 | Wiring Diagram |
|
- | |||||
| 1 | W10196538 | Load Sense Info Sheet |
|
- | |||||
| 1 | W10200890 | Installation Instructions (english/french) |
|
- | |||||
| 1 | W10200891 | Installation Instructions (spanish) |
|
- | |||||
| 1 | W10200828 | Use & Care Guide (english/french) |
|
- | |||||
| 1 | W10200829 | Use & Care Guide (spanish) |
|
- | |||||
| 1 | W10200856 | Feature Sheet (english/french) |
|
- | |||||
| 1 | W10200857 | Feature Sheet (spanish) |
|
- | |||||
| 1 | W10062904 | Energy Guide |
|
- | |||||
| 2 | W10205691 | Top (red) |
|
$ 100.41 | |||||
| 2 | W10194572 | Top (white) |
|
$ 138.26 | |||||
| 3 | WP62750 | Spacer, Cabinet To Top (4) (Replaces: 62750) |
|
Immediately | $ 8.07 | ||||
| 4 | WPW10192089 | Dispenser, Bleach (Replaces: W10192089) |
|
Immediately | $ 8.36 | ||||
| 5 | W10205707 | Cabinet (red) |
|
$ 98.50 | |||||
| 5 | 63424 | Cabinet (white) |
|
$ 388.52 | |||||
| 6 | WP62780 | Clip, Top & Cabinet & Rear Panel (2) (Replaces: 62780) |
|
Immediately | $ 8.19 | ||||
| 7 | WP8318084 | Switch, Lid (Replaces: 8318084) |
|
Immediately | $ 40.65 | ||||
| 8 | WP3351614 | Screw, Ground (Replaces: 3351614) |
|
Immediately | $ 7.30 | ||||
| 9 | W10205703 | Lid (red) |
|
- | |||||
| 9 | W10171313 | Lid (white) |
|
- | |||||
| 10 | W10225136 | Hinge, Lid (l.h.) |
|
$ 26.22 | |||||
| 11 | WP91770 | Hinge, Lid (r.h.) (Replaces: 91770) |
|
$ 28.82 | |||||
| 12 | WP9724509 | Bumper, Lid (2) (Replaces: 9724509) |
|
Immediately | $ 8.33 | ||||
| 13 | WPW10119828 | Screw, Lid Hinge Mounting (4) (Replaces: W10119828) |
|
Immediately | $ 7.55 | ||||
| 14 | 8319539 | Bearing, Lid Hinge (2) |
|
$ 5.51 | |||||
| 15 | W10165554 | Screw, 10-16 X 3/8 (4) |
|
$ 11.55 |
