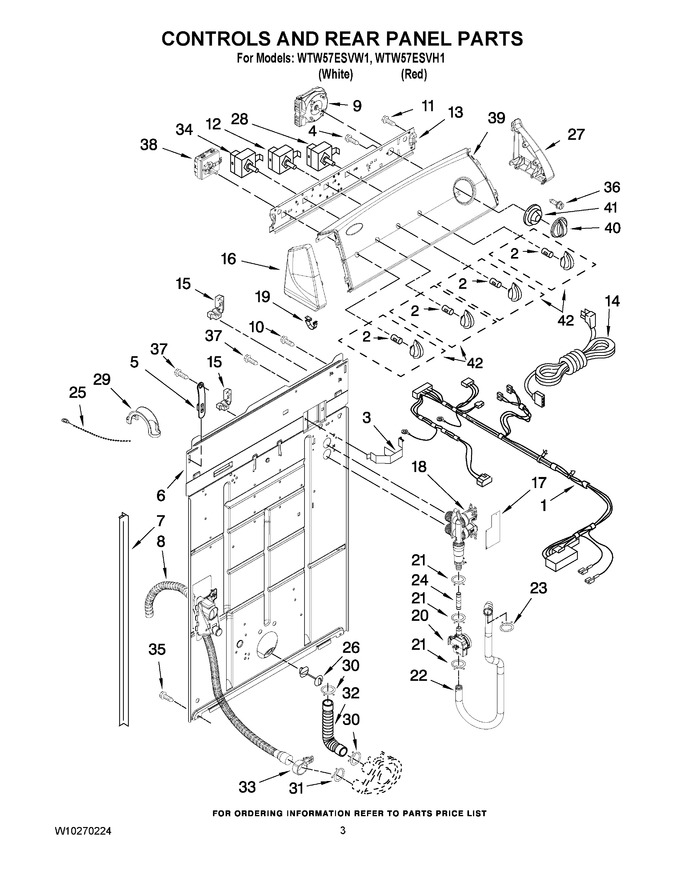

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10244926 | Harness, Wiring (for Detail See Pages 9 & 10) |
|
$ 108.72 | |||||
| 2 | WP8536939 | Clip, Knob (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 3 | 8055003 | Clip, Harness & Pressure Hose |
|
$ 36.24 | |||||
| 4 | 3400073 | Screw, Ground |
|
- | |||||
| 5 | WP8568314 | Strap, Console (2) (Replaces: 8568314) |
|
$ 8.17 | |||||
| 6 | W10194451 | Panel, Rear |
|
$ 149.72 | |||||
| 7 | WP62747 | Pad, Rear Panel (Replaces: 62747) |
|
$ 27.57 | |||||
| 8 | WPW10189267 | Drain Hose Assembly (includes Item 33) (Replaces: W10189267) |
|
Immediately | $ 70.58 | ||||
| 9 | WPW10177827 | Timer, Control (60 Hz.) (motor Not A Service Part) (Replaces: W10177827) |
|
Immediately | $ 370.38 | ||||
| 10 | WP3351614 | Screw, Ground (Replaces: 3351614) |
|
Immediately | $ 7.30 | ||||
| 11 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 12 | WPW10168257 | Switch-rotary (Replaces: 3949180) |
|
$ 140.00 | |||||
| 13 | 8566003 | Bracket, Control |
|
$ 64.58 | |||||
| 14 | W10820044 | Cord, Power (includes Item 15) (Replaces: 8578842) |
|
$ 149.87 | |||||
| 15 | 3952821 | Strain Relief, Power Cord |
|
- | |||||
| 16 | W10205959 | Cap, End (l.h.) (includes Item 19) (red) |
|
- | |||||
| 16 | WP8565957 | Cap, End (l.h.) (includes Item 19) (white) (Replaces: 8566035) |
|
$ 64.76 | |||||
| 17 | W10245838 | Shield, Suds |
|
- | |||||
| 18 | WPW10175893 | Valve, Water Inlet (Replaces: W10175893) |
|
Immediately | $ 218.00 | ||||
| 19 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.59 | ||||
| 20 | W10176591 | Flowmeter |
|
$ 20.70 | |||||
| 21 | W10185367 | Clamp, Hose |
|
$ 6.65 | |||||
| 22 | W11087528 | Hose, Flowmeter To Tub Ring (Replaces: W10166732) |
|
$ 69.97 | |||||
| 23 | WP596669 | Clamp, Hose (Replaces: W10117298) |
|
Immediately | $ 8.82 | ||||
| 24 | W10166731 | Hose, Valve To Flowmeter |
|
$ 72.10 | |||||
| 25 | WPW10339879 | Cable Tie (Replaces: 3347868) |
|
$ 8.30 | |||||
| 26 | WP8519200 | Support, Rear Panel (Replaces: 8519200) |
|
Immediately | $ 19.85 | ||||
| 27 | W10205953 | Cap, End (r.h.) (includes Item 19) (red) |
|
$ 43.09 | |||||
| 27 | WP8565954 | Cap, End (r.h.) (includes Item 19) (white) (Replaces: 8566032) |
|
$ 65.84 | |||||
| 28 | W10180780 | Switch, Rotary |
|
$ 238.12 | |||||
| 29 | WP8577378 | U-bend, Drain Hose (Replaces: 8577378) |
|
$ 8.37 | |||||
| 30 | WP616099 | Clamp, Hose (Replaces: 3363366) |
|
Immediately | $ 8.58 | ||||
| 31 | WP285655 | Clamp, Hose (Replaces: 8317496) |
|
Immediately | $ 8.81 | ||||
| 32 | 285871 | Hose, Pump To Tub (includes Item 30) (Replaces: 3951449) |
|
Immediately | $ 28.99 | ||||
| 33 | 8541668 | Clamp, Hose |
|
$ 22.32 | |||||
| 34 | WPW10168257 | Switch-rotary (Replaces: 3949180) |
|
$ 140.00 | |||||
| 35 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 62863) |
|
$ 8.25 | |||||
| 36 | WP3400818 | Screw, Timer Mounting (Replaces: 3400818) |
|
$ 8.81 | |||||
| 37 | WP9740848 | Screw, 8-18 X 1/2 (Replaces: 9740848) |
|
Immediately | $ 8.58 | ||||
| 38 | W10248240 | Atc-auto Load Sensing Switch |
|
$ 160.08 | |||||
| 39 | W10240470 | Panel, Console |
|
$ 177.61 | |||||
| 40 | W10034730 | Knob, Timer |
|
$ 25.16 | |||||
| 41 | WP8566018 | Dial, Timer (Replaces: 8566018) |
|
$ 53.59 | |||||
| 42 | W10034380 | Knob, Control |
|
$ 25.06 |
