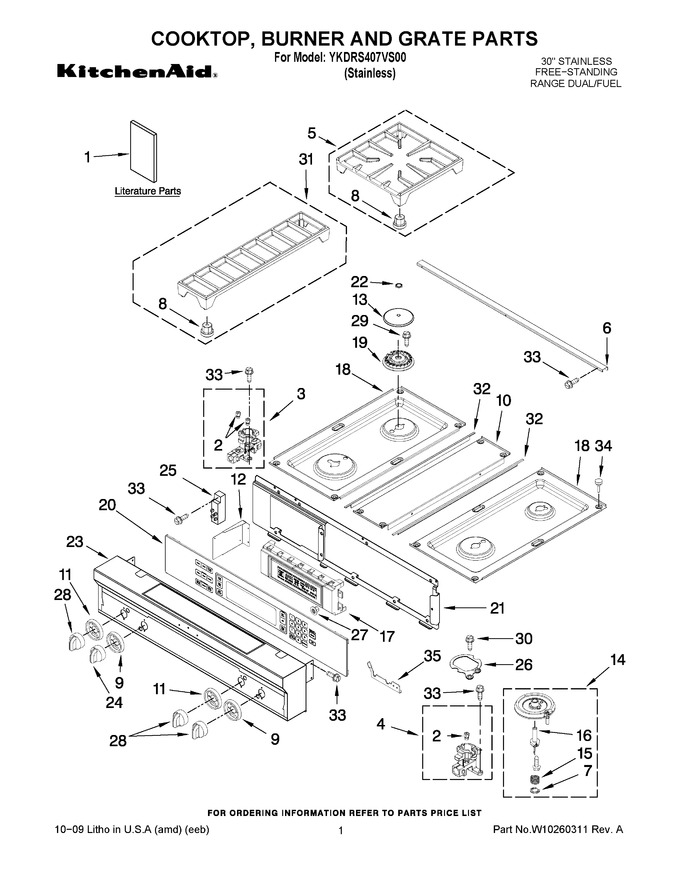

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10065852 | Safer Cooking Tips (french) |
|
- | |||||
| 1 | W10284339 | Tech Sheet (english) |
|
- | |||||
| 1 | W10284343 | Tech Sheet (french) |
|
- | |||||
| 1 | W10285550 | Use & Care Guide |
|
- | |||||
| 1 | W10284348 | Installation Instructions |
|
- | |||||
| 1 | 9762761 | Safer Cooking Tips (english) |
|
- | |||||
| 2 | W10791075 | Orifice (rr) (Replaces: W10282663) |
|
$ 103.68 | |||||
| 2 | W10160179 | Orifice (lf - High) |
|
$ 75.77 | |||||
| 2 | W10160185 | Orifice (lf - Low) |
|
$ 73.54 | |||||
| 2 | W10160232 | Orifice (lr & Rf) |
|
$ 45.77 | |||||
| 3 | WPW10160187 | Orifice Holder (dual - Lf) (Replaces: W10160187) |
|
$ 81.57 | |||||
| 4 | W10160234 | Orifice Holder (lr & Rf) |
|
$ 51.39 | |||||
| 4 | W10282659 | Orifice Holder (rr) |
|
$ 40.50 | |||||
| 5 | WPW10115928 | Grate, Burner (Replaces: W10115928) |
|
$ 201.41 | |||||
| 6 | W10269218 | Trim, Island |
|
$ 265.16 | |||||
| 7 | W10160825 | Clip, Electrode |
|
$ 52.85 | |||||
| 8 | W10185266 | Rubber, Foot (Replaces: 8286695) |
|
Immediately | $ 15.47 | ||||
| 9 | W10261510 | Bezel, Front |
|
$ 55.11 | |||||
| 10 | W10189105 | Filler, Cooktop |
|
- | |||||
| 11 | W10261512 | Bezel, Rear |
|
- | |||||
| 12 | W10367052 | Bracket, Spark Module (Replaces: W10137323) |
|
- | |||||
| 13 | WP8286816 | Cap, Burner (lf) (Replaces: 8286816) |
|
$ 110.74 | |||||
| 13 | WPW10115952 | Cap, Burner (rr) (Replaces: W10115952) |
|
$ 119.01 | |||||
| 13 | WPW10160229 | Cap, Burner (lr & Rf) (Replaces: W10160229) |
|
Immediately | $ 114.80 | ||||
| 14 | W10189082 | Base, Burner (lr & Rf) |
|
- | |||||
| 14 | WPW10320937 | Base, Burner (rr) (Replaces: W10250405) |
|
$ 157.22 | |||||
| 15 | 8286863 | Spring, Electrode (rr) |
|
$ 76.92 | |||||
| 15 | W10160826 | Spring, Electrode (lf, Lr & Rf) |
|
- | |||||
| 16 | W10250406 | Electrode (lf (dual)) |
|
$ 30.27 | |||||
| 16 | WPW10145991 | Electrode (rr) (Replaces: W10145991) |
|
Immediately | $ 84.47 | ||||
| 16 | WPW10160235 | Electrode (lr & Rf) (Replaces: W10160235) |
|
$ 42.08 | |||||
| 17 | WPW10298119 | Module, User Interface (Replaces: W10116111) |
|
$ 510.59 | |||||
| 18 | W10282192 | Cooktop (right) |
|
$ 349.88 | |||||
| 18 | W10189104 | Cooktop (left) |
|
$ 146.58 | |||||
| 19 | WPW10282515 | Burner Head (rr) (Replaces: W10282515) |
|
Immediately | $ 149.87 | ||||
| 19 | WPW10250459 | Burner Head (lf) (Replaces: W10250459) |
|
Immediately | $ 154.23 | ||||
| 19 | W10250458 | Burner Head (lr & Rf) |
|
- | |||||
| 20 | WPW10116104 | Keypad (Replaces: W10116104) |
|
Immediately | $ 372.51 | ||||
| 21 | W10250476 | Bracket User Interface |
|
- | |||||
| 22 | W10115953 | Nut, Burner |
|
$ 9.78 | |||||
| 23 | WPW10115889 | Assembly, Console (Replaces: W10115889) |
|
$ 426.20 | |||||
| 24 | W11244176 | Knob, Control (dual - Lf) (Replaces: W10250389) |
|
$ 78.37 | |||||
| 25 | WPW10475147 | Module, Spark (Replaces: 7431P038-60) |
|
Immediately | $ 238.24 | ||||
| 26 | 8286930 | Gasket, Orifice Holder |
|
$ 95.73 | |||||
| 27 | 7103P166-60 | Nut, Hex |
|
$ 18.56 | |||||
| 28 | W11177673 | Knob, Control (Replaces: W10250391) |
|
$ 90.55 | |||||
| 29 | W11404293 | Screw (Replaces: W10078270) |
|
Immediately | $ 14.74 | ||||
| 30 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 7.55 | ||||
| 31 | W11241670 | Grate, Filler (Replaces: W10115917) |
|
$ 237.21 | |||||
| 32 | W10271524 | Trim |
|
$ 212.34 | |||||
| 33 | W11233072 | Screw (Replaces: 7101P338-60) |
|
Immediately | $ 14.72 | ||||
| 34 | 4448520 | Bumper (12) |
|
$ 22.25 | |||||
| 35 | W10130760 | Bracket, Moving Console (right) |
|
$ 75.94 | |||||
| 35 | W10130759 | Bracket, Moving Console (left) |
|
$ 75.94 |
