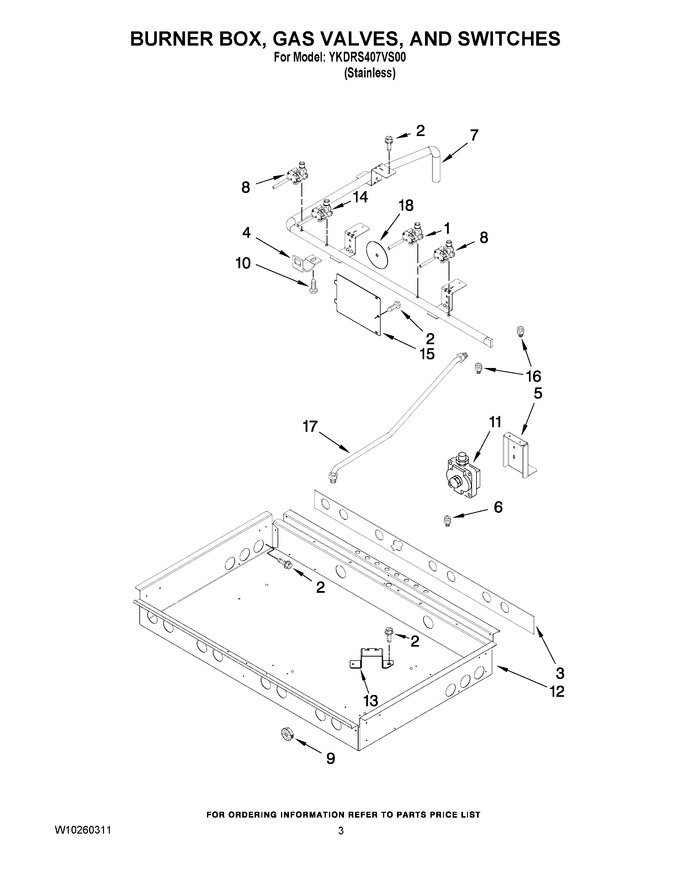

02 - Burner Box, Gas Valves, And Switches


03 - Oven Parts


04 - Chassis Parts


05 - Top Venting Parts


06 - Oven Door Parts


07 - Internal Oven Parts


08 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10385583		Valve, Gas (rr)   (Replaces: W10284547)			Immediately	$ 332.10
2	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
3	W11706804		Insulation, Burner Box   (Replaces: W10160204)		Appelez-nous	-
4	W10189107		Bracket, Valve		Appelez-nous	-
5	W10115850		Bracket, Pressure Regulator		Appelez-nous	-
6	4453115		Adapter, 1/2`` Female				$ 126.70
7	W10115891		Manifold		Appelez-nous	-
8	W10250407		Valve, Single (lr & Rf)		Appelez-nous	-
9	W10189097		Bushing, Burner Box				$ 8.00
10	W10189140		Screw, Valve Mtg				$ 6.82
11	WP9759091		Regulator, Pressure   (Replaces: 9759091)			Immediately	$ 340.43
12	W10276535		Burner Box   (Replaces: W10250426)		Appelez-nous	-
13	W10115929		Bracket, Burner (lf, Lr & Rf)		Appelez-nous	-
13	W10280796		Bracket, Burner ( Rr)		Appelez-nous	-
14	WPW10371235		Valve, Gas (lf)   (Replaces: W10250410)			Immediately	$ 268.41
15	W10115843		Cover, Ignition		Appelez-nous	-
16	4453116		Adapter, 1/2`` Male				$ 179.43
17	W10269191		Tube, Pressure Regulator				$ 217.69
18	W10189177		Seal, Switch Cover				$ 10.00
NI	W10280797		Tubing, Gas (rr)		Appelez-nous	-
NI	W10115908		Tubing, Gas (lr)		Appelez-nous	-
NI	W10115910		Tubing, Gas (rf & Lf)				$ 176.20
NI	W10115911		Tubing, Gas (lf - Simmer)				$ 188.34
