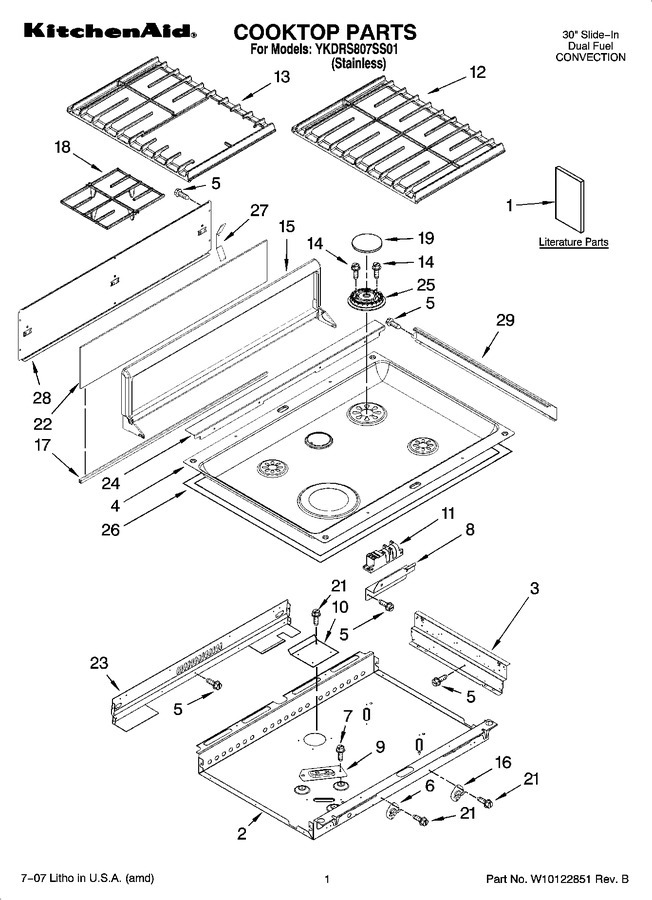

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9759133 | Safe Cooking Tips (french) |
|
- | |||||
| 1 | 9763467 | Guide Easy Set |
|
- | |||||
| 1 | W10118264 | Installation Instructions |
|
- | |||||
| 1 | W10118263 | Use & Care Guide |
|
- | |||||
| 1 | W10112148 | Tech Sheet |
|
- | |||||
| 1 | 9757680 | Anti-tip Instructions |
|
- | |||||
| 1 | 3191638 | Safe Cooking Tips (english) |
|
- | |||||
| 2 | W10110471 | Burner Box |
|
- | |||||
| 3 | 9761784 | Bracket, Mounting |
|
- | |||||
| 4 | W10106380 | Cooktop |
|
- | |||||
| 5 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.95 | ||||
| 6 | WP9757807 | Thermostat (Replaces: 9757807) |
|
Immediately | $ 112.22 | ||||
| 7 | WP12990527 | Screw (Replaces: 3400843) |
|
Immediately | $ 8.76 | ||||
| 8 | W10108030 | Bracket, Spark Module |
|
- | |||||
| 9 | 9763445 | Bracket, Burner |
|
- | |||||
| 10 | 8301084 | Shield, Heat |
|
- | |||||
| 11 | WPW10110491 | Module, Spark (Replaces: 8522426) |
|
Immediately | $ 322.41 | ||||
| 12 | 9761625CB | Grate, Burner (rh) |
|
$ 107.60 | |||||
| 13 | 9761624CB | Grate, Burner (lh) |
|
$ 105.20 | |||||
| 14 | WP3368921 | Screw (Replaces: 3368921) |
|
Immediately | $ 8.56 | ||||
| 15 | W10109770 | Backsplash |
|
- | |||||
| 16 | WP9759944 | Thermostat (Replaces: 9759944) |
|
Immediately | $ 135.08 | ||||
| 17 | 9763483BL | Gasket, Backsplash |
|
$ 104.52 | |||||
| 18 | WP9761557CB | Grate, Insert (Replaces: 9761557CB) |
|
Immediately | $ 170.40 | ||||
| 19 | 9761563CB | Cap, Burner (12.5k (rr)) |
|
Immediately | $ 108.30 | ||||
| 19 | WP8284669 | Cap, Burner (6k (rf, Lr)) (Replaces: 8284669) |
|
Immediately | $ 75.59 | ||||
| 21 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 7.55 | ||||
| 22 | 9761749BL | Glass, Backsplash |
|
$ 142.53 | |||||
| 23 | 9761755 | Cover, Cooktop Rear |
|
$ 53.38 | |||||
| 24 | WP9763436 | Cover, Top Rear (Replaces: 9763436) |
|
$ 149.07 | |||||
| 25 | WPW10406243 | Head, Burner (small (lr, Rf)) (Replaces: 8286181) |
|
Immediately | $ 39.08 | ||||
| 25 | WPW10406797 | Head, Burner (large (rr)) (Replaces: 8286182) |
|
$ 92.91 | |||||
| 26 | W10109920 | Gasket |
|
$ 43.42 | |||||
| 27 | 9762768 | Clip, Retainer |
|
$ 38.30 | |||||
| 28 | 9761577 | Panel, Backsplash |
|
- | |||||
| 29 | W10110679 | Trim, Cooktop (left) |
|
- | |||||
| 29 | W10110684 | Trim, Cooktop (right) |
|
- |
