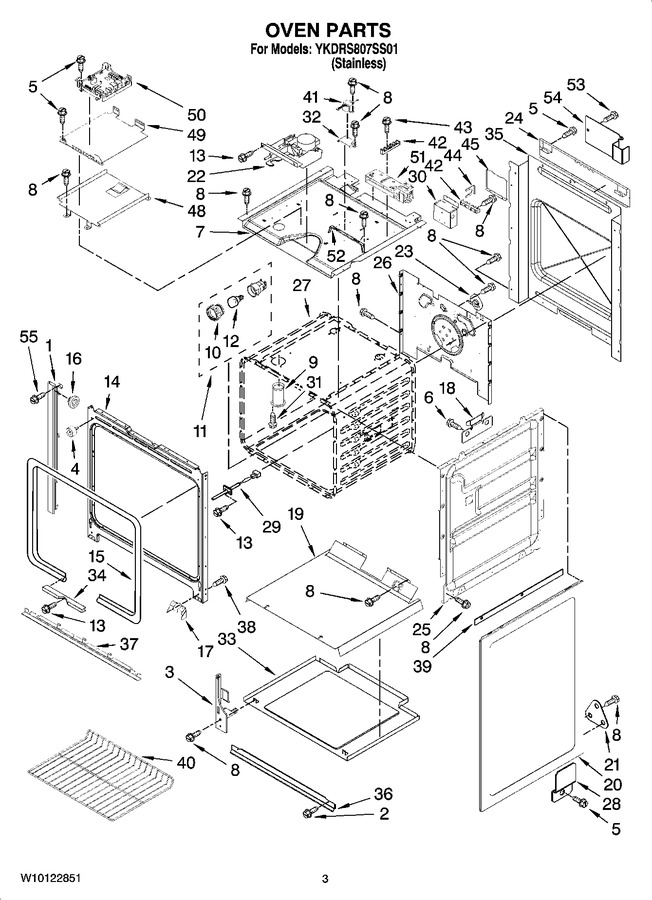

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10109560		Trim, Side (right)		Appelez-nous	-
1	W10109510		Trim, Side (left)		Appelez-nous	-
2	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 8.18
3	WP4455605		Hinge Receiver (left)   (Replaces: 4455605)			Immediately	$ 127.70
3	WP4455606		Hinge Receiver (right)   (Replaces: 4455606)			Immediately	$ 131.74
4	W10105790		Bumper, Door (2)				$ 7.41
5	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
6	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 7.55
7	8303099		Top Chassis				$ 70.97
8	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 122.46
10	W10067870		Lens, Light (2)				$ 65.50
11	WPW10734065		Oven Light, Assembly (2)   (Replaces: W10009930)				$ 101.46
12	WP4173175		Bulb, Light (2)   (Replaces: 4452166)			Immediately	$ 53.62
13	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
14	WPW10115831		Frame, Front   (Replaces: W10130368)				$ 351.89
15	W11675844		Gasket, Door   (Replaces: W10074200)			Immediately	$ 74.56
16	WP4448444		Grommet, Mounting Rail   (Replaces: 4448444)				$ 7.85
17	4452152		Bracket, Mounting				$ 35.18
18	9757685		Guide, Side Panel				$ 36.23
19	4451478		Support, Insulation				$ 54.10
20	9760723PB		Body, Side Black		Appelez-nous	-
21	9757461		Bracket, Side Panel				$ 37.11
22	WP9760889		Latch, Motorized   (Replaces: 9760888)			Immediately	$ 345.08
23	WP9759242		Thermostat   (Replaces: 9759242)			Immediately	$ 85.57
24	9757811		Brace, Side Panel		Appelez-nous	-
25	W10782197		Side, Chassis   (Replaces: 4455641)				$ 150.69
26	9759761		Back, Chassis		Appelez-nous	-
28	9759890		Clip, Side Panel				$ 9.71
29	WPW10131825		Sensor   (Replaces: 4455636)			Immediately	$ 95.83
30	9759987		Box, Terminal				$ 29.24
31	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
32	9757829		Bracket, Transformer		Appelez-nous	-
33	9759713		Base, Chassis				$ 100.19
34	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
35	9758583		Cover, Back				$ 215.30
36	9756481SS		Vent, Bottom Upper (s. Steel)		Appelez-nous	-
37	W10104870		Vent, Bottom Lower		Appelez-nous	-
38	WP4449743		Screw   (Replaces: 4449743)				$ 7.55
39	9759722		Insulation, Side Trim				$ 33.40
40	WPW10179152		Rack, Oven   (Replaces: 4448717)			Immediately	$ 119.61
41	WPW10111628		Transformr, Control   (Replaces: 9760212)				$ 297.39
42	WP8203546		Block, Terminal   (Replaces: 4449868)			Immediately	$ 30.13
43	W11684512		Screw   (Replaces: 3400080)				$ 14.81
44	WP9759877		Retainer, Strain Relief   (Replaces: 9759877)				$ 20.21
45	9759876		Cover, Box Terminal				$ 9.53
48	9756454		Bracket, Appliance Manager				$ 68.50
49	W10083460		Slide, Goc		Appelez-nous	-
50	9761801		Appliance Manager		Appelez-nous	-
51	W10810687		Blower   (Replaces: 9759320)			Immediately	$ 343.34
52	9756821		Support, Wiring		Appelez-nous	-
53	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
54	9759945		Standoff, Rear				$ 58.51
55	9756470		Insulation, Back				$ 68.08
55	WP3400805		Screw   (Replaces: 3400805)				$ 7.55
55	9756817		Insulation, Wrap				$ 76.03

    View Diagram in Separate Window       Print Part List
