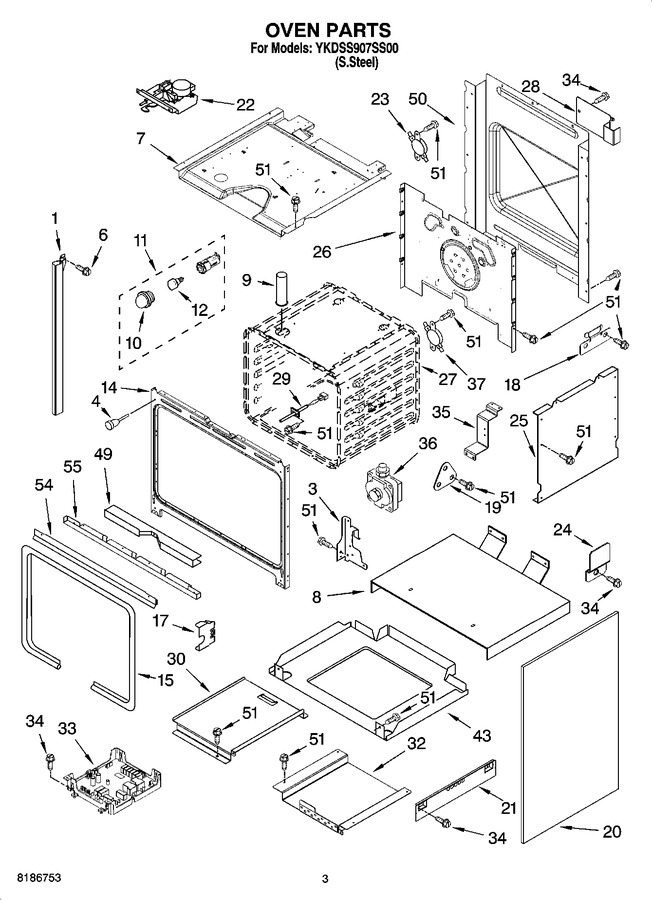

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10109510		Trim, Side (left)		Appelez-nous	-
1	W10109560		Trim, Side (right)		Appelez-nous	-
3	WP4455606		Hinge Receiver (right)   (Replaces: 4455606)			Immediately	$ 131.74
3	WP4455605		Hinge Receiver (left)   (Replaces: 4455605)			Immediately	$ 127.70
4	W10105790		Bumper, Door   (Replaces: 9760749)				$ 7.41
6	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 8.18
7	8303099		Top Chassis				$ 70.97
8	4451478		Support, Insulation				$ 54.10
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 122.46
10	W10067870		Lens, Light				$ 65.50
11	WPW10734065		Oven Light Assy   (Replaces: W10009930)				$ 101.46
12	WP4173175		Bulb, Light   (Replaces: 4452166)			Immediately	$ 53.62
14	WPW10115831		Frame, Front   (Replaces: 9760756)				$ 351.89
15	W11675844		Gasket, Door   (Replaces: W10074200)			Immediately	$ 74.56
17	4452152		Bracket, Mounting				$ 35.18
18	9757685		Guide, Side Panel				$ 36.23
19	9757461		Bracket, Side Panel				$ 37.11
20	9760723PB		Oven, Side Panel		Appelez-nous	-
21	9757811		Brace, Side Panel		Appelez-nous	-
22	WP9760889		Latch, Motorized   (Replaces: 9760888)			Immediately	$ 345.08
23	WP9757807		Thermostat Spst (230)   (Replaces: 9757807)			Immediately	$ 112.22
24	9759890		Clip, Side Panel				$ 9.71
25	W10782197		Side, Chassis (r.h. & L.h.)   (Replaces: 4455641)				$ 150.69
26	9759761		Back, Chassis		Appelez-nous	-
28	9759945		Standoff, Rear				$ 58.51
29	WPW10131825		Sensor   (Replaces: 4455636)			Immediately	$ 95.83
30	9756454		Bracket, Goc				$ 68.50
32	W10083460		Slide, Goc		Appelez-nous	-
33	9761801		Central, Appliance		Appelez-nous	-
34	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
35	9763491		Brkt, Regulator		Appelez-nous	-
36	WP9759091		Regulator, Pressure   (Replaces: 9759091)			Immediately	$ 340.43
37	WP9759242		Thermostat (tod) (temp.) Spst 130c   (Replaces: 9759242)			Immediately	$ 85.57
43	9759713		Base, Chassis				$ 100.19
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
50	9758583		Cover, Back				$ 215.30
51	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
54	9756481SS		Vent, Bottom Upper (s. Steel)		Appelez-nous	-
55	9756470		Insulation, Back				$ 68.08
55	W10104870		Trim, Btm Vent		Appelez-nous	-
55	9756817		Insulation, Wrap				$ 76.03
