Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10810687 Blower   (Replaces: 9759320) In-Stock Immediately $ 343.34

2 W10491987 Block, Foam   (Replaces: 4451758) In-Stock Immediately $ 8.14

5 WP8203546 Block, Terminal   (Replaces: 4449868) In-Stock Immediately $ 30.13

6 3196538 Screw Appelez-nous -
7 9757829 Bracket, Transfrmr Appelez-nous -
8 WPW10111628 Transformer   (Replaces: 9760212) Special Order $ 297.39

9 WP3196557 Screw   (Replaces: 3196537) In-Stock Immediately $ 7.95

11 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 7.55

12 4451759 Vent, Exhaust Special Order $ 105.01

14 4455177 Elbow, Vent- Bottom Special Order $ 11.39

15 4455178 Elbow, Vent- Top Special Order $ 15.52

18 9759987 Box, Terminal Special Order $ 29.24

19 9759876 Cover, Term Box Special Order $ 9.53

20 W10491985 Screw   (Replaces: 3196160) In-Stock Immediately $ 7.55

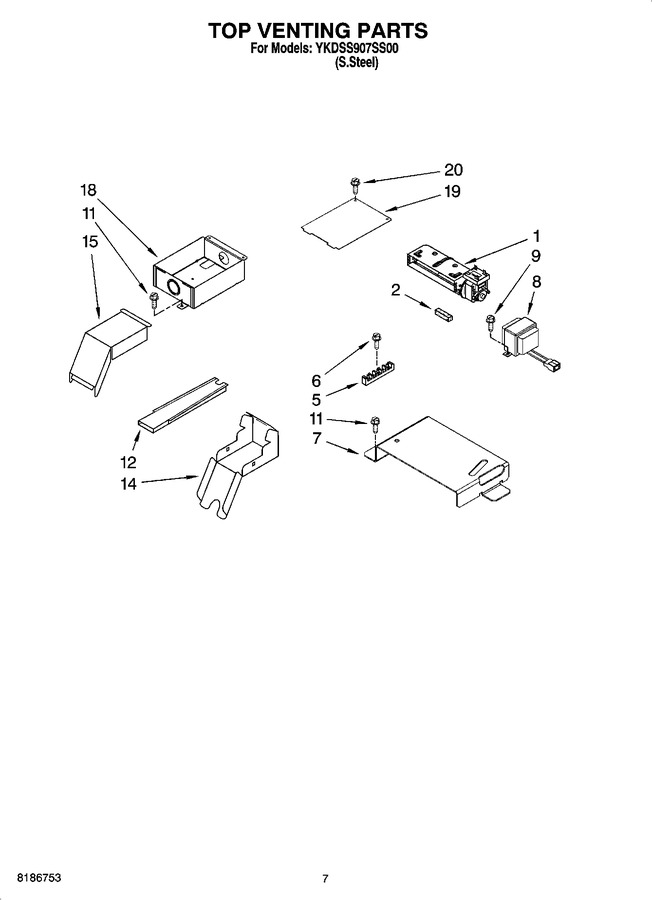

    View Diagram in Separate Window     Print Icon   Print Part List
