SELECT A DIAGRAM

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8576353 Burner Assembly


05 - Door Parts, Optional Parts (not Included)

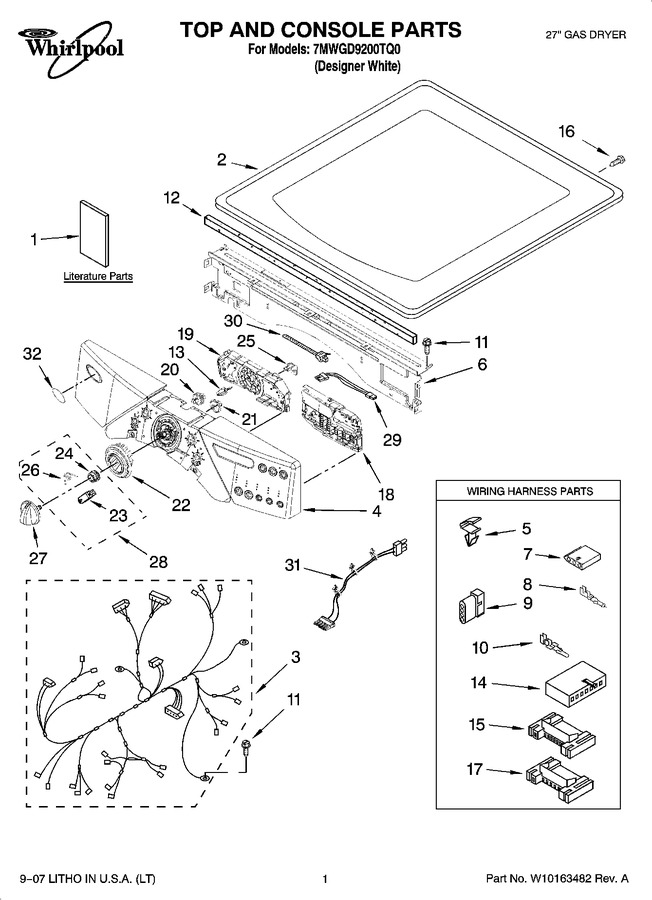

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10140907		Tech Sheet		Appelez-nous	-
1	W10140905		Guide, Quick Start		Appelez-nous	-
1	W10140906		Use & Care Guide		Appelez-nous	-
2	3980634		Top		Appelez-nous	-
3	8579737		Harness, Main				$ 123.10
4	W10116694		Panel, Console (includes Item: 20,21.22,27,28)		Appelez-nous	-
5	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 7.79
6	W10006840		Bracket, Console (includes Item.12)		Appelez-nous	-
7	353424		Connector, Sensor				$ 18.95
8	WP94614		Terminal (female)   (Replaces: 94614)				$ 7.67
9	3936144		Plug, Terminal				$ 20.21
10	94613		Terminal		Appelez-nous	-
11	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.79
12	W10112267		Foam-seal Control Bracket				$ 92.89
13	W10012480		Array-power   (Replaces: W10030070)				$ 16.33
14	3936150		Connector, 7-circuit				$ 77.60
15	3395683		Connector (motor)			Immediately	$ 51.86
16	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.79
17	2203186		Connector, 5-circuit				$ 12.55
18	W10031420		User Interface (right)		Appelez-nous	-
19	W10031410		User Interface (center) (includes Item 13)				$ 295.53
20	W10012430		Encoder-wheel				$ 20.81
21	W10012440		Retainer-snap				$ 12.36
22	W10012410		Knob, Light Ring (includes: Item 21)				$ 21.84
23	W10012810		Rast, Wheel Assy. (service Only With Item. 28)		Appelez-nous	-
24	W10012450		Detent Wheel (service Only With Illus. 28)		Appelez-nous	-
25	W10112268		Clip-harness (4)		Appelez-nous	-
26	W10012820		Knob, Spring (2) (service Only With Item 28)		Appelez-nous	-
27	W10116701		Knob, Control				$ 34.16
28	280230		Encoder, Wheel Kit (includes Items: 23, 24, & 26)				$ 141.57
29	W10095960		Harness, Communication				$ 142.18
30	WP3391018		Tie, Cable   (Replaces: 3391018)				$ 31.84
31	W10110976		Cube, Cable		Appelez-nous	-
32	W10117943		Badge		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
