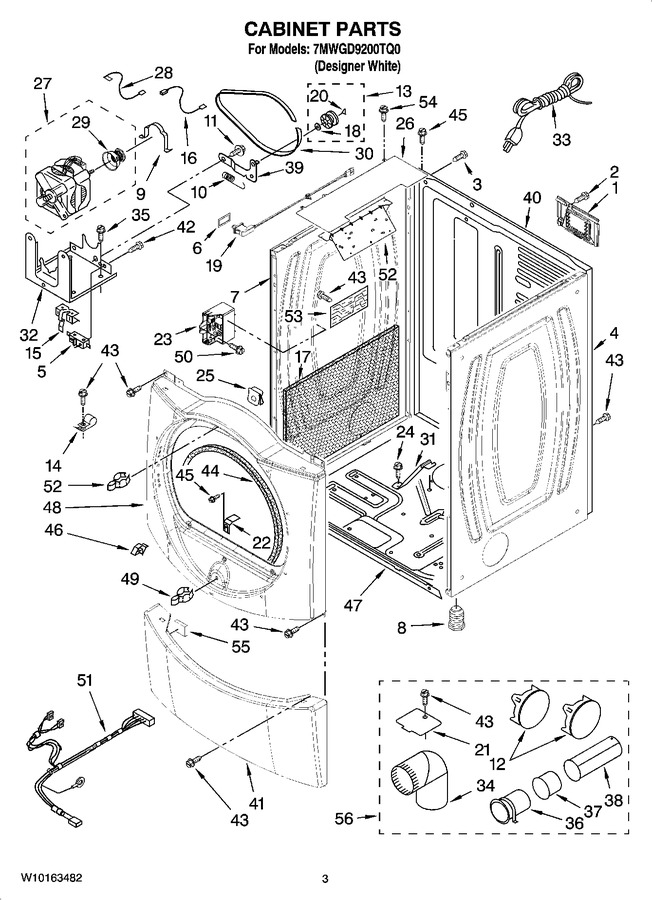

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8576353 Burner Assembly


05 - Door Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10819767		Cover, Terminal Block   (Replaces: 8317340)		Appelez-nous	-
2	WP90767		Screw, 8-18 X 3/8   (Replaces: 3390814)			Immediately	$ 7.82
3	W10850756		Screw, 10-32 X 5/8 (ground)   (Replaces: 697776)				$ 7.76
4	W10139003		Panel, Side (r.h.)		Appelez-nous	-
5	279782		Switch, Broken Belt   (Replaces: 3394881)			Immediately	$ 54.44
6	W10118614		Seal, Door Switch		Appelez-nous	-
7	W10138989		Panel, Side (l.h.)		Appelez-nous	-
8	49621		Foot - Optional (extended Length Package Of 2 ) (not Included)   (Replaces: 279810)			Immediately	$ 8.55
8	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 8.55
9	WP660658		Clamp, Motor (2)   (Replaces: 660658)				$ 7.83
10	WPW10446781		Spring, Idler   (Replaces: 3387374)			Immediately	$ 24.57
11	WP3389420		Retainer, Idler   (Replaces: 3389420)				$ 8.02
12	W10470674		Plug, Multivent   (Replaces: 697750)			Immediately	$ 76.65
13	279640		Pulley Assembly   (Replaces: 3388672)			Immediately	$ 32.51
14	3978776		Bracket, Gas Pipe		Appelez-nous	-
15	WP8066120		Lever, Snap Switch   (Replaces: 8066120)			Immediately	$ 33.11
16	3394081		Wire, Belt Switch				$ 37.57
17	W10128772		Sound Panel		Appelez-nous	-
18	WP233520		Washer, Thrust   (Replaces: 233520)			Immediately	$ 7.96
19	8574875		Assembly, Door Switch				$ 125.92
20	WPW10121334		Tri-ring   (Replaces: W10121334)			Immediately	$ 7.19
21	WPW10354249		Cover-plate   (Replaces: 8066115)				$ 8.96
22	8529053		Ramp, Door				$ 51.37
23	3407228		Power Cube				$ 128.68
24	WP693995		Screw 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 7.19
25	62825		Clip-s Type				$ 8.11
26	W10118470		Cover, Control Board		Appelez-nous	-
27	279787		Motor Assembly 60 Hz.   (Replaces: 8538263)			Immediately	$ 235.65
28	3398948		Wire, Jumper (broken Belt Switch)				$ 61.58
29	W10837625		Pulley, 60 Hz.   (Replaces: 8578220)			Immediately	$ 12.16
30	661570V		Belt, Drive   (Replaces: 3387610)			Immediately	$ 32.81
31	W10181903		Bracket, Burner   (Replaces: 8529757)		Appelez-nous	-
32	WP3387118		Bracket, Motor   (Replaces: 3387118)				$ 133.59
33	W11628810		Cord, Power   (Replaces: 3401401)				$ 97.05
34	WPW10416072		4`` - 90 Elbow   (Replaces: 49026)				$ 26.82
35	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
36	WP8563747		Exhaust Pipe & Bracket   (Replaces: 8563747)				$ 91.38
37	WPW10331278		Exhaust Pipe (short)   (Replaces: 8563750)				$ 78.95
38	WP8563749		Exhaust Pipe (long)   (Replaces: 8563749)				$ 88.80
39	W10837240		Idler Bracket   (Replaces: 3388674)			Immediately	$ 35.78
40	W10133207		Panel, Rear		Appelez-nous	-
41	W10116271		Panel, Toe		Appelez-nous	-
42	WP98129		Screw, 6/20 X 1 1/16   (Replaces: 98129)				$ 7.56
43	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.79
44	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
45	WP308685		Screw, 10-16 X 1/2   (Replaces: 3393008)			Immediately	$ 7.87
46	W11295573		Clip, Toe Panel   (Replaces: 8519459)				$ 21.11
47	8519207		Base, Cabinet		Appelez-nous	-
48	8578388		Front Panel (includes Illus. 44)				$ 54.86
49	279570		Strike, Door(2)   (Replaces: 696144)			Immediately	$ 8.89
50	WP90767		Screw, 8-18 X 3/8   (Replaces: 90767)			Immediately	$ 7.82
51	W10181464		Harness, Digital Interface   (Replaces: 8579736)		Appelez-nous	-
52	WP8563727		Bracket, Control   (Replaces: 8563727)				$ 171.13
53	W10110641		Control Board				$ 305.56
54	8281225		Screw, 8-18 X 3/4		Appelez-nous	-
55	3389682		Space-toe Panel				$ 8.79
56	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting) White   (Replaces: 279818)			Immediately	$ 76.65
