Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 9759133 Safer Cooking Tips Microwave Appelez-nous -
1 4448687 Easy Set Guide (french) Appelez-nous -
1 8300650 Installation Instructions Appelez-nous -
1 3191638 Safer Cooking Tips Appelez-nous -
1 4456573 Use & Care Guide (english) Appelez-nous -
1 4456576 Use & Care Guide (french) Appelez-nous -
1 8300890 Use & Care Guide (microwave) (english) Appelez-nous -
1 8300889 Use & Care Guide (microwave) (french) Appelez-nous -
1 4449066 Cookbook (t/c Oven) Appelez-nous -
1 8302002 Tech Sheet (english) Appelez-nous -
1 8302003 Tech Sheet (french) Appelez-nous -
1 4449264 Easy Set Guide (english) Appelez-nous -
2 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 7.55

2 4450812 Safety Switch (oven Temp) Special Order $ 177.31

3 98005642 Clip, Bulb   (Replaces: 313382) In-Stock Immediately $ 87.08

4 4448520 Bumper, Door Special Order $ 22.25

5 4452490 Spacer, Foam Special Order $ 34.83

6 4452083 Trim, Side (rh) Appelez-nous -
6 4452084 Trim, Side (lh) Appelez-nous -
6 WP694091 Screw   (Replaces: 694091) Special Order $ 7.55

7 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 7.55

7 4455865 Top, Chassis Appelez-nous -
9 W11233072 Screw   (Replaces: 3196176) In-Stock Immediately $ 14.72

9 W10861715 Tube, Vent   (Replaces: 4452158) Special Order $ 122.46

10 4452163 Lens, Light Special Order $ 12.33

11 4449748 Screw Special Order $ 14.23

11 WP4448972 Oven Light Assy   (Replaces: 4448972) Special Order $ 114.87

12 WP4452164 Bulb, Light   (Replaces: 4452164) In-Stock Immediately $ 70.69

13 4452337 Insulation Bottom Vent Appelez-nous -
14 WP4450118 Nut   (Replaces: 4450118) Special Order $ 8.78

14 WP4449040 Screw   (Replaces: 4449040) Special Order $ 6.78

14 9759060 Frame, Front Appelez-nous -
15 W11675844 Gasket, Door   (Replaces: 4455382) In-Stock Immediately $ 74.56

16 4452152 Bracket, Mounting Special Order $ 35.18

19 4451478 Support, Insulation Special Order $ 54.10

20 4451605 Cap, Spacer Special Order $ 38.55

21 WP4449154 Screw   (Replaces: 4449154) Special Order $ 8.16

21 4450583 Rail, Side (right Side) Appelez-nous -
21 4450584 Rail, Side (left Side) Appelez-nous -
21 WP4448444 Grommet   (Replaces: 4448444) Special Order $ 7.85

25 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 7.55

25 W10782197 Side, Chassis (r.h. & L.h.)   (Replaces: 4455641) Special Order $ 150.69

26 4452234 Back, Chassis Appelez-nous -
26 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 7.55

29 WPW10131825 Sensor   (Replaces: 4455636) In-Stock Immediately $ 105.00

29 WP4449154 Screw   (Replaces: 4449154) Special Order $ 8.16

30 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 7.55

30 4449845 Bracket-support Appelez-nous -
33 9760677 Deflector, Vent Special Order $ 155.46

34 WP4450038 Screw   (Replaces: 4450038) Special Order $ 8.30

34 8302592 Vent, Center Special Order $ 63.42

37 WP9759243 Thermostat (tod) (temp.) Spst   (Replaces: 9759243) In-Stock Immediately $ 59.56

37 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 7.55

43 9759713 Base, Chassis Special Order $ 100.19

43 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 7.55

49 WP4449154 Screw   (Replaces: 4449154) Special Order $ 8.16

49 WP4448933 Retainer, Gasket   (Replaces: 4448933) Special Order $ 9.30

50 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 7.55

50 WP4451747 Cover-back   (Replaces: 4451747) Special Order $ 150.07

51 4455147 Trim, Bottom Special Order $ 96.52

52 4451756 Chassis, Back Appelez-nous -
53 WP4455605 Hinge Receiver (left)   (Replaces: 4455605) In-Stock Immediately $ 127.70

53 WP4455606 Hinge Receiver (right)   (Replaces: 4455606) In-Stock Immediately $ 131.74

54 WP9752759 Relay, Double Line Break   (Replaces: 9752759) In-Stock Immediately $ 201.17

54 4451393 Bracket, Relay Appelez-nous -
55 4452492 Insulation, Convection Top Appelez-nous -
56 4450365 Insulation, Back Special Order $ 70.95

56 4452491 Insulation, Convection Grill Appelez-nous -
56 W11684730 Insulation, Wrap   (Replaces: 4449316) Special Order $ 124.85


    View Diagram in Separate Window     Print Icon   Print Part List

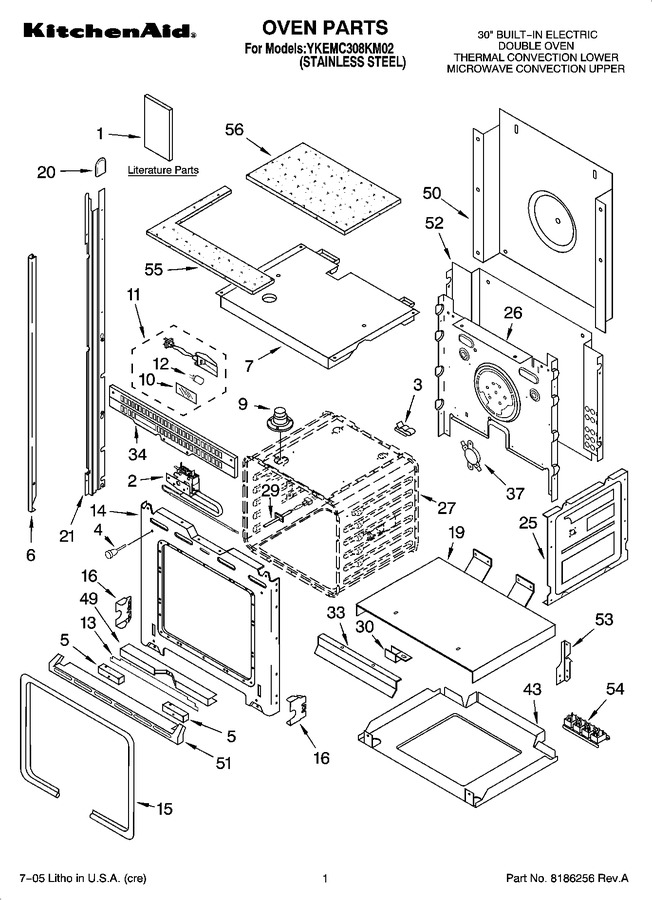

Diagram for YKEMC308KM02
