Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4451791 Control Panel Appelez-nous -
2 WP3400832 Screw   (Replaces: 3400832) In-Stock Immediately $ 8.18

2 WP4449745 Screw   (Replaces: 4449745) Special Order $ 7.98

2 8302660 Switch, Membrane Appelez-nous -
5 4452260 Spacer, Foam Appelez-nous -
7 8302346 Assy, Control Special Order $ 530.26

7 3400406 Screw (7) 4-40 X .375 Appelez-nous -
7 WP3400832 Screw (2)   (Replaces: 3400832) In-Stock Immediately $ 8.18

8 4451592 Filter, R.f. Special Order $ 35.89

9 4451632 Bracket, Filter Appelez-nous -
10 4455147 Vent, Control Panel Special Order $ 96.52


    View Diagram in Separate Window     Print Icon   Print Part List

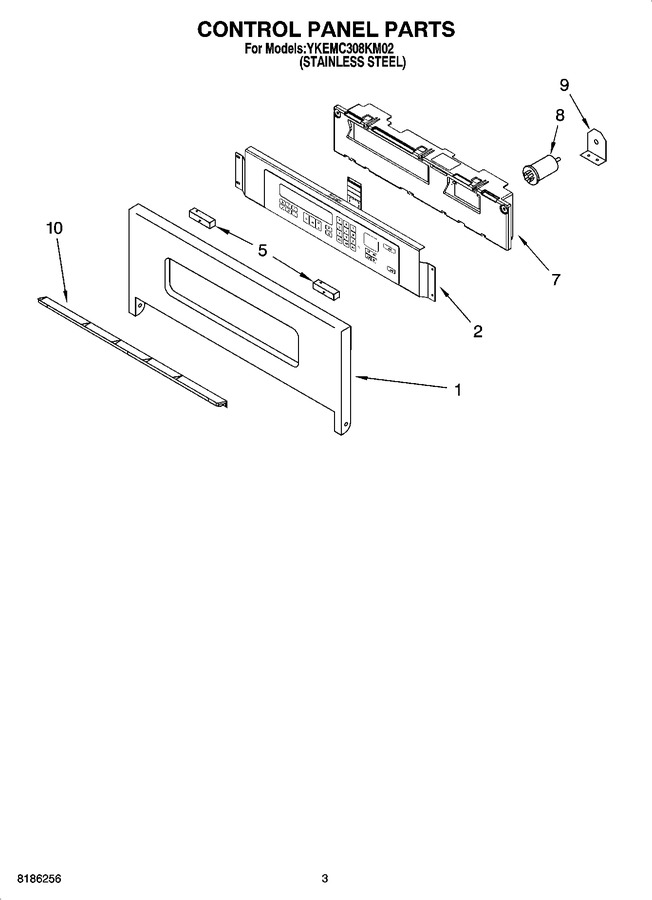

Diagram for YKEMC308KM02
